Ex Series Ex450
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-198251123101 TIE-ROD 1
2 CY-198240-18120 TIRE-ROD END KIT(LR) 1
3 CY-194990-22831 NUT,L. 17 1
4 CY-194730-57220 COVER, DUST 1
5 CY-24761-060000 NIPPLE MT6X1, GREASE 1
6 CY-198240-12590 NUT 12 1
7 CY-22417-300250 COTTER PIN 3.0X 25 1
8 CY-198240-18130 TIRE-ROD END KIT RL 1
9 CY-194990-22841 NUT,R. 17 1
10 CY-194730-57220 COVER, DUST 1
11 CY-24761-060000 NIPPLE MT6X1, GREASE 1
12 CY-198240-12590 NUT 12 1
13 CY-22417-300250 COTTER PIN 3.0X 25 1
54

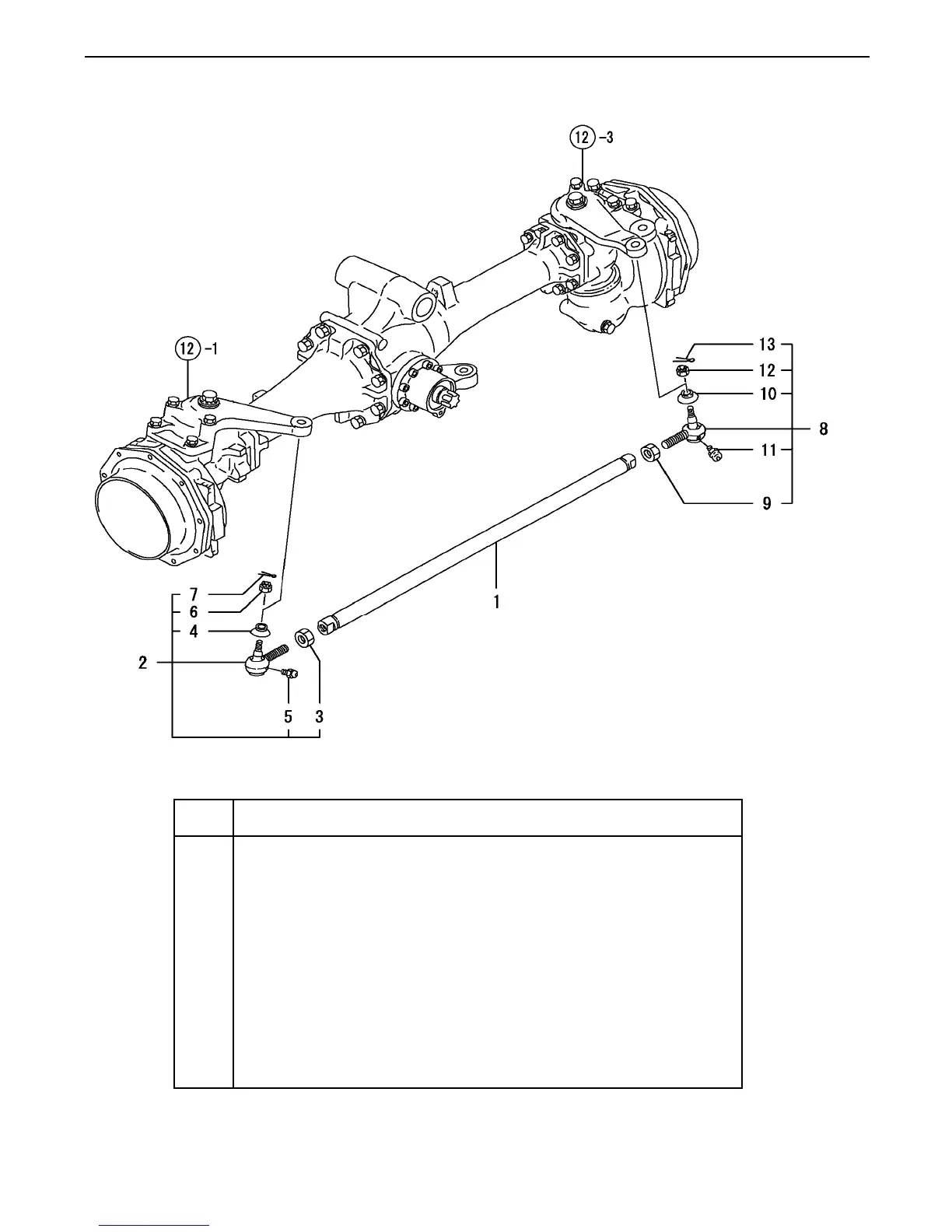

FIG. 13. TIE ROD
