Cub Cadet Ex450 - Driver Seat

Ex Series Ex450
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-194990-22140 NUT W/WASHER 8 4
2 CY-194990-22140 NUT W/WASHER 8 6
3 CY-1A8160-52320 BKT(SEAT SPRING 1
4 CY-198220-52410 KEY 2
5 CY-198220-52420 SPRING 2
6 CY-198240-63110 SEAT 1
7 CY-198220-63120 PIN, HINGE 1
8 CY-198220-63150 ADJUSTER, BELT 1
9 CY-198220-63160 ADJUSTER, BELT 1
10 CY-1A8160-63200 LOWER BRACKET,SEAT 1
11 CY-198220-63240 RUBBER 2
12 CY-198220-63260 SPRING, CUSHION 2
13 CY-198220-63270 RUBBER, CUSHION 2
14 CY-198220-63280 COLLAR, SEAT 2
15 CY-1E6213-64490 WASHER 8.5X22X2.3 2
16 CY-22351-030025 SPRING PIN 3X25 2
17 CY-22372-120000 SNAP PIN 12 2
18 CY-26106-080702 BOLT M 8X 70 PLATED 2
161

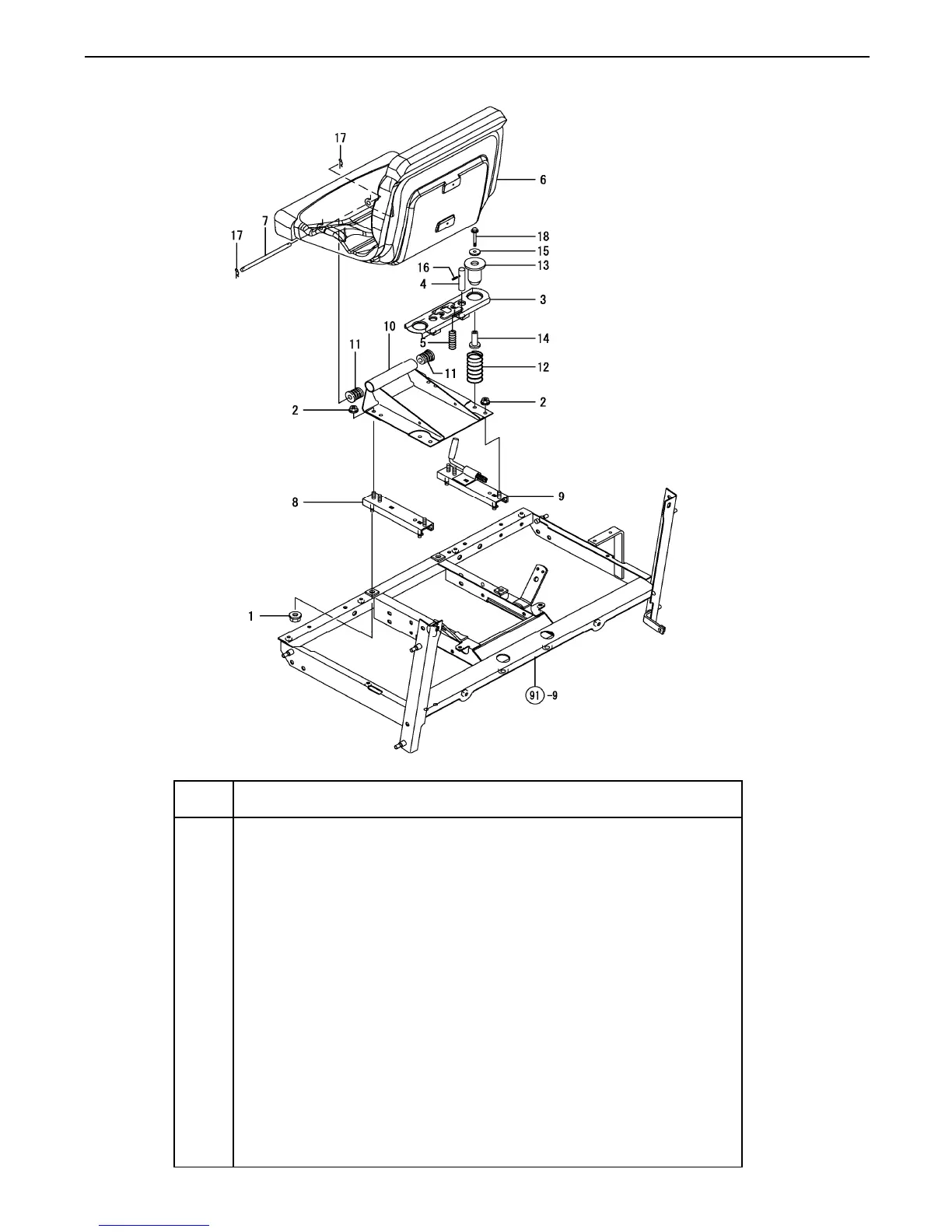

FIG. 93. DRIVER SEAT
Copyright 2008 Cub Cadet Yanmar LLC
