Cub Cadet Ex450 User Manual

Ex Series Ex450
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-729008-01500 HOUSING ASSY, GEAR 1
3 CY-119934-01800 SEAL, OIL 1
4 CY-129008-01520 FLANGE, GEAR CASE 1
5 CY-119802-01561 STUD, M8X25 3
6 CY-129150-01580 STUD 8 X 30 1
7 CY-124160-01751 COVER, FILLER 1
8 CY-124240-01871 COVER, PUMP 1
9 CY-129795-01950 PIPE, KNOCK 2
10 CY-119609-32040 O-RING P16 2
11 CY-121850-51960 O-RING, F.I.PUMP 1
12 CY-22190-080002 SEAL WASHER 8S 4
13 CY-22190-080002 SEAL WASHER 8S 1
14 CY-24311-000320 O-RING 1A P-32.0 1
15 CY-26106-080162 BOLT M 8X 16 PLATED 4
16 CY-26106-080162 BOLT M 8X 16 PLATED 3
17 CY-26106-080302 BOLT M 8X 30 PLATED 1
18 CY-26106-080552 BOLT M 8X 55 PLATED 10
19 CY-26106-080852 BOLT M 8X 85 PLATED 3
20 CY-26306-080002 NUT, M8 3
21 CY-129150-91400 GEAR, UNIT 1
23 CY-24341-000240 O-RING 1A S-24.0 1
24 CY-26106-060162 BOLT M 6X 16 PLATED 2
6

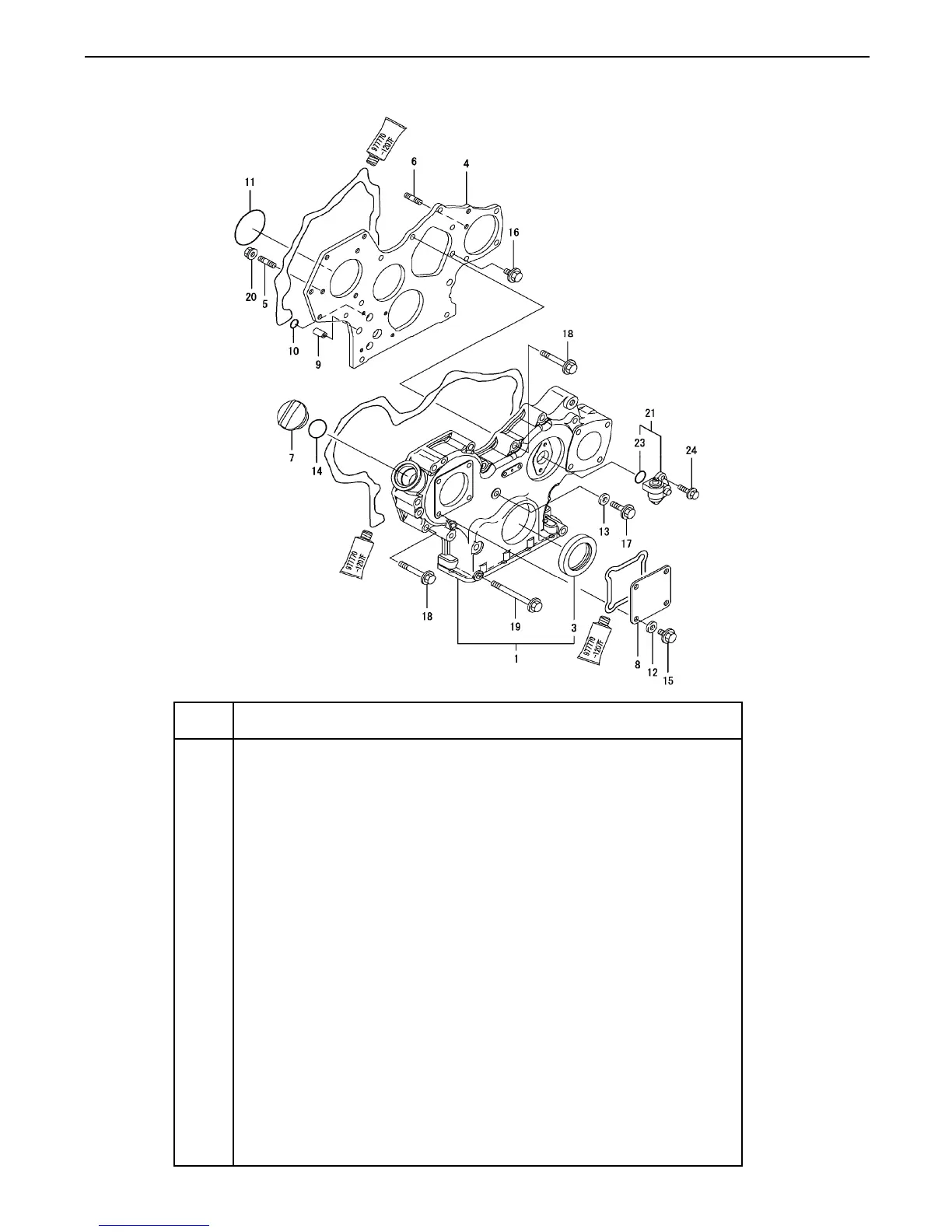

FIG. 2. GEAR HOUSING
