Cub Cadet Ex450

Ex Series Ex450
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-194321-13680 SPACER 85X1 2
2 CY-198251137101 CASE,SIDE GEAR 2
3 CY-198401-13720 SHIM SET 1
4 CY-194641-13760 SEAL, OIL 2
5 CY-198401137701 CASE 2
6 CY-194641-13780 SLEEVE SI 2
7 CY-194641-13790 SEAL TC6Y 558514 2
8 CY-198401-13790 SUPPORT,BEARING 4
9 CY-198401138001 BOX, FRONT GEAR 1
10 CY-198401137501 CASE 1
11 CY-198401138501 BOX R,FRONT GEAR 1
12 CY-194180-32670 SEAL TC6Y 80 105 15 2
13 CY-1A1120-68070 CAP 8, SCREW 6
14 CY-23491-140002 PLUG 14 2
15 CY-23876-010000 PLUG PT1/8,SCREW 2
16 CY-24101-062094 BALL BEARING 4
17 CY-24311-000160 O-RING 1A P-16.0 2
18 CY-24321-002200 O-RING 220-G 2
19 CY-26013-080252 BOLT M 8X 25 8
20 CY-26013-100252 BOLT W/WASHER M10X25 18
60

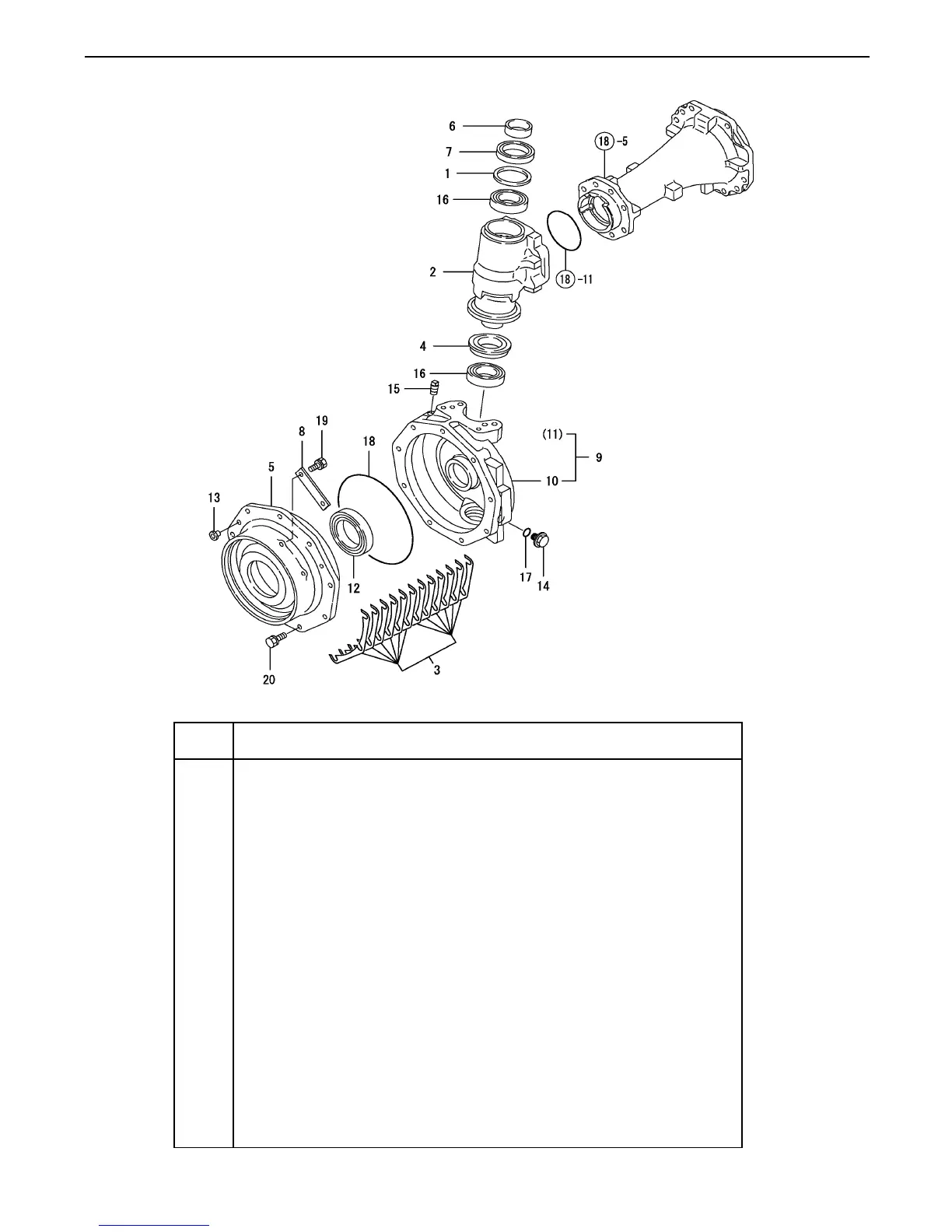

FIG. 19. FRONT GEAR CASE
