Cub Cadet Ex450

Ex Series Ex450
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-198240-04710 BASE, PIPE CLAMP 3
2 CY-198240-04750 PIPE, FUEL OIL 1
3 CY-198240-04760 PIPE, FUEL OIL 1
4 CY-198240-04770 BRACKET,FUEL PIPE 1
5 CY-198327-04840 CLAMP 1
6 CY-194180-17770 CLAMP, PIPE 2
7 CY-194170-51210 GROMMET 25 3
8 CY-198448-51910 CLIP,BAND 1
9 CY-124766-59050 CLAMP 12 8
10 CY-23980-730300 FUEL PIPE 7.3X300 1
11 CY-23980-730420 FUEL PIPE 7.3X 420 1
12 CY-23980-730450 FUEL PIPE 7.3X450 1
13 CY-23980-731200 FUEL PIPE 7.3X1200 1
14 CY-26106-080162 BOLT M 8X 16 PLATED 1
15 CY-26106-080252 BOLT M 8X 25 PLATED 2
16 CY-26106-080302 BOLT M 8X 30 PLATED 1
48

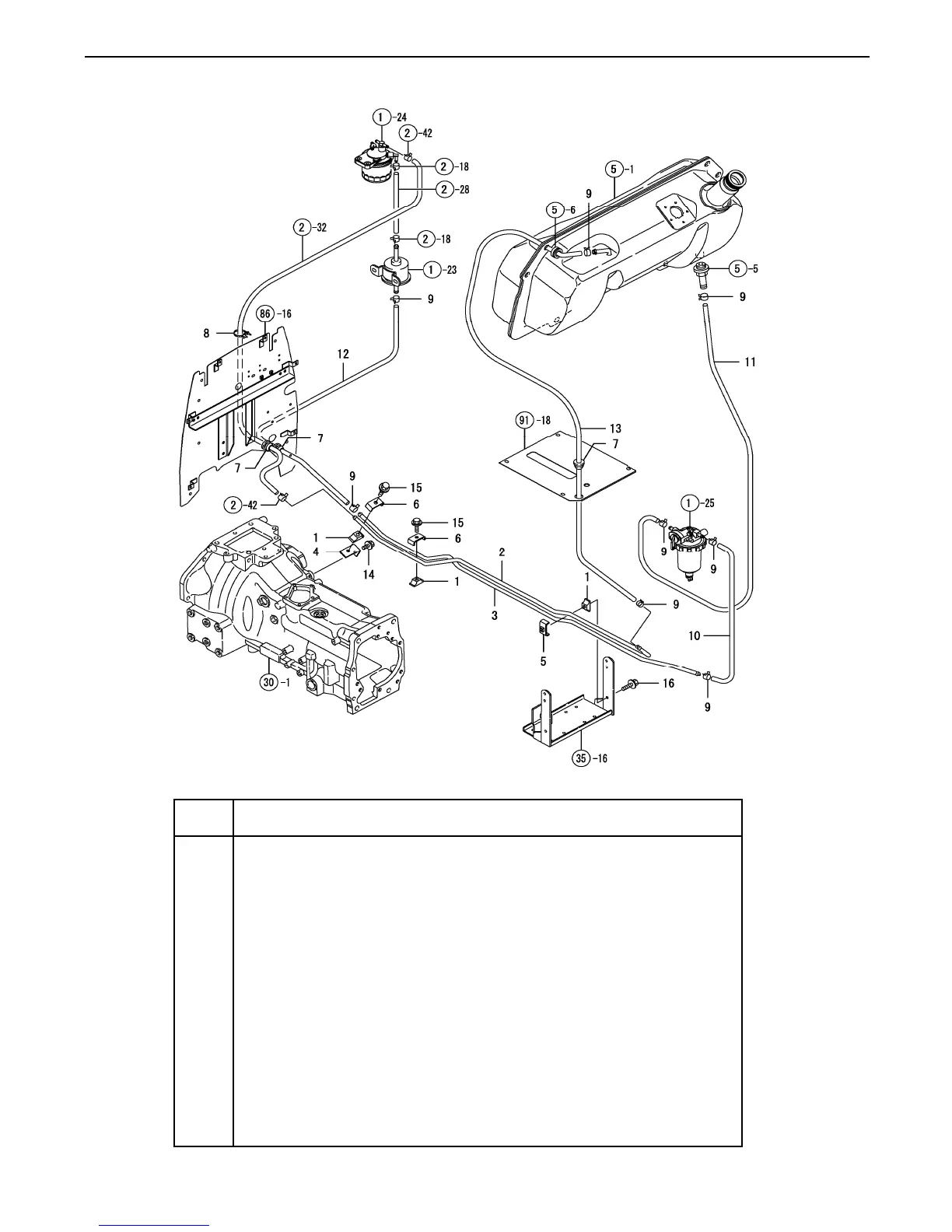

FIG. 7. FUEL PIPE
