Transmitted (TX)
Click the Transmitted (TX) link in the Packets folder of the Monitoring menu to view the following graph of packets
transmitted from the Switch. To select a port to view these statistics for, use the Port pull down menu. The user may also use the
real-time graphic of the Switch at the top of the web page by simply clicking on a port.

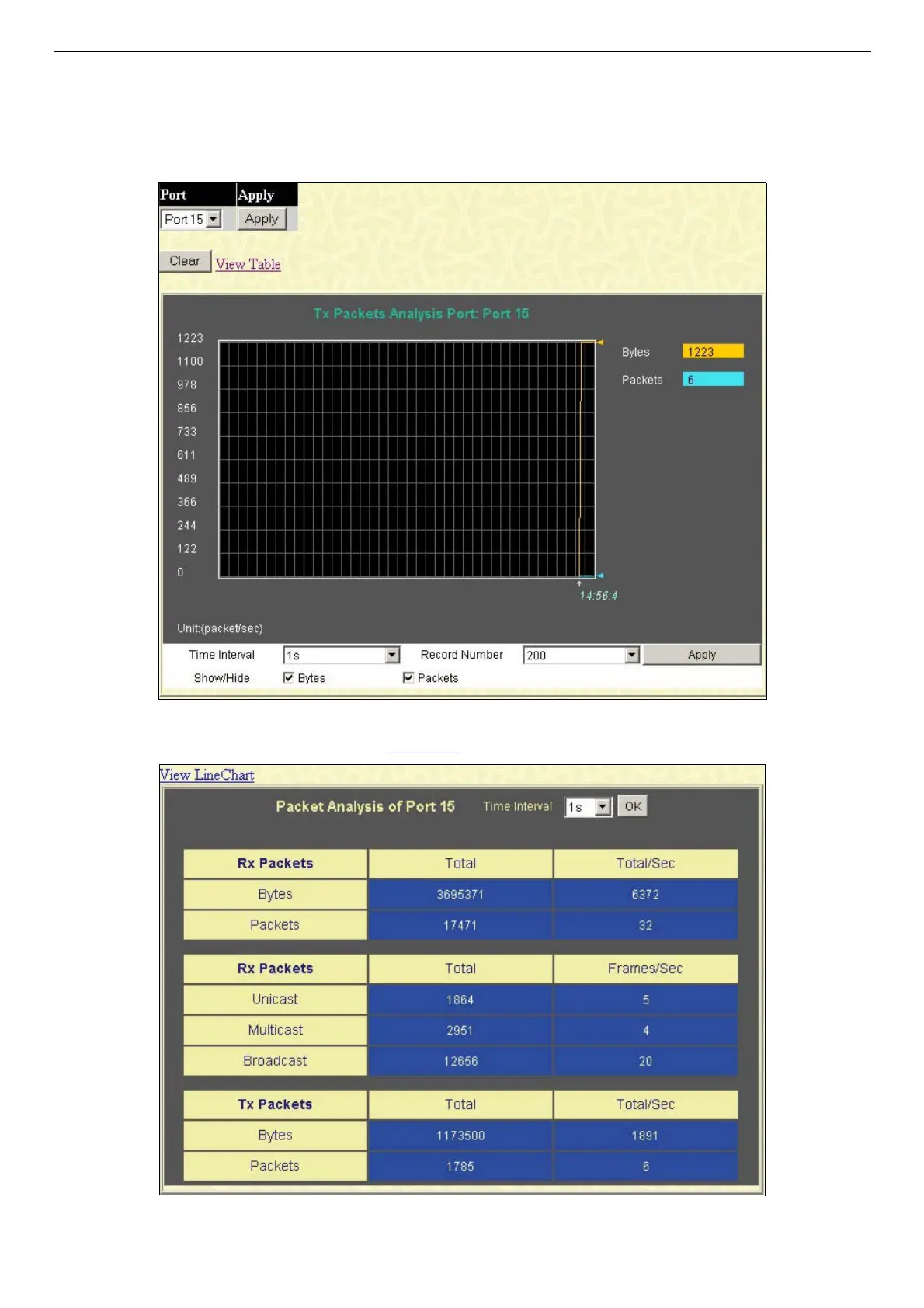

Figure 11- 7. Tx Packets Analysis window (line graph for Bytes and Packets)
To view the Transmitted (TX) Table, click the link View Table
, which will show the following table:
Figure 11- 8. Tx Packets Analysis window (table for Bytes and Packets)
