DES-3010F/DES-3010FL/DES-3010G/DES-3018/DES-3026 Fast Ethernet Switch Manual
Front-Panel Components and LED Indicators
The front panel of the Switch consists of LED indicators for Power, Console, Link/Act and Speed, 8/16/24 Fast-Ethernet, ports,
two optional module ports (DES-3018/3026 only), a gigabit 1000BASE-T copper port (DES-3010F/G), a 100BASE-FX Ethernet
port (DES-3010F, DES-3010FL) and a SFP Gigabit Ethernet port (DES-3010G). Also, the front panel has a RS-232
communication port.

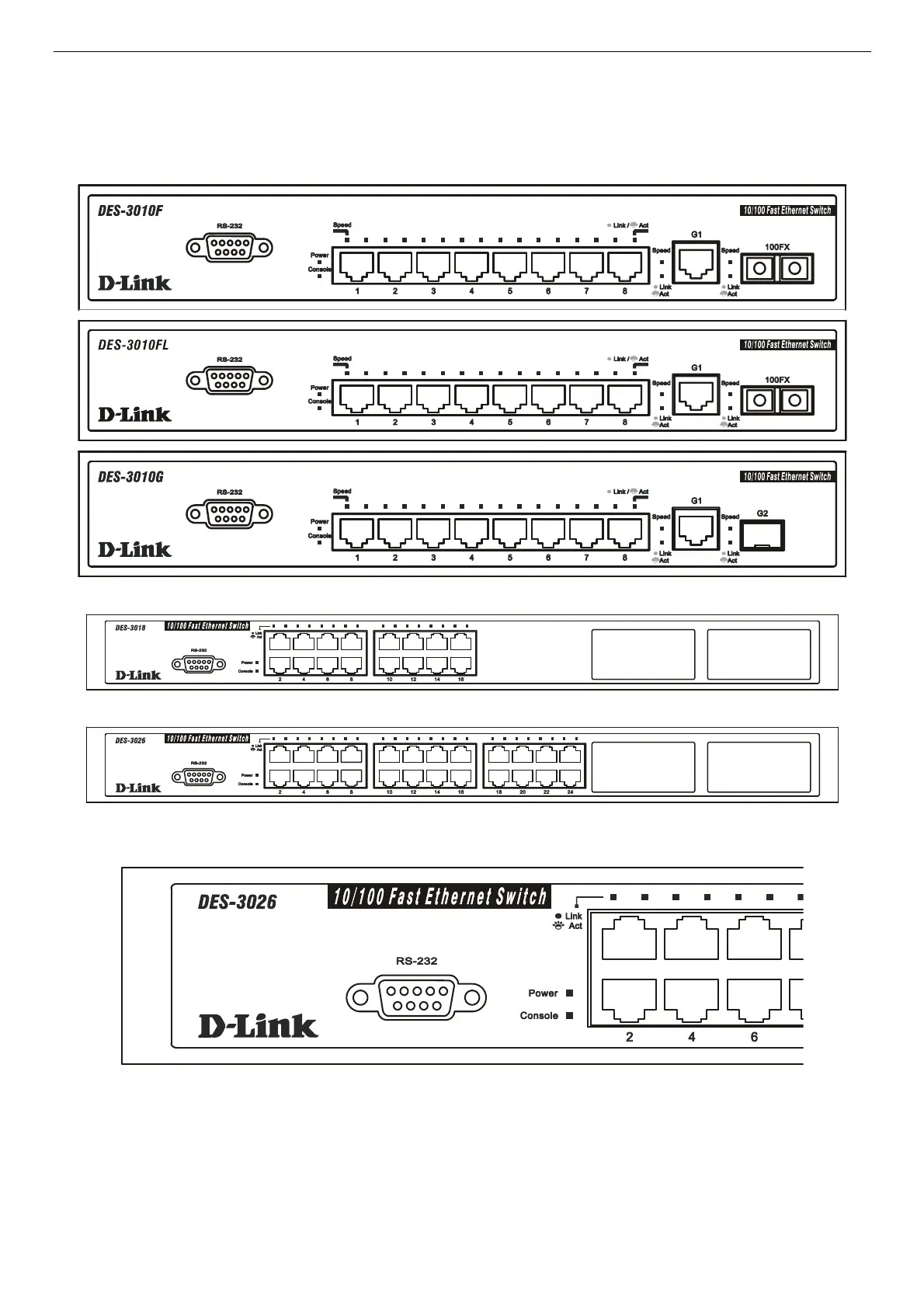

Figure 1- 1. DES-3010F/FL/G Front Panel
Figure 1- 2. DES-3018 Front Panel
Figure 1- 3. DES-3026 Front Panel
Figure 1- 4. DES-3026 LED indicators
