DES-3010F/DES-3010FL/DES-3010G/DES-3018/DES-3026 Fast Ethernet Switch Manual
802.1p Default Priority
The Switch allows the assignment of a default 802.1p priority to each port on the Switch. In the CoS folder, click 802.1p Default
Priority, to view the screen shown below.

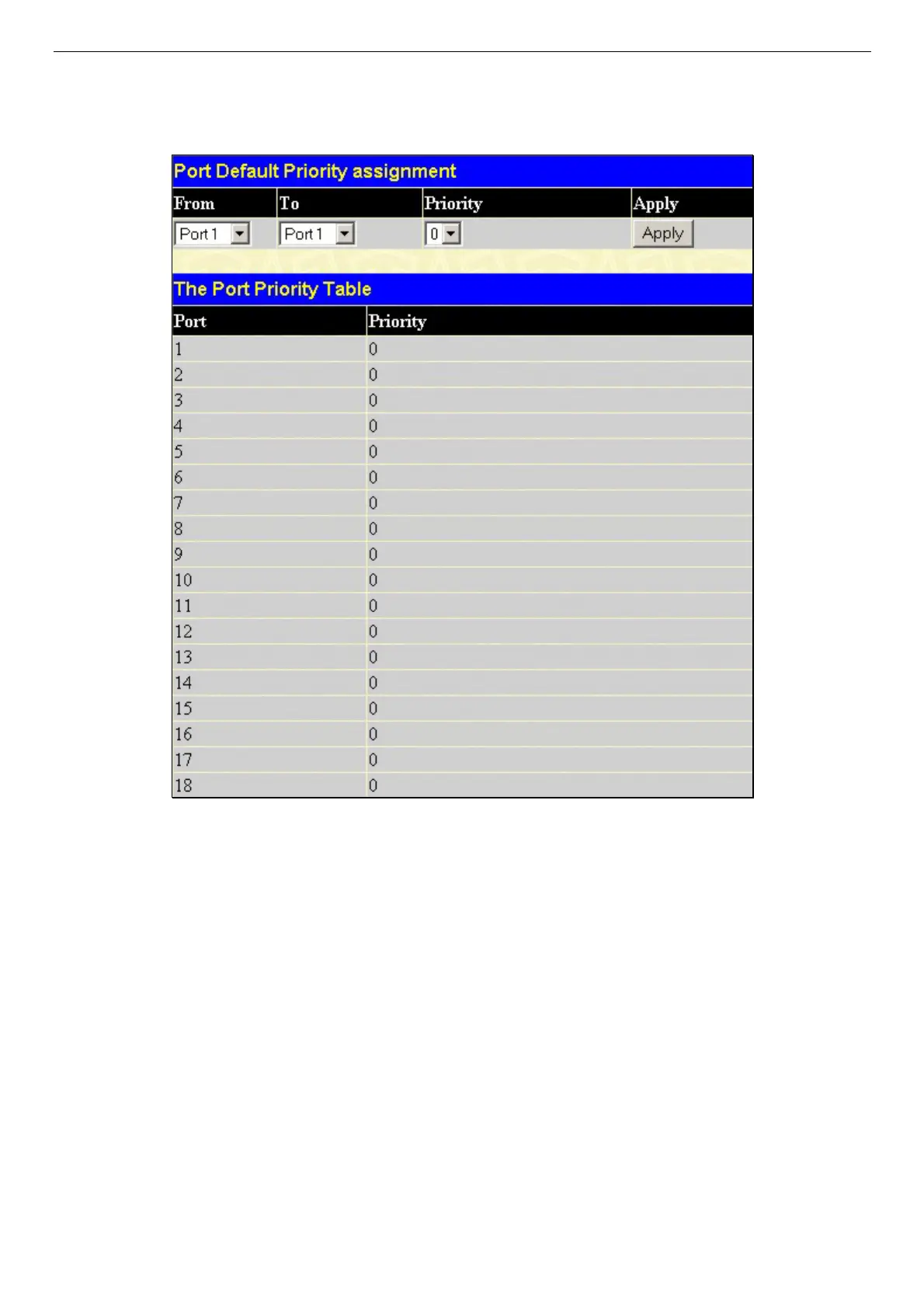

Figure 8- 3. 802.1p Default Priority and the 802.1p Default Priority window
This page allows you to assign a default 802.1p priority to any given port on the Switch. The priority tags are numbered from 0,
the lowest priority, to 7, the highest priority. To implement a new default priority choose a port range by using the From and To
pull-down menus and then insert a priority value, from 0-7 in the Priority field. Click Apply to implement your settings.
94
