Remote Port No.
Displays the number of the physical port on the MS or CaS that the CS is connected to. The
CS will have no entry in this field.
Local Port No.
Displays the number of the physical port on the CS that the MS or CaS is connected to. The
CS will have no entry in this field.
Port Speed
Displays the connection speed between the CS and the MS or CaS
Click Close to close the Property window.
Menu Bar

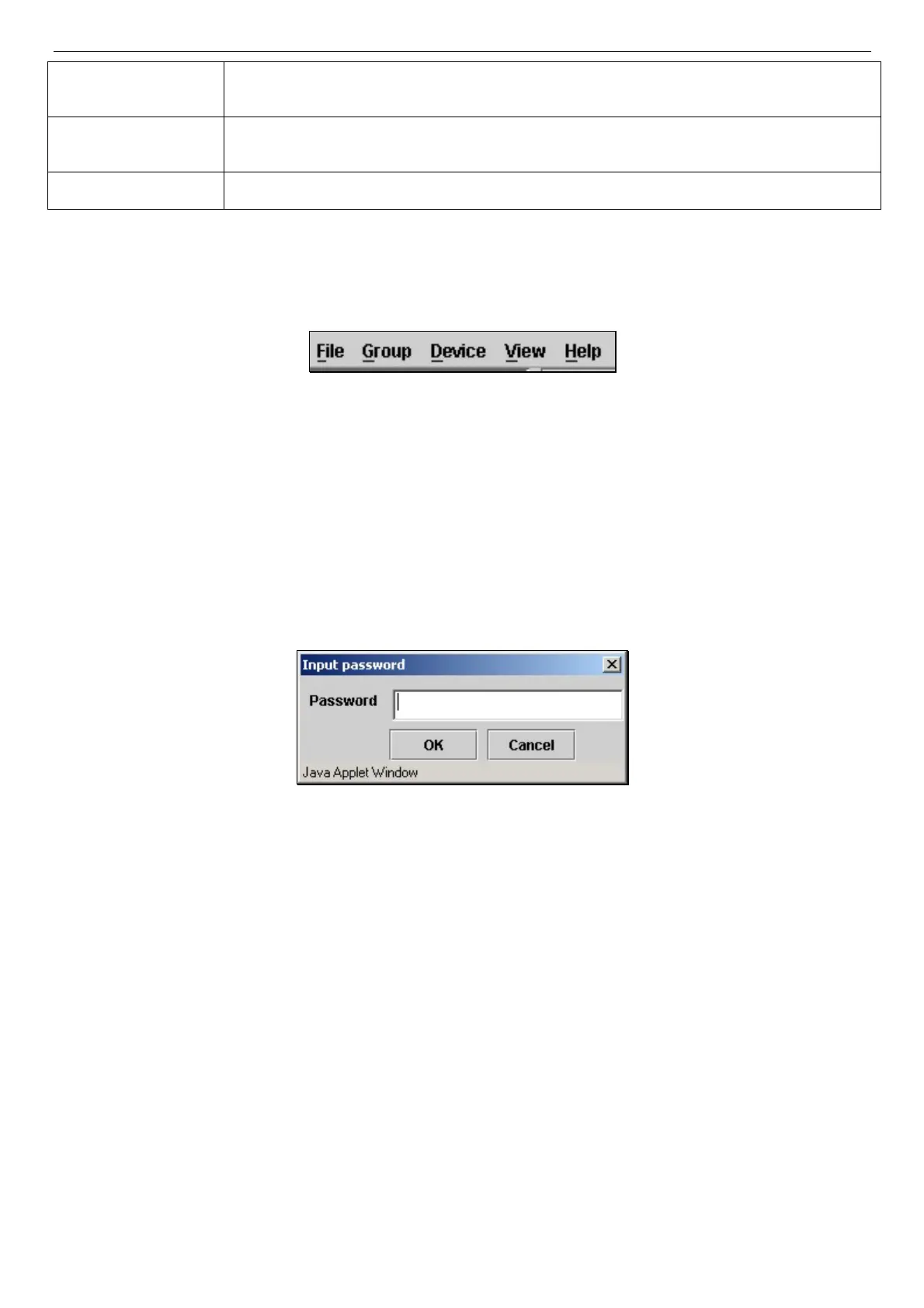

The Single IP Management window contains a menu bar for device configurations, as seen below.
Figure 6- 48. Menu Bar of the Topology View
The five menus on the menu bar are as follows.
File
Print Setup - will view the image to be printed. •
•
•
•
Print Topology - will print the topology map.
Preference - will set display properties, such as polling interval, and the views to open at SIM startup.
Group
Add to group - add a candidate to a group. Clicking this option will reveal the following screen for the user to enter a
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the window.
Figure 6- 49. Input password window.
Remove from Group - remove an MS from the group. •
•
•
•
•
Device
Configure - will open the web manager for the specific device.
View
Refresh - update the views with the latest status.
Topology - display the Topology view.
Help
About - Will display the SIM information, including the current SIM version.
