Web-Based Network Management 87

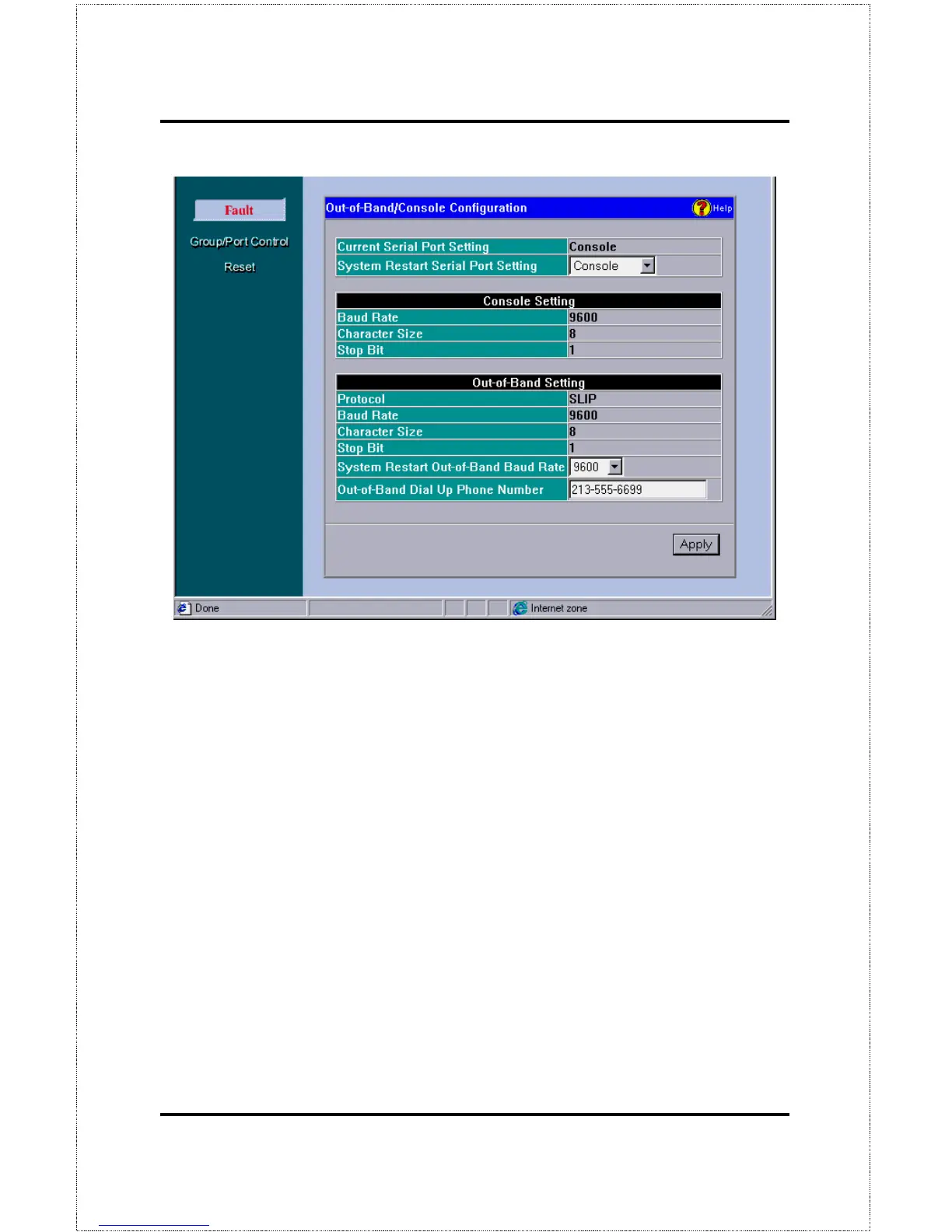

The information is described as follows:
♦ Current Serial Port Setting
Displays the current setting, either
Con-
sole
or
Out-of-band
.
♦ System Restart Serial Port Setting
You can choose to select
Console
or
Out-of-band
management upon reboot.
♦ Baud Rate
Defined in cps (characters per second), it shows the con-
nection speed between the Hub and the console.
♦ Character Size
This is the number of bits in the byte unit of the in-
formation exchange between Hub and console manager.
♦ Stop Bit
This bit marks the end of a unit of transmission (normally a
byte or character).
