When Promiscuous was selected as the VLAN Mode, the following page will appear.

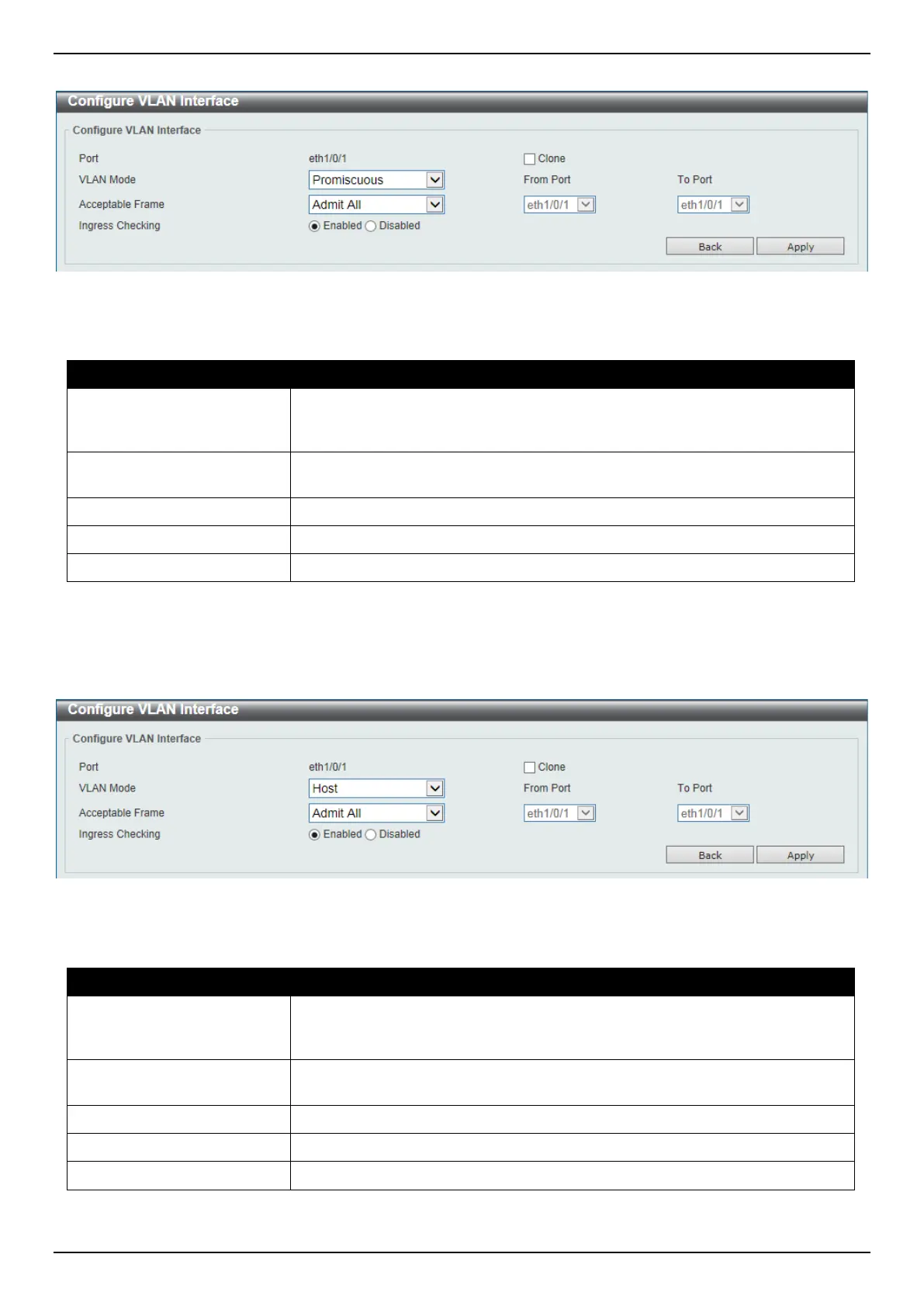

Figure 5-25 VLAN Interface (Promiscuous) Window
The fields that can be configured are described below:
Parameter Description
VLAN Mode Select the VLAN mode option here. Options to choose from are Access,
Hybrid, Trunk, 802.1Q-Tunnel, Promiscuous, Host, Trunk Promiscuous,
and Trunk Secondary.
Acceptable Frame
Select the acceptable frame behavior option here. Options to choose from are
Tagged Only, Untagged Only, and Admit All.
Ingress Checking Select to enable or disable the ingress checking function.
Clone Select this option to enable the clone feature.
From Port - To Port Select the range of ports that will be used in the clone feature here.
Click the Apply button to accept the changes made.
Click the Back button to discard the changes made and return to the previous page.
When Host was selected as the VLAN Mode, the following page will appear.
Figure 5-26 VLAN Interface (Host) Window
The fields that can be configured are described below:
Parameter Description
VLAN Mode
Select the VLAN mode option here. Options to choose from are Access,
Hybrid, Trunk, 802.1Q-Tunnel, Promiscuous, Host, Trunk Promiscuous,
and Trunk Secondary.
Acceptable Frame Select the acceptable frame behavior option here. Options to choose from are
Tagged Only, Untagged Only, and Admit All.
Ingress Checking Select to enable or disable the ingress checking function.
Clone Select this option to enable the clone feature.
From Port - To Port Select the range of ports that will be used in the clone feature here.
Click the Apply button to accept the changes made.
