The fields that can be configured for VLAN Counter Table are described below:
Parameter Description
Interface VLAN Enter the VLAN ID that will be used here. The range is from 1 to 4094. Select
the All option to display counter information associated with all VLAN
interfaces.
Traffic Direction Select the traffic direction here. Options to choose from are:
• RX - Specifies to count ingress traffic.
• TX - Specifies to count egress traffic.
• Both - Specifies to count ingress and egress traffic.
Click the Find button to display entries in the table based on the information entered/selected.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Utilization
Port Utilization
This window is used to view the port utilization table.
To view the following window, click Monitoring > Utilization > Port Utilization, as shown below:

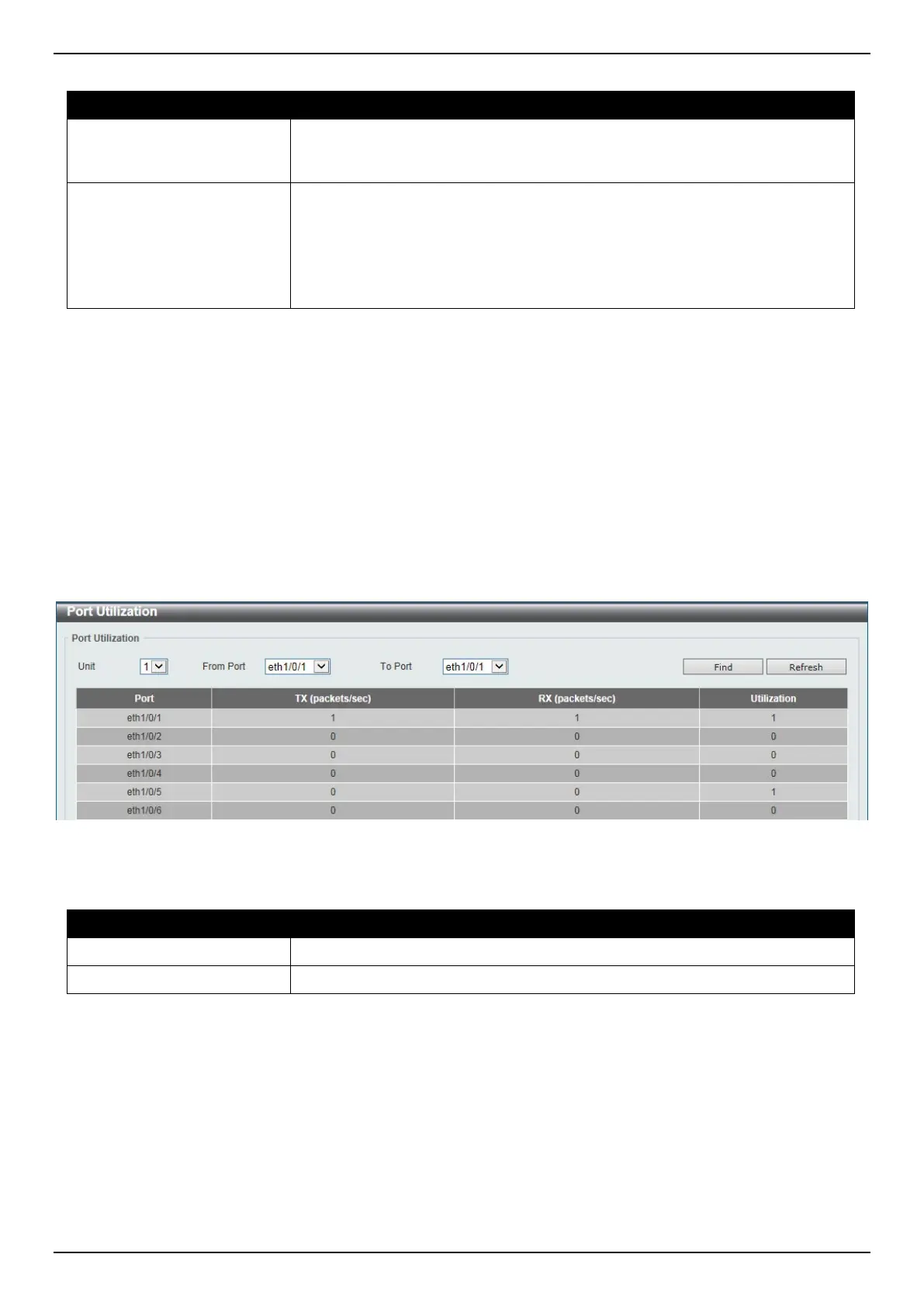

Figure 11-2 Port Utilization Window
The fields that can be configured are described below:
Parameter Description
Unit Select the Switch unit that will be used here.
From Port - To Port Select the range of ports that will be used here.
Click the Find button to display entries in the table based on the information entered/selected.
Click the Refresh button to refresh the information displayed in the table.
History Utilization
This window is used to view the memory, CPU and port history utilization.
To view the following window, click Monitoring > Utilization > History Utilization, as shown below:
