DGS-3130 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
287
Parameter Description
This parameter is only available in the protocol type ICMP.
Message Code When the ICMP Message Type is not selected, enter the ICMP Message Type
numerical value used here. When the ICMP Message Type is selected, this
numerical value will automatically be entered.
This parameter is only available in the protocol type ICMP.
DSCP Select the DSCP value that will be used here. Options to choose from are
default (0), af11 (10), af12 (12), af13 (14), af21 (18), af22 (20), af23 (22), af31
(26), af32 (28), af33 (30), af41 (34), af42 (36), af43 (38), cs1 (8), cs2 (16), cs3
(24), cs4 (32), cs5 (40), cs6 (48), cs7 (56), and ef (46).
• Value - The DSCP value can also manually be entered here. The range is
from 0 to 63.
• Mask - Enter the DSCP mask value here. The range is from 0x0 to 0x3F.
Traffic Class Select and enter the traffic class value here. The range is from 0 to 255.
• Mask - Enter the traffic class mask value here. The range is from 0x0 to
0xFF.
Flow Label Enter the flow label value here. This value must be between 0 and 1048575.
• Mask - Enter the flow label mask value here. The range is from 0x0 to
0xFFFFF.
Time Range
Enter the name of the time range profile that will be used in this ACL rule here.
This name can be up to 32 characters long.
Click the Apply button to accept the changes made.
Click the Back button to discard the changes made and return to the previous page.
Extended MAC ACL
After selecting an Extended MAC ACL and clicking the Add Rule button, the following page will appear.

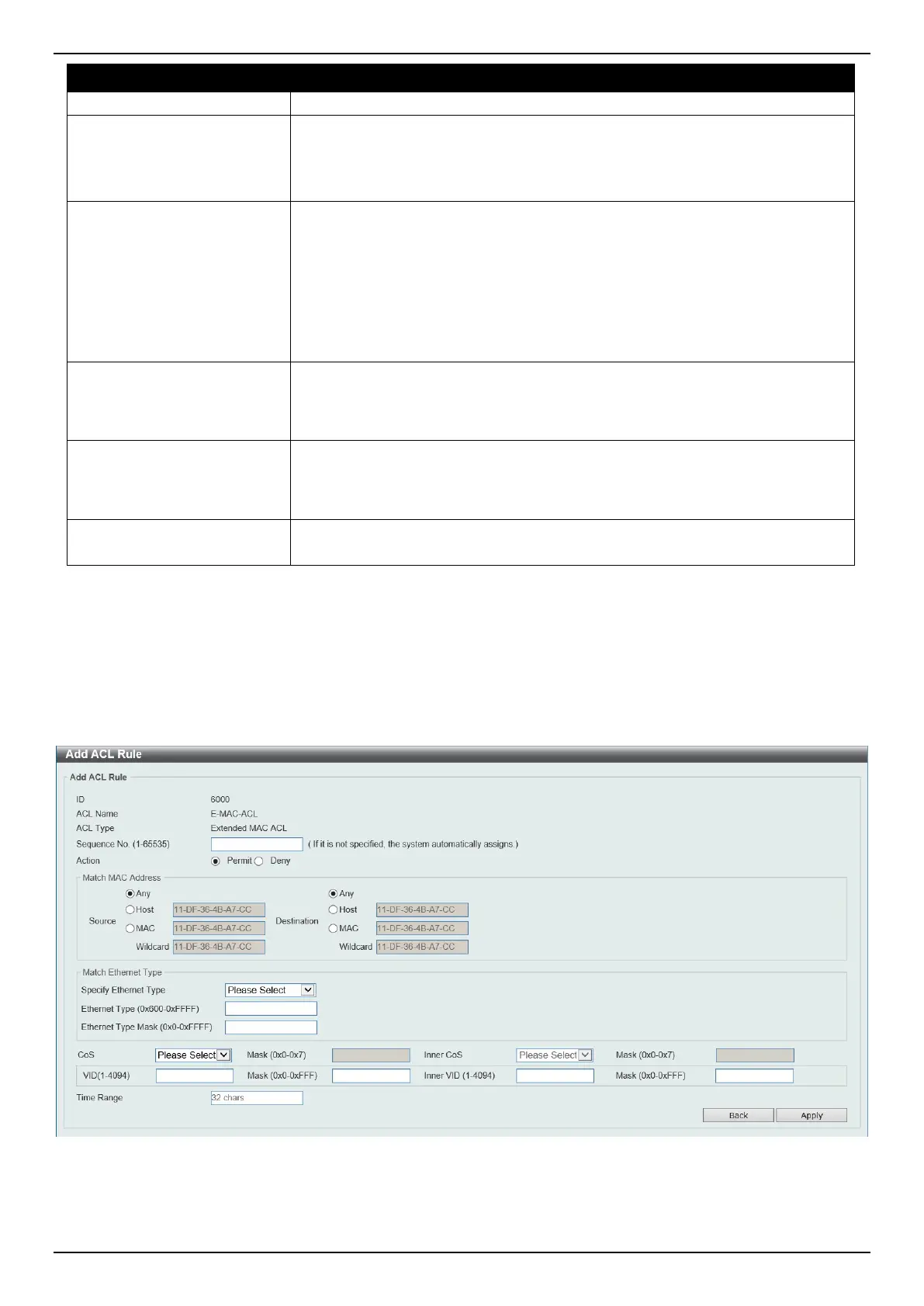

Figure 8-15 Extended MAC ACL (Add Rule) Window
The fields that can be configured are described below:
