Parameter Description
action is not specified, the default action is equal to the exceed action. Options
to choose from are Drop, Set-DSCP-Transmit, Set-1P-Transmit, Transmit,
and Set-DSCP-1P.
• When selecting the Drop option, the packet will be dropped.
• When selecting the Set-DSCP-Transmit option, enter the IP DSCP
value in the space provided. This value sets the IP differentiated
services code point (DSCP) value and transmits the packet with the
new IP DSCP value.
• When selecting the Set-1P-Transmit option, enter the 1P transmit
value in the space provided. This value sets the 802.1p value and
transmits the packet with the new value.
• When selecting the Transmit option, packets will be transmitted
unaltered.
• When selecting the Set-DSCP-1P option, enter the IP DSCP and 1P
transmit values in the spaces provided.
Color Aware
Select the color aware option here. Options to choose from are Disabled and
Enabled. When color aware is disabled, the policer works in the color blind
mode. When color aware is enabled, the policer works in the color aware mode.
Click the Apply button to accept the changes made.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Policy Map
This window is used to display and configure the policy map settings.
To view the following window, click QoS > Advanced Settings > Policy Map, as shown below:

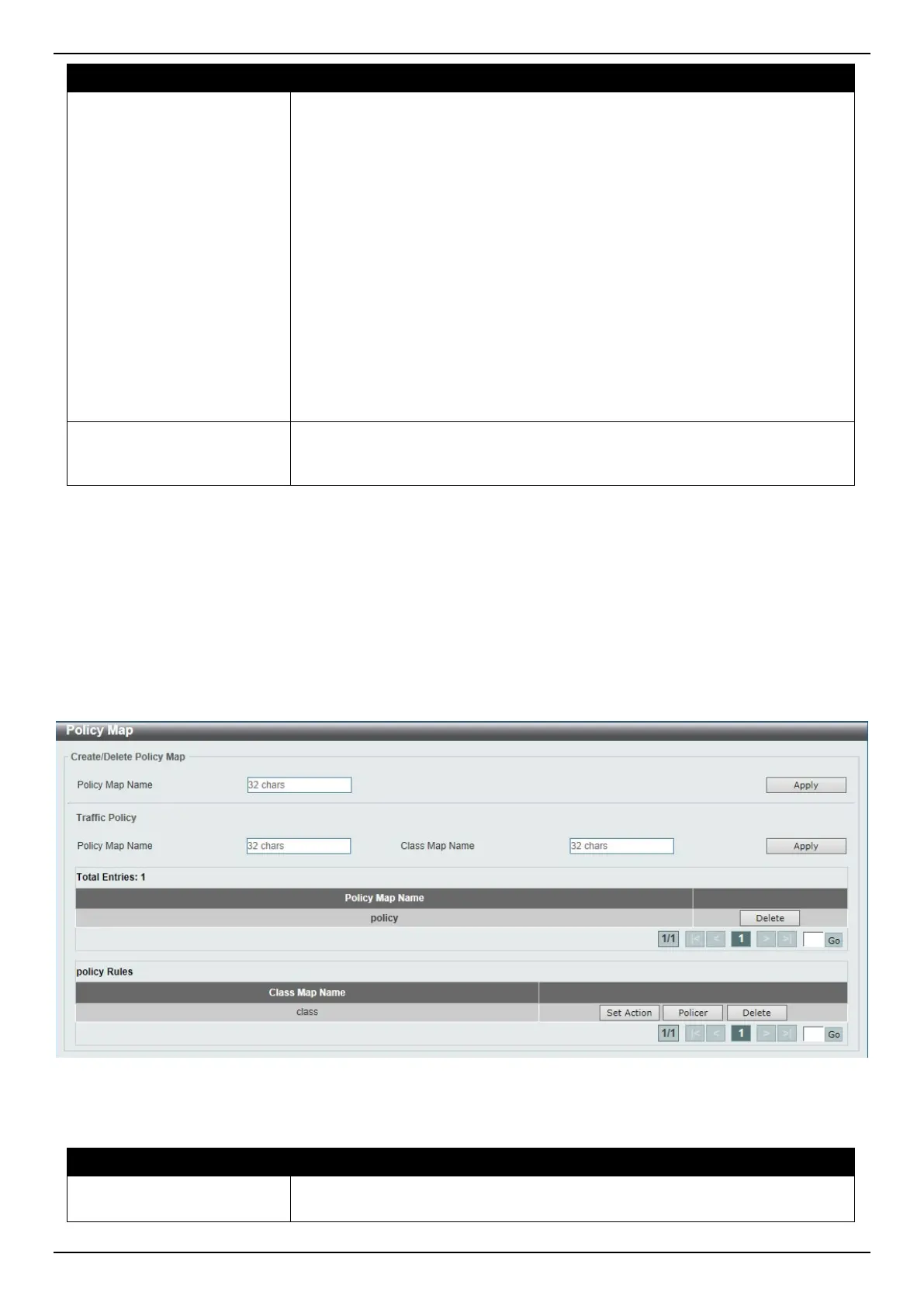

Figure 7-16 Policy Map Window
The fields that can be configured for Create/Delete Policy Map are described below:
Parameter Description
Policy Map Name Enter the policy map name here that will be created or deleted. This name can
be up to 32 characters long.
