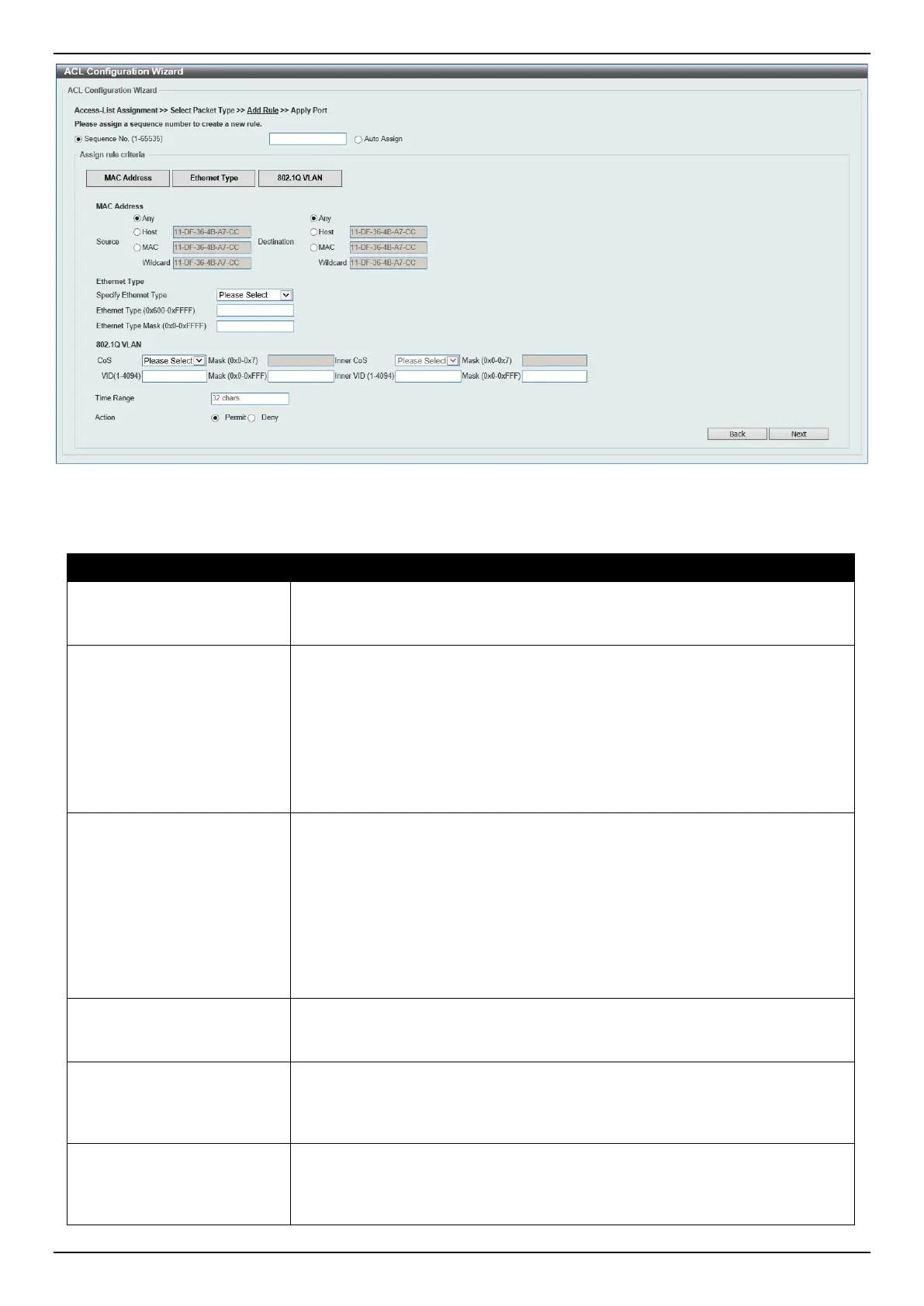

Figure 8-4 ACL Configuration Wizard (Create, Packet Type, MAC) Window
The fields that can be configured are described below:
Parameter Description
Sequence No. Enter the ACL rule number here. This value must be between 1 and 65535.
Select Auto Assign to automatically generate an ACL rule number for this
entry.
Source Select and enter the source MAC address information here. Options to choose
from are Any, Host, and MAC.
When the Any option is selected, any source traffic will be evaluated according
to the conditions of this rule.
When the Host option is selected, enter the source host MAC address here.
When the MAC option is selected, the Wildcard option will also be available.
Enter the source MAC address and wildcard value in the spaces provided.
Destination Select and enter the destination MAC address information here. Options to
choose from are Any, Host, and MAC.
When the Any option is selected, any destination traffic will be evaluated
according to the conditions of this rule.
When the Host option is selected, enter the destination host MAC address
here.
When the MAC option is selected, the Wildcard option will also be available.
Enter the destination MAC address and wildcard value in the spaces provided.
Specify Ethernet Type
Select the Ethernet type option here. Options to choose from are aarp,
appletalk, decent-iv, etype-6000, etype-8042, lat, lavc-sca, mop-console,
mop-dump, vines-echo, vines-ip, xns-idp, and arp.
Ethernet Type Enter the Ethernet type hexadecimal value here. This value must be between
0x600 and 0xFFFF. When any Ethernet type profile is selected in the Specify
Ethernet Type drop-down list, the appropriate hexadecimal value will
automatically be entered.
Ethernet Type Mask Enter the Ethernet type mask hexadecimal value here. This value must be
between 0x0 and 0xFFFF. When any Ethernet type profile is selected in the
Specify Ethernet Type drop-down list, the appropriate hexadecimal value will
automatically be entered.
