DGS-3200 Series Layer 2 Gigabit Ethernet Managed Switch
168
To view the settings of a previously correctly created profile, click the corresponding Show Details button on the CPU Access
Profile List window to view the following window:

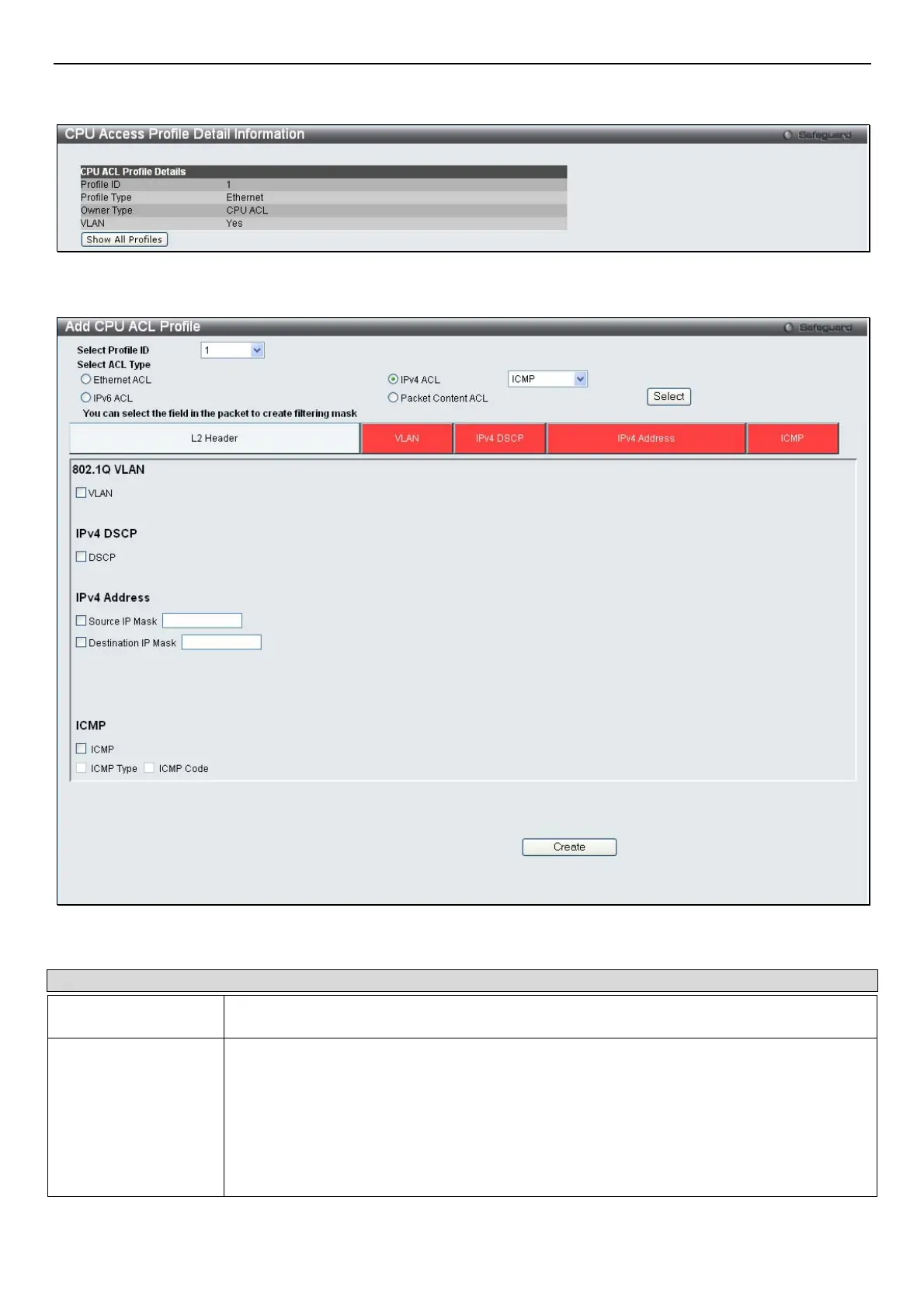

Figure 10- 24. CPU Access Profile Detail Information window for Ethernet
The window shown below is the Add CPU ACL Profile window for IP (IPv4).
Figure 10- 25. Add CPU ACL Profile window for IP (IPv4)
The following parameters may be configured for the IP (IPv4) filter.
Parameter Description
Select Profile ID
Use the drop-down menu to select a unique identifier number for this profile set. This value
can be set from 1 to 5.
Select ACL Type
Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or packet
content mask. This will change the menu according to the requirements for the type of
profile.
Select Ethernet to instruct the Switch to examine the layer 2 part of each packet header.
Select IPv4 to instruct the Switch to examine the IP address in each frame's header.
Select IPv6 to instruct the Switch to examine the IP address in each frame's header.
Select Packet Content Mask to specify a mask to hide the content of the packet header.
