DGS-3200 Series Layer 2 Gigabit Ethernet Managed Switch
81
802.1v Protocol VLAN
The 802.1v Protocol VLAN folder contains two windows: Protocol VLAN Group Settings and 802.1v Protocol VLAN
Settings.
802.1v Protocol Group Settings
The table allows the user to create Protocol VLAN groups and add protocols to that group. The 802.1v Protocol VLAN Group
Settings supports multiple VLANs for each protocol and allows the user to configure the untagged ports of different protocols on
the same physical port. For example it allows the user to configure an 802.1Q and 802.1v untagged port on the same physical port.
The lower half of the table displays any previously created groups.
To view this window click L2 Features > 802.1V Protocol VLAN > Protocol VLAN Group Settings:

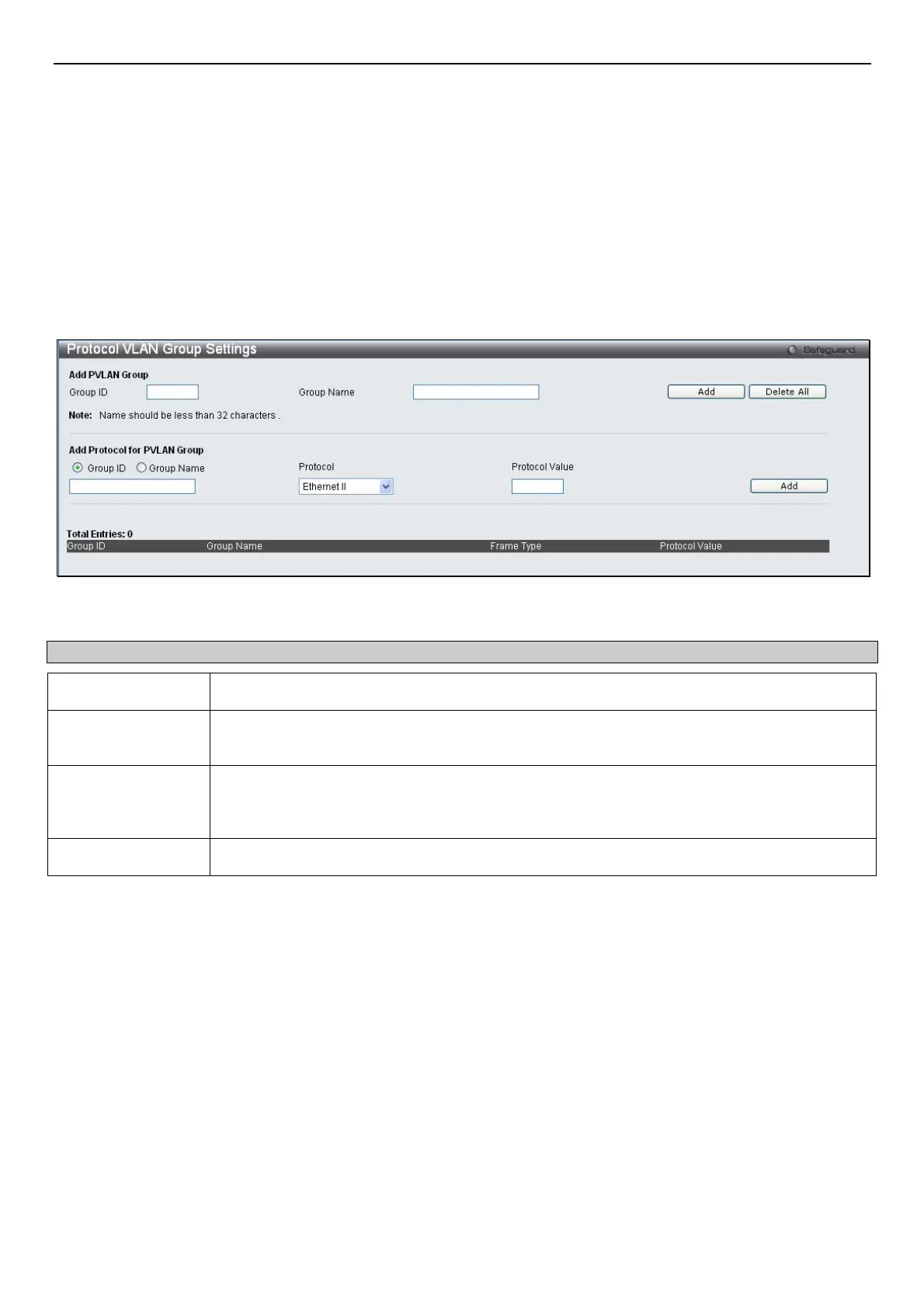

Figure 7- 9. Protocol VLAN Group Settings window
The following fields can be set:
Parameter Description
Group ID
Select an ID number for the group, between 1 and 2147483647.
Group Name
This is used to identify the new Protocol VLAN group. Type an alphanumeric string of up to 32
characters.
Protocol
This function maps packets to protocol-defined VLANs by examining the type octet within the
packet header to discover the type of protocol associated with it. Use the drop-down menu to
toggle between Ethernet II,IEEE802.3 LLC, and IEEE802.3 SNAP.
Protocol Value
Enter a value for the Group.
Click
Add
to make a new entry and
Delete All
to remove an entry.
802.1v Protocol VLAN Settings
The table allows the user to configure Protocol VLAN settings. The lower half of the table displays any previously created
settings.
To view this window click L2 Features > 802.1v Protocol VLAN > Protocol VLAN Port Settings:
