Section 1 - Product Overview
Hardware Overview

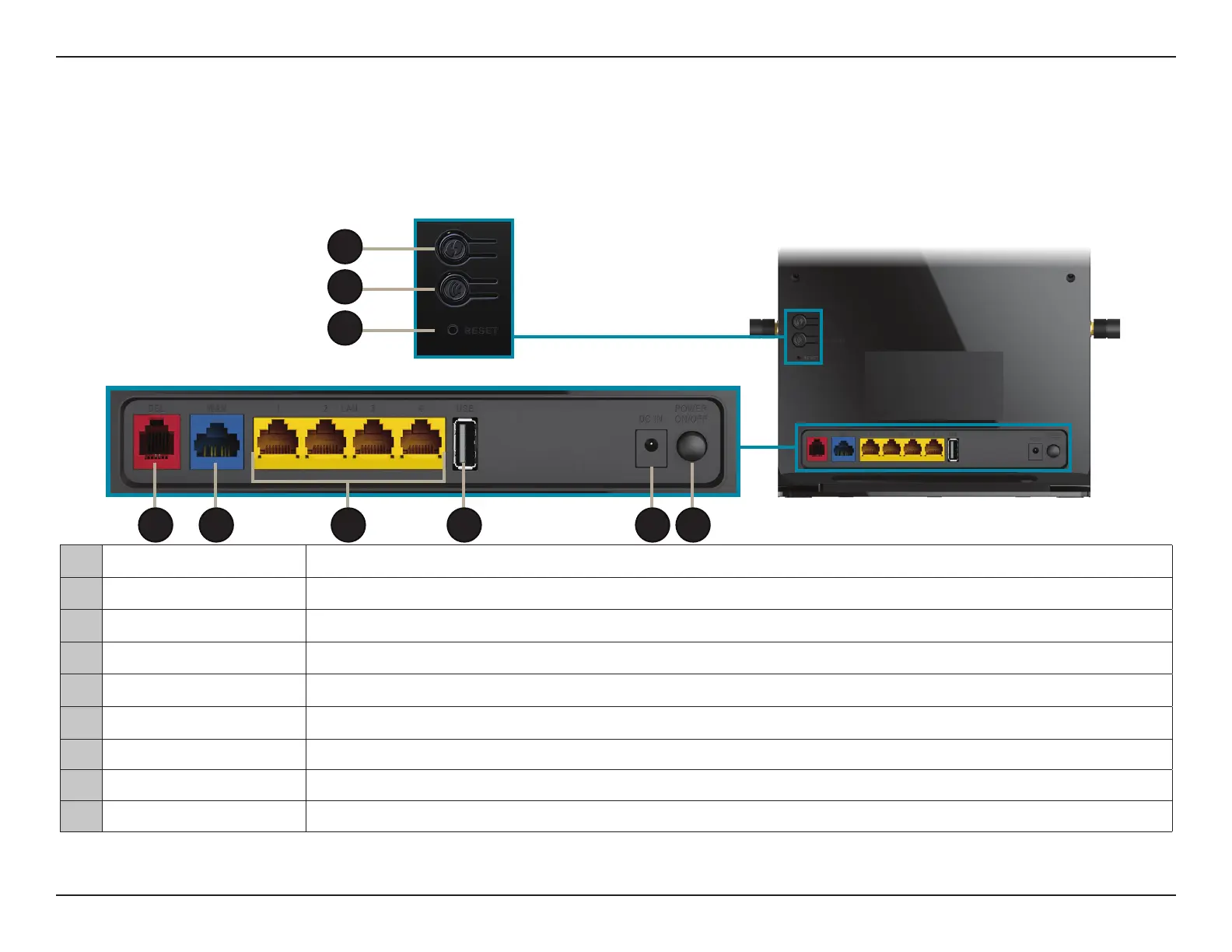

Back Panel
1
2
3
4 5 6 87 9
1 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
2 Wi-Fi Button Press to enable or disable Wi-Fi.
3 Reset Button To reset the device to factory defaults, use a paper clip to press and hold the reset button for 3 seconds.
4 DSL Port Connects to a DSL-enabled telephone line and with the supplied microsplitter.
5 Gigabit WAN Port Connects to Ethernet WAN devices.
6 Gigabit LAN Ports (1-4) Connects to Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
7 USB 2.0 Port Connects to USB flash drives to share content or USB mobile dongles for Internet connectivity.
8 Power Connector Connector for the supplied power adapter.
9 Power Button Press the power button to power the DSL-G2452DG on and off.
