9D-Link DSL-G2452DG User Manual
Section 2 - Installation
Manual Setup
Microsplitter
Telephone Outlet
PHONE
DSL-G2452DG
Phone Cable
Microsplitter
1

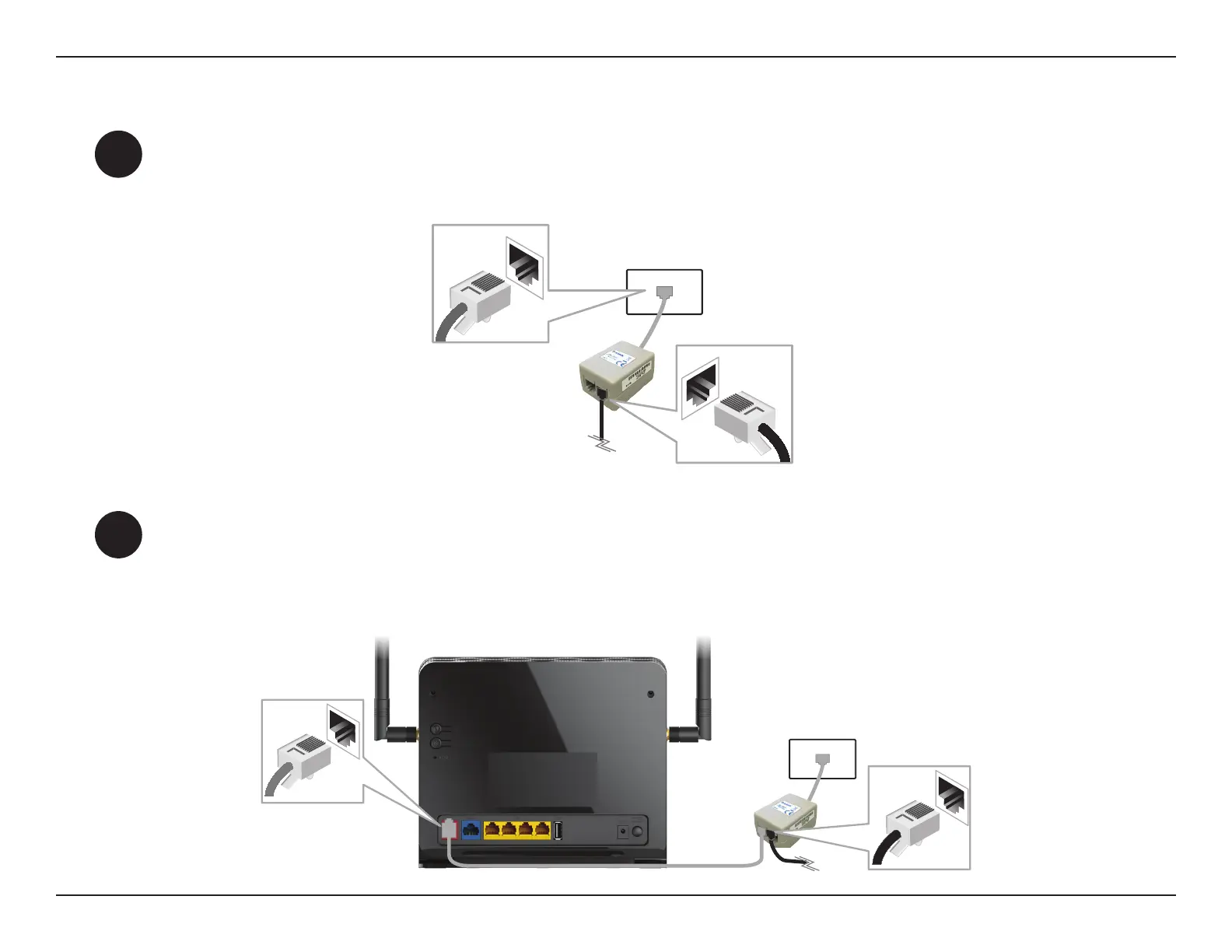

Connect the supplied microsplitter to the telephone outlet. If you are using a telephone handset on the same
outlet, connect it to the PHONE port on the microsplitter.
Connect the phone cable from the DSL port on the microsplitter to the DSL port of the DSL-G2452DG.
2
Caution: To reduce the risk of re, use only No. 26 AWG or larger telecommunication line cord.
