Web User Interface

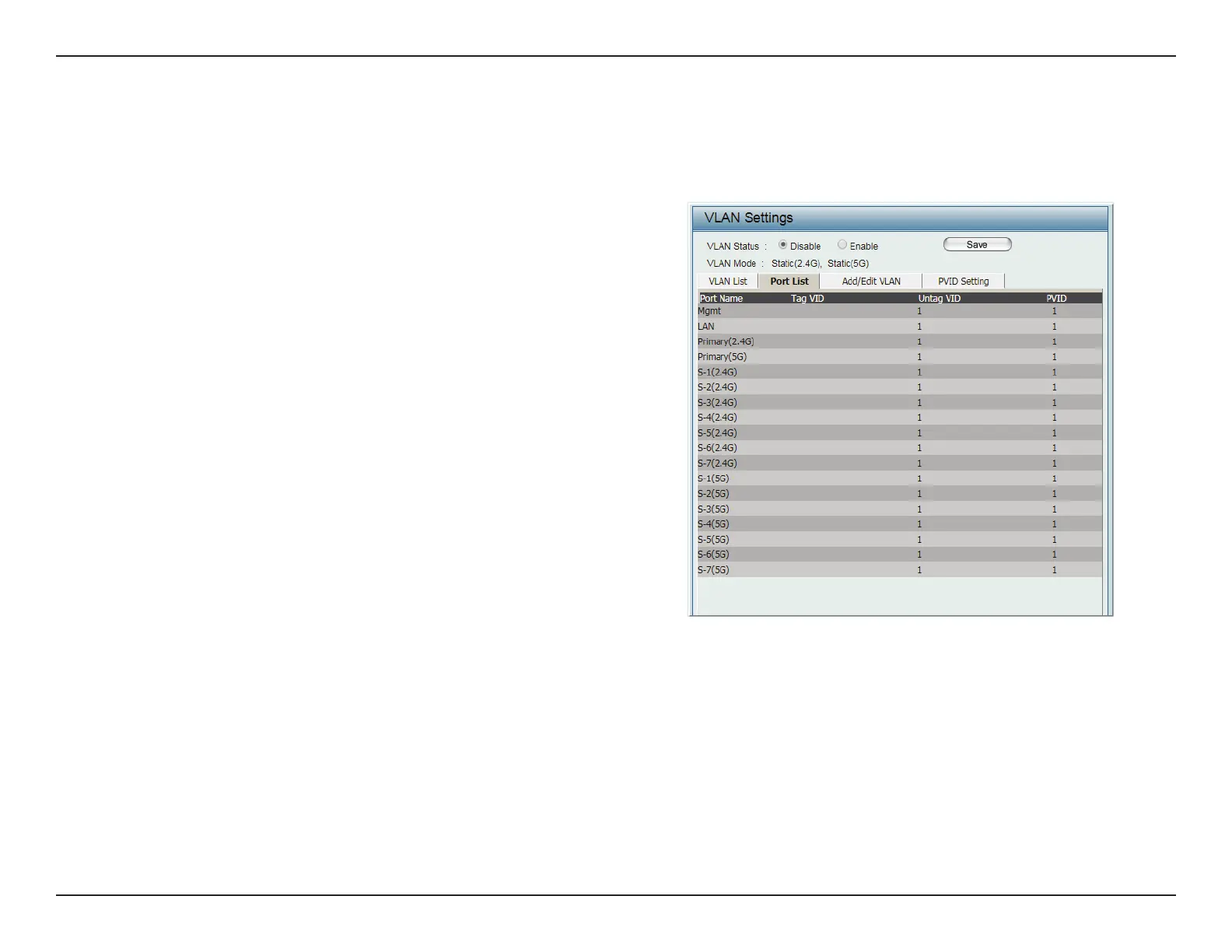

Port List
The Port List tab displays the current ports. If you want to congure the guest and internal networks on a Virtual LAN (VLAN), the switch and
DHCP server you are using must also support VLANs. As a prerequisite step, congure a port on the switch for handling VLAN tagged packets as
described in the IEEE 802.1Q standard.
VLAN Status Click the radio button to enable or disable VLAN
status. Next, go to the Add/Edit VLAN tab to
add or modify an item on the VLAN List tab.
VLAN Mode Displays the current VLAN mode.
Save Click to save the updated conguration.
To make the updates permanent, click
Conguration > Save and Activate.
Port Name Displays the name of the port.
Tag VID Displays the tagged VID of the port.
Untag VID Displays the untagged VID of the port.
PVID Displays the PVID of the port.
