D-Link NUCLIAS CONNECT DAP-2680 - Traffic Manager

67D-Link DAP-2680 User Manual
Web User Interface

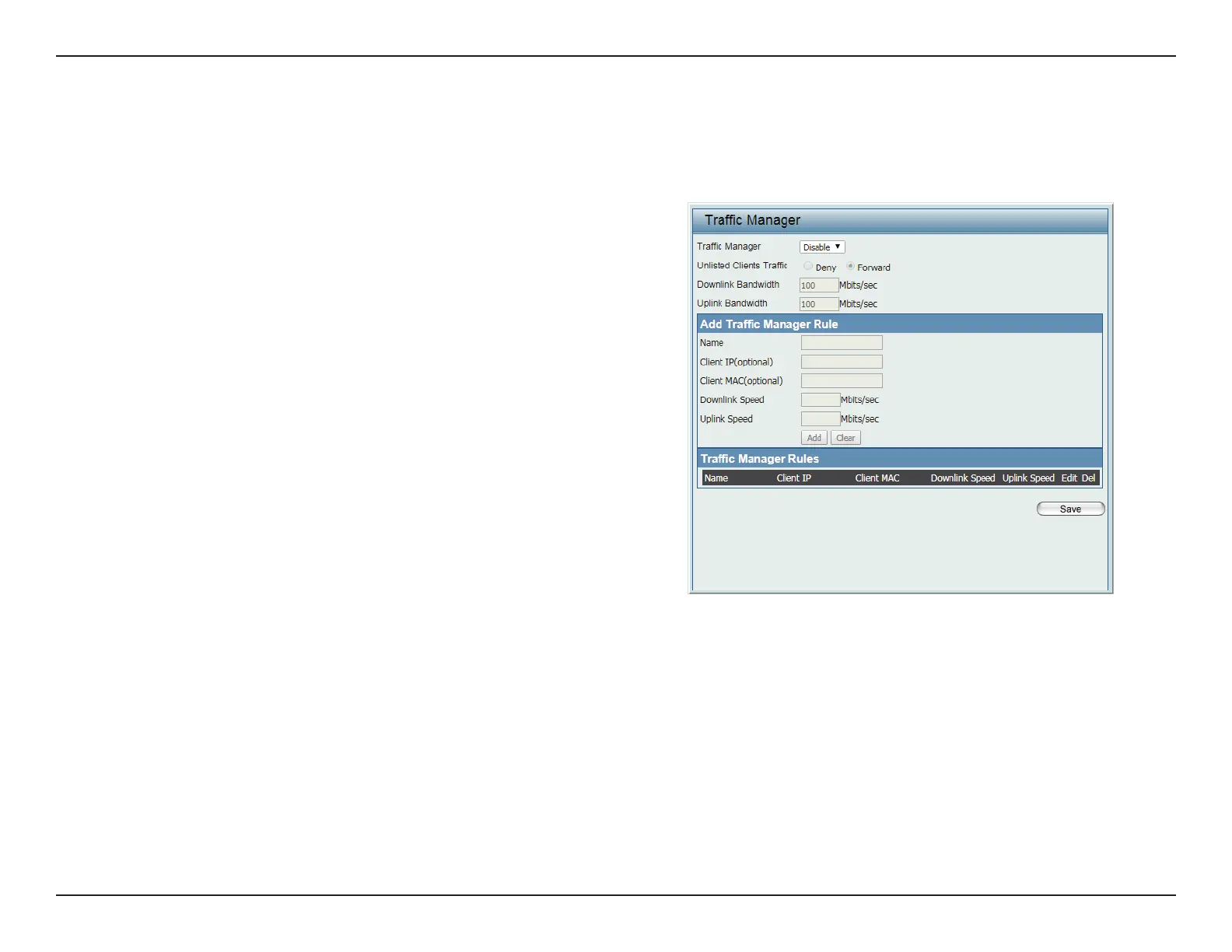

Trac Manager
The trac manager feature allows users to create trac management rules that specify how to deal with listed client trac and specify downlink/
uplink speed for new trac manager rules. Click Save for the changes to take eect.
Note: Bandwidth Optimization is disabled if QoS is enabled.
Trac Manager Click the drop-down menu to enable the trac
manager feature. By default this feature is
disabled.
Unlisted Clients Trac Click the radio button to select Deny or
Forward to determine how to deal with
unlisted client trac.
Downlink Bandwidth Enter the downlink bandwidth in Mbits per
second. This value is entered in the Uplink/
Downlink Settings window.
Uplink Bandwidth Enter the uplink bandwidth in Mbits per second.
This value is entered in the Uplink/Downlink
Settings window.
Name Enter the name of the trac manager rule.
Client IP (optional) Enter the client IP address of the trac manager
rule.
Client MAC (optional) Enter the client MAC address of the trac
manager rule.
Downlink Speed Enter the downlink speed in Mbits per second.
Uplink Speed Enter the uplink speed in Mbits per second.
Save Click to save the updated conguration.
To make the updates permanent, click
Conguration > Save and Activate.
