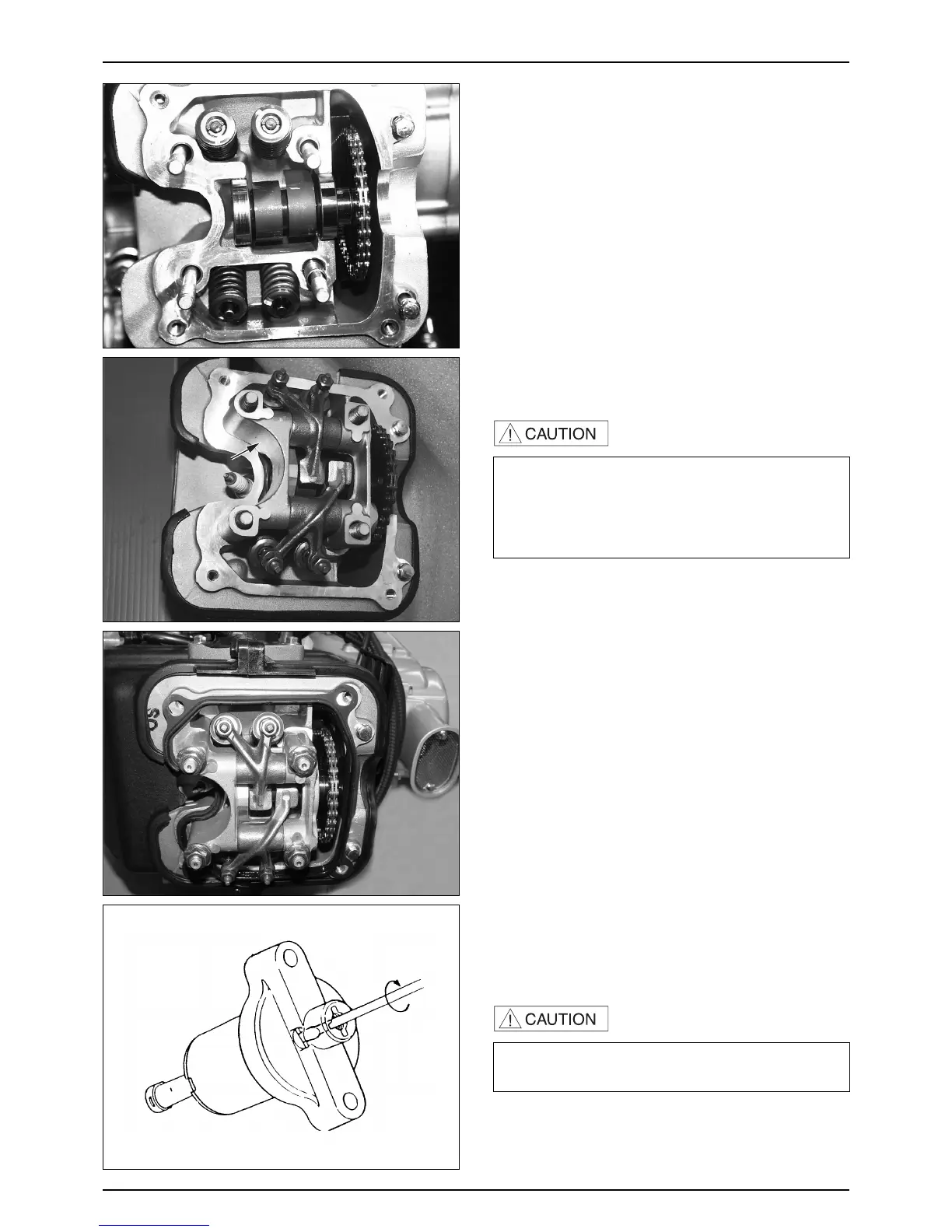

● Apply engine oil to the camshaft, and install it on the
cylinder head with the cam thread facing downward.
● Assemble the cam chain and cam sprocket after
matching the cam sprocket timing mark in parallel
with the top of the cylinder head.
● Install the dowel pins on the cylinder head.
● Install the camshaft holder.
● Remove the pan screws and seals from the cam chain
tensioner lifter.
● Rotate the tensioner shaft clockwise with a small
driver, and insert the shaft into the body completely.
● Install the cam cover plate.
● Apply engine oil to the threaded part; install the
camshaft holder nut and bolts, and tighten them
driving with 2 - 3 times.
TORQUE VALUE :
2.0 kgf
·
m
·The hole of the camshaft holder and the fitting
section of the rocker arm shaft fit section must be in
alignment.
·Of IN and EX, the shorter rocker arm should be
installed on the IN side.
·If the cam chain tensioner lifter is dropped, the shaft
will advance by the spring force.
