DAELIM S2 125

9-15
CYLINDER HEAD / VALVE
CAM CHAIN TENSIONER LIFTER
CLIP
● Install the cylinder head cover.
● Tighten the cylinder head cover bolts.
TORQUE VALUE :
0.9 kgf
·
m
● Install the carburetor insulator.
● Install the EX. pipe. (⇨3-8 )
● Install the RH. / LH. shroud. (⇨8-12 )
● Install the engine to the frame. (⇨6-2 )
● Fill clean engine oil into the operating parts of the
cylinder head.
● Adjust the valve clearance. (⇨2-5 )
● Remove oil from the cylinder head cover grooves, and
accurately assemble the gasket to the cover.

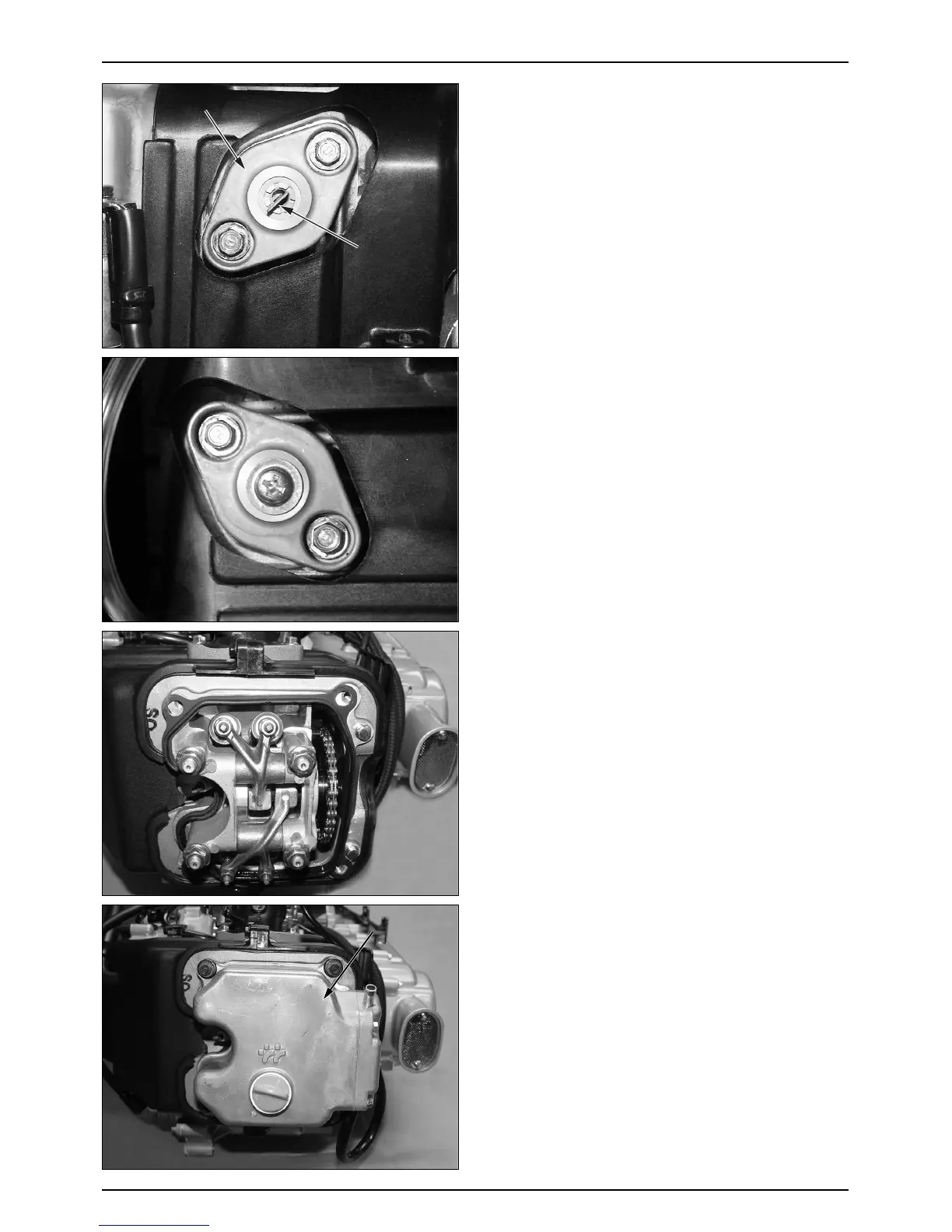

● Remove the tensioner shaft clip from the tensioner
lifter. Assemble the O-ring and pan screws to the
tensioner lifter.
TORQUE VALUE : 0.4 kgf
·
m
● Fix the tensioner shaft with a hard clip.
● Assemble a new gasket to the tensioner lifter, and
install the tensioner lifter on the cylinder.
● Tighten the tensioner mounting bolts.
TORQUE VALUE : 1.2 kgf
·
m
