DAELIM S2 125

11-3
TRANSMISSION/CRANKSHAFT/CRANKCASE

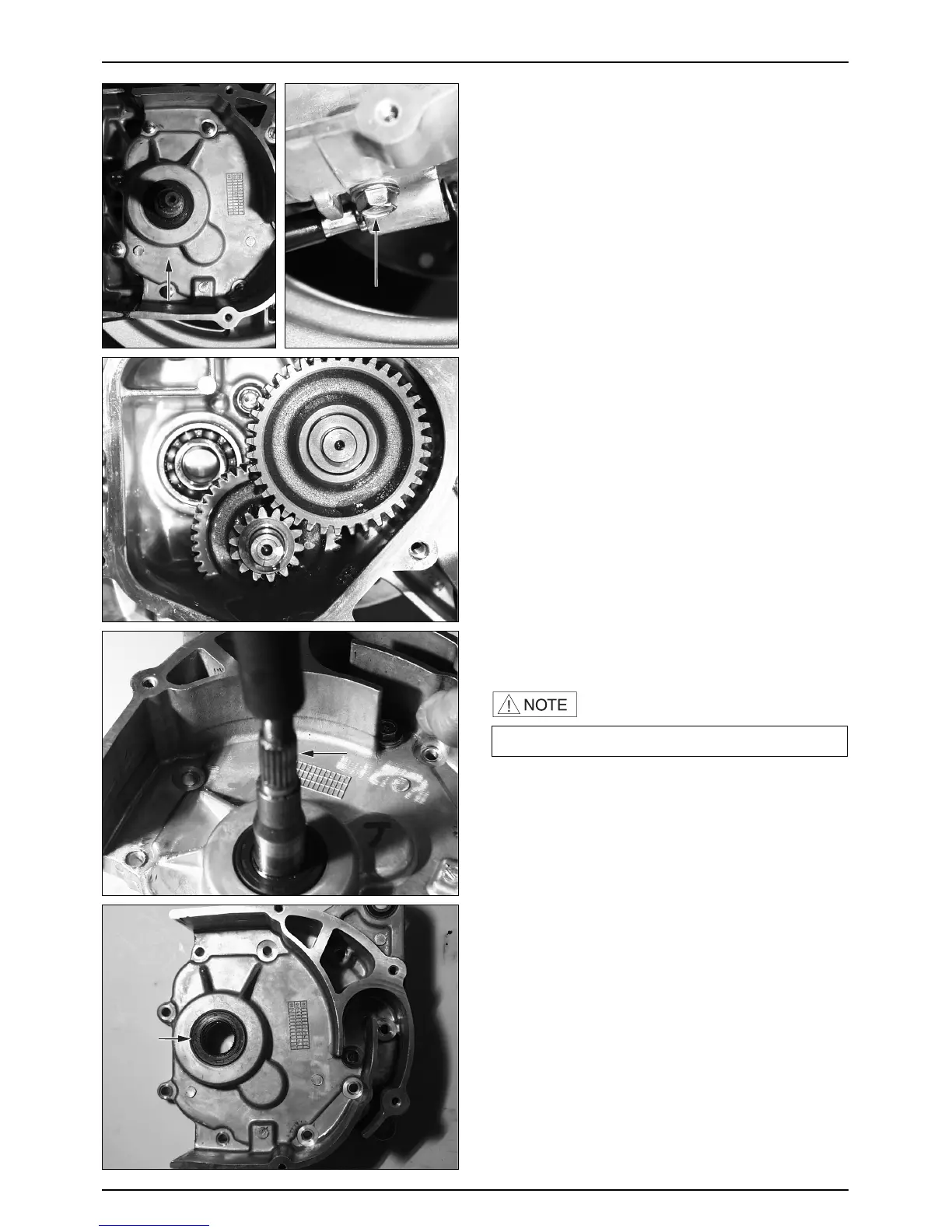

TRANSMISSION
DISASSEMBLY
● Loosen the drain bolt, drain the mission oil.
● Remove the LH. crankcase cover. (⇨7-2 )
● Remove the continuously variable transmission.
(⇨SECTION 7 )
● Remove the EX. muffler. (⇨3-8 )
● Remove the rear swing arm. (⇨13-8 )
● Remove the rear brake caliper. (⇨13-3 )
● Remove the rear wheel. (⇨13-5)
● Loosen the rear cushion upper bolt.
● Remove the transmission bleeder tube from the
mission cover groove.
● Loosen the 8 transmission cover bolts.
● Remove the transmission cover.
● Remove the gasket and dowel pin.
● Remove the drive shaft from the transmission cover by
using a hydraulic press.
● Remove the oil seal of the drive shaft.
·Take precautions not to damage the cover joints.
TRANSMISSION
COVER
DRAIN BOLT
DRIVE SHAFT
OIL
SEAL
