DAELIM S2 125

5-8
FUEL SYSTEM

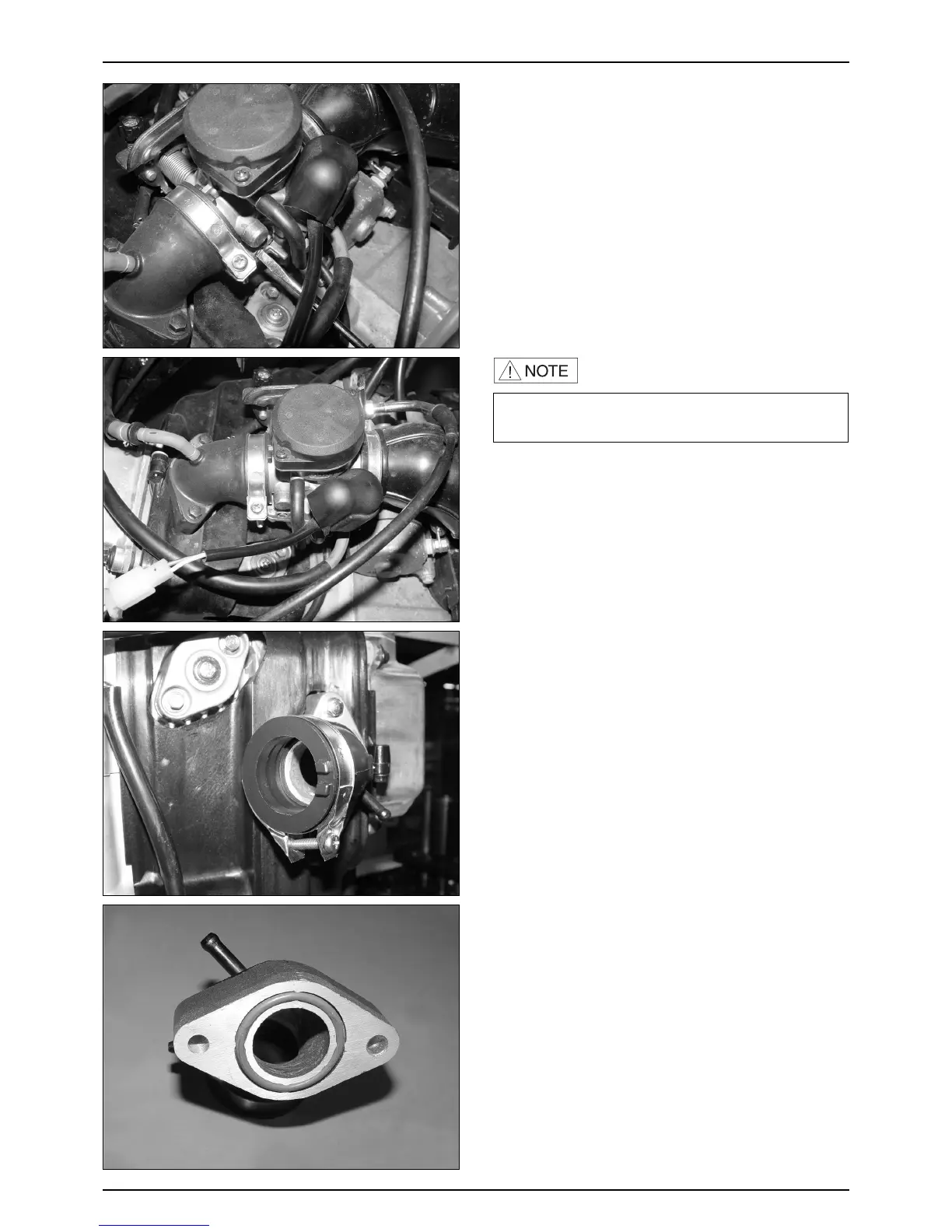

CABURETOR INSTALLATION
● Install the carburetor to the carburetor insulator.
● Tighten the carburetor insulator band screw.
● Tighten the setting screw securing the carburetor and
set plate.
● Install the fuel tube to the carburetor.
● Install the wiring coupler of the auto bystarter.
● Install the throttle cable to the carburetor.
● Install the air cleaner.(⇨2-5)
● Install the center cover.(⇨3-3)
● Install the luggage box.(⇨3-2)
INSPECTION
● Check the carburetor insulator O-ring for wear or
damage.
CABURETOR INSULATOR
REMOVAL
● Remove the luggage box. (⇨3-2)
● Remove the center cover. (⇨3-3)
● Remove the air cleaner. (⇨2-5)
● Remove the carburetor. (⇨5-3)
● Remove the fuel pump negative pressure tube.
● Loosen the carburetor insulator RH. socket bolt, and
remove the carburetor setting plate and socket bolt.
● Loosen the carburetor insulator LH. socket bolt, and
remove the carburetor insulator.
● Remove the carburetor insulator band.
● Install in the reverse order of removal.
•After adjusting the carburetor, check the throttle grip
free play.
