7-3
LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION

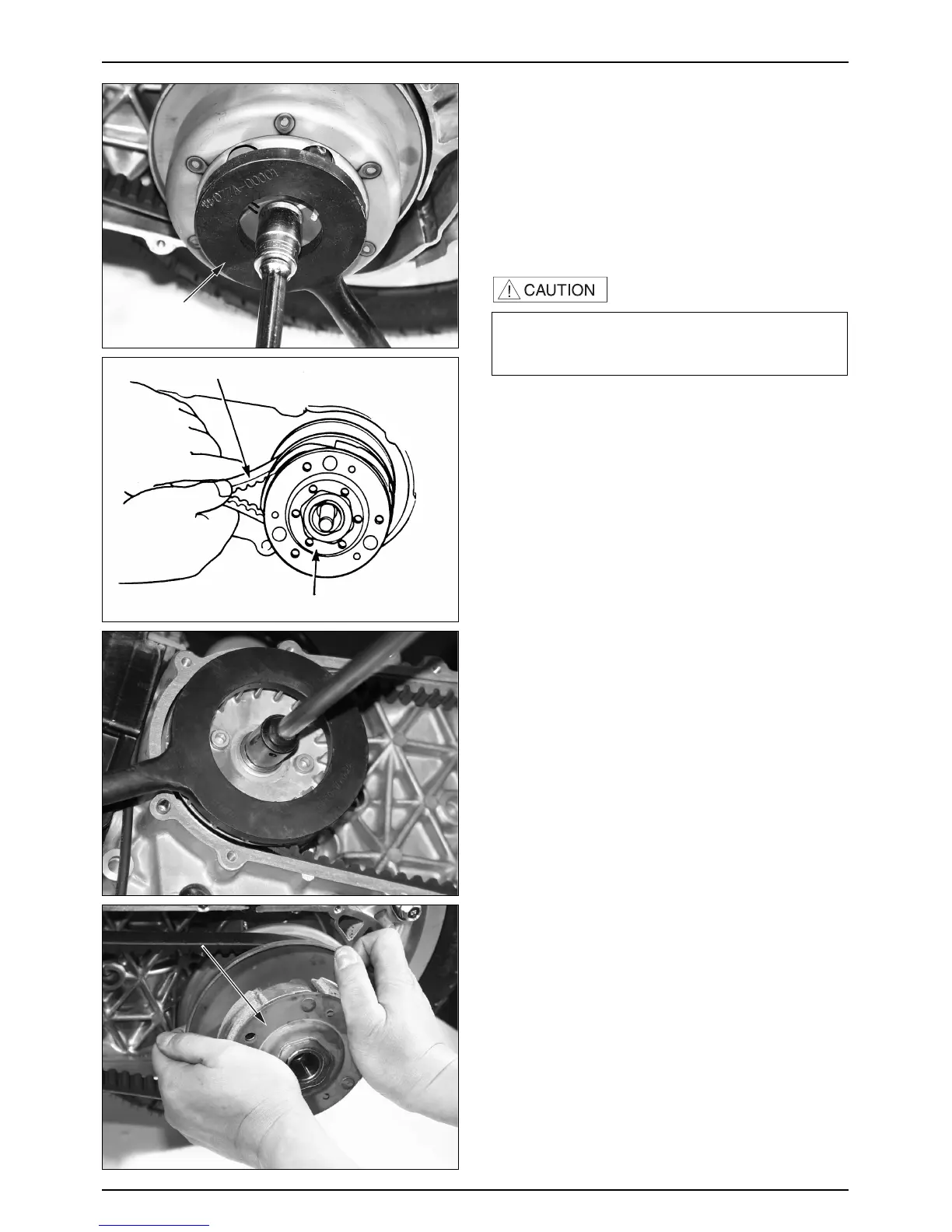

DRIVE BELT
REMOVAL
● Remove the LH. crankcase cover. (⇨7-2 )
● Hold the clutch outer using the universal holder and
remove the nut.
● Remove the clutch outer.
TOOL: UNIVERSAL HOLDER
● Squeeze the drive belt into the pulley groove as shown
so that it slackens enough to remove the driven pulley
from the drive shaft.
● Remove the driven pulley sub assembly with the drive
belt in place.
● Remove the drive belt from the driven pulley groove
and drive pulley groove.
● Loosen the drive face setting nut 12mm with the clutch
center holder.
● Remove the kick starter ratchet and drive face.
TOOL : DRIVE FACE HOLDER
UNIVERSAL
HOLDER
DRIVEN PULLEY SUB ASS'Y
DRIVE BELT
DRIVEN PULLEY SUB ASS'Y
·Use the special tool when loosening the lock nut.
Holding the rear wheel or rear brake will damage the
final reduction system.
