LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
DRIVE BELT INSPECTION

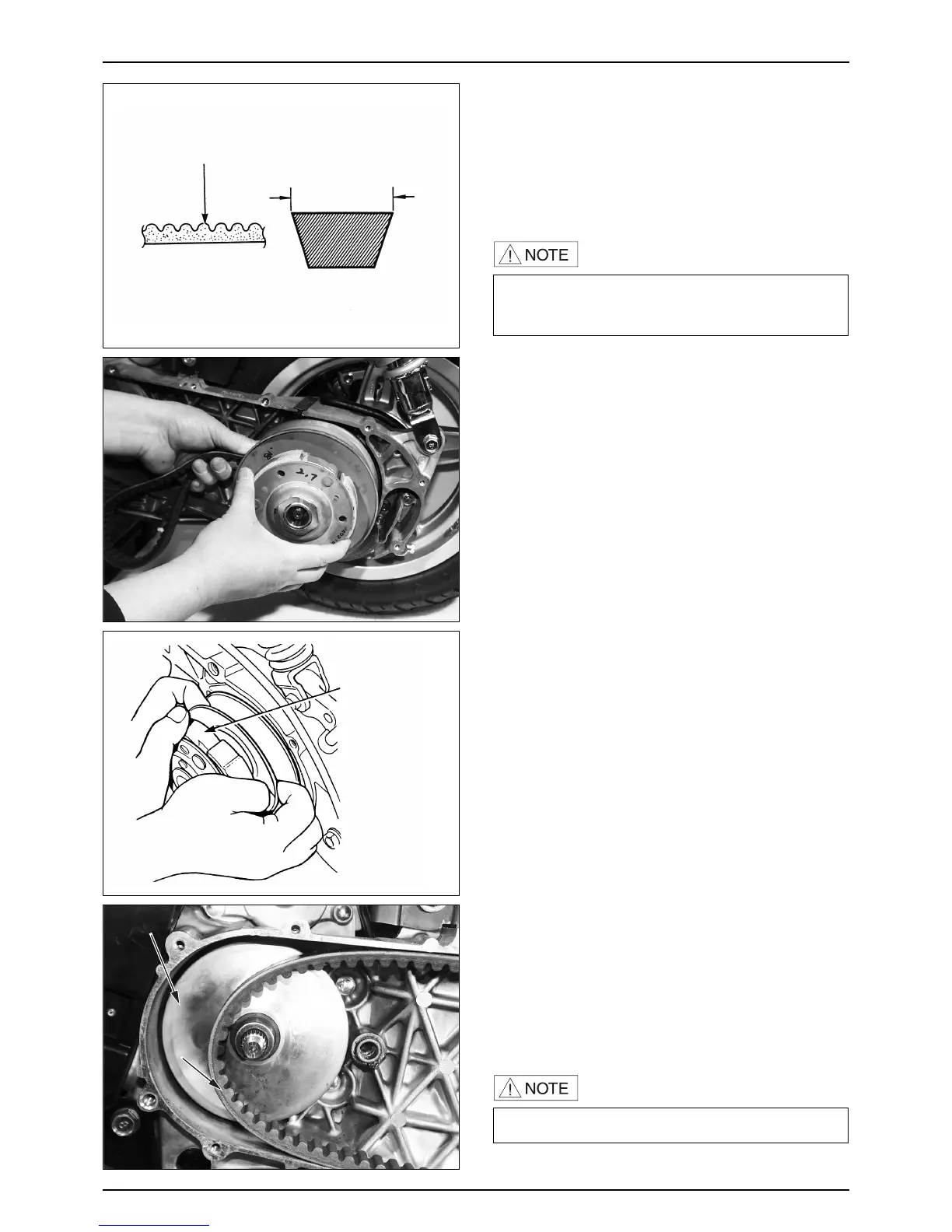

● Check the drive belt for cracks, pry separation and
wear; replace as necessary.
● Measure the width of the drive belt as shown.
● Replace the belt if the service limit is exceeded.
SERVICE LIMIT : 20.5mm
● Turn the pulley clockwise and spread the faces apart
while installing the drive belt.
● Remove the pulley assembly once with the drive belt
installed.
DRIVE BELT INSTALLATION
● Temporarily install the driven pulley sub assembly on
the drive shaft.
● Put the drive belt over the movable drive face.
● Install the drive face to the LH. crank shaft, and install
the kick starter ratchet.
● Hold the drive face using the drive face holder and
tighten the nut to the specified torque.
TORQUE VALUE : 7.0-8.0 kgf
·
m
TOOL : DRIVE FACE HOLDER
·Use only a genuine DAELIM replacement drive belt.
·Do not get oil or grease on the drive belt or pulley
faces. Clean off any grease or oil before reinstalling.
·Hold the faces apart preventing them from closing.
