DAELIM S2 125

7-7
LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION

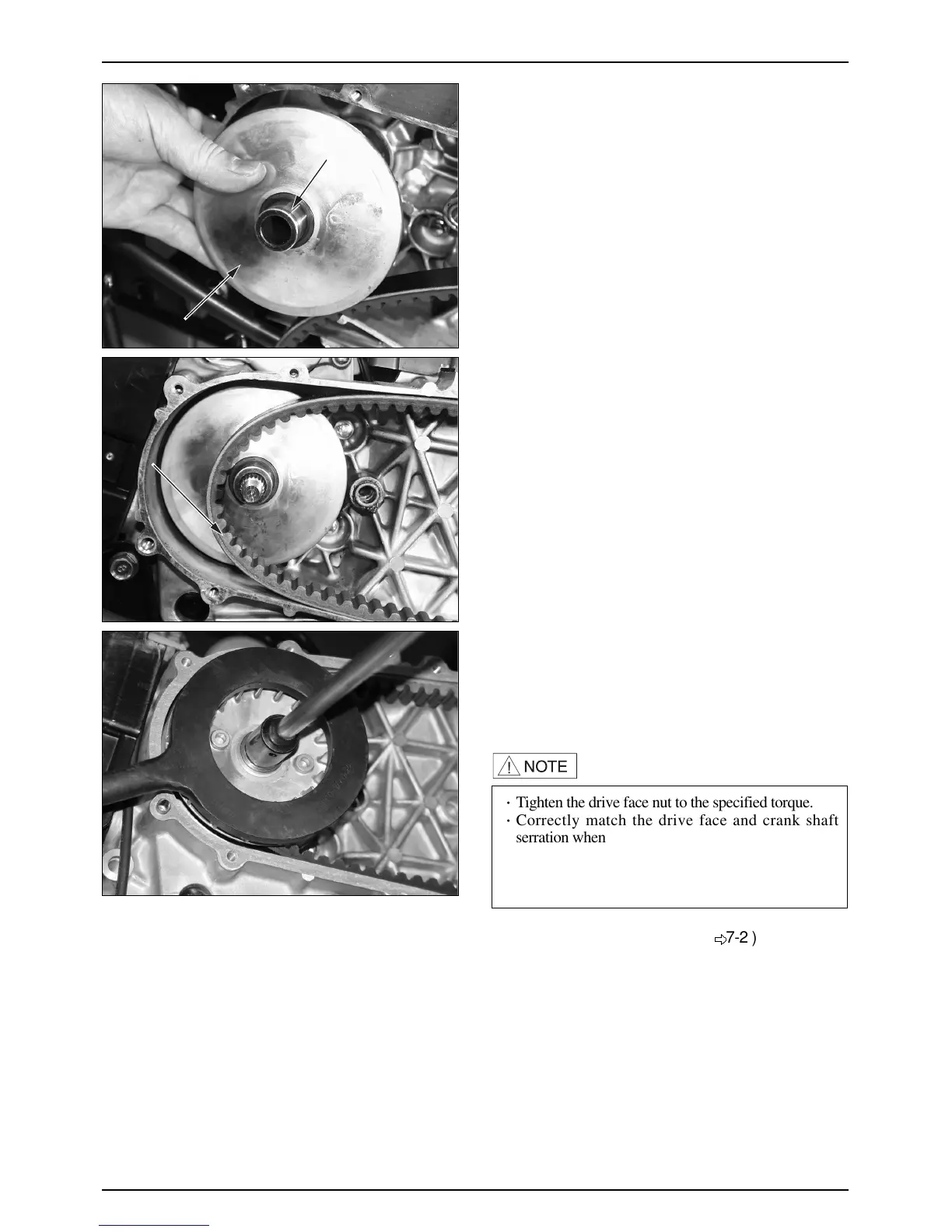

● Install the movable drive face on the crank shaft.
● Squeeze the drive belt into the drive face groove and
pull the drive belt over the drive face shaft.
● Hold the drive face using the drive face holder and
tighten the nut to the specified torque.
TORQUE VALUE : 7.0-8.0 kgf
·
m
TOOL : DRIVE FACE HOLDER
● Install the LH. crankcase cover. (
)Xh
@)X?g
@V/Xg
@?V/X?f
@@@@@@@@@@@??V/Xf
@?hfV/X?e
@?hf?V/Xe
@? N1e
@? J5e
@?hf?W.Ye
@@@@@@@@@@@?eW.Y?e
@??W.Yf
@?W.Y?f
@W.Yg
@(Y?g
(Yh
7-2 )
·Tighten the drive face nut to the specified torque.
·Correctly match the drive face and crank shaft
serration when assembling.
·If the drive face holder cannot be used, remove the
cooling fan and hold the flywheel with the universal
holder.
BOSS
MOVABLE DRIVE FACE
DRIVE BELT
