LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION

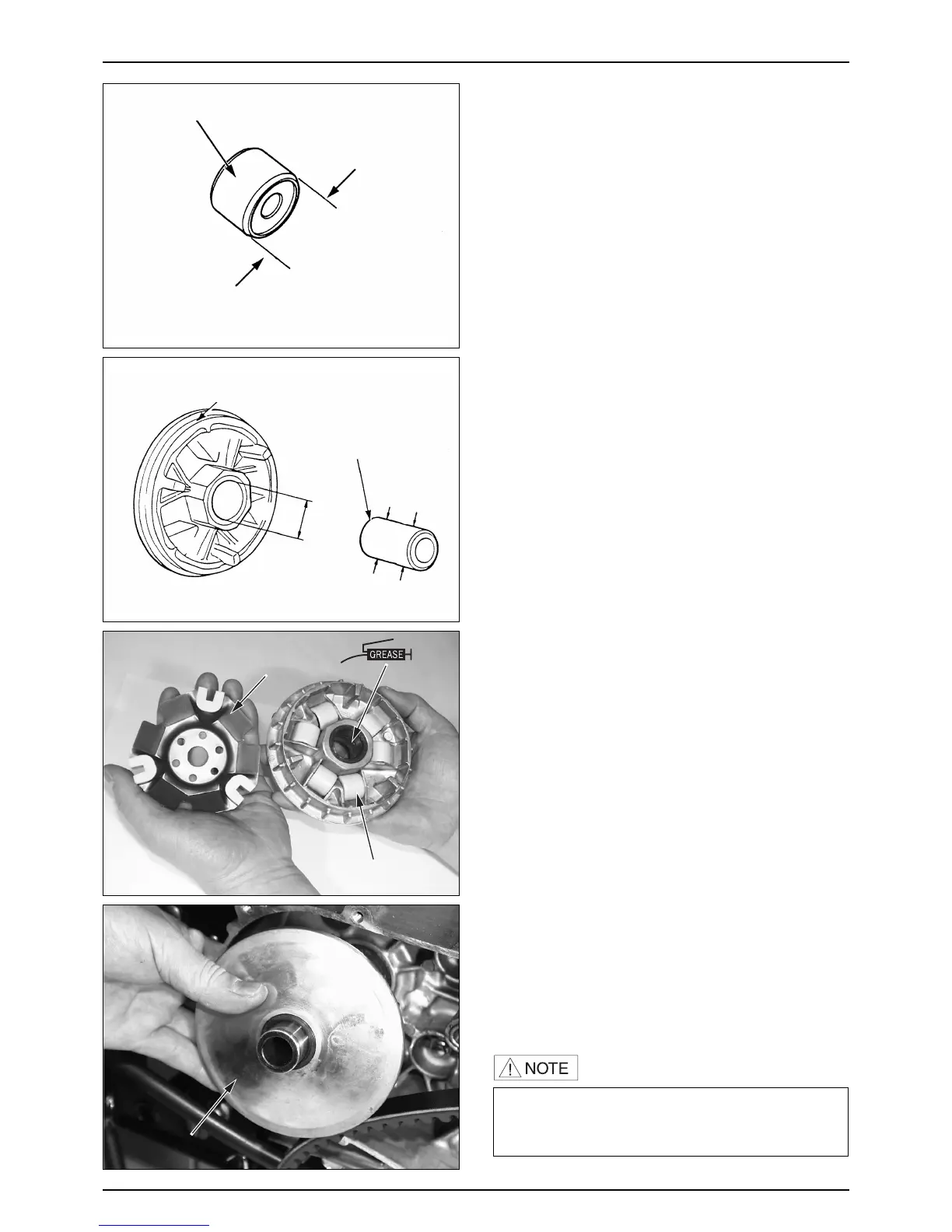

MOVABLE DRIVE FACE INSPECTION
● The weight rollers push on the movable drive face (by
centrifugal force); worn or damaged weight rollers will
interfere with this force.
● Check the rollers for wear or damage and replace as
necessary.
● Measure the O.D. of each roller, replace if the service
limit is exceeded.
SERVICE LIMIT : 19.5mm
● Check the drive face boss for wear or damage and
replace as necessary.
● Measure the O.D of the drive face boss. Replace the
boss if the service limit is exceeded.
● Measure the I.D. of the drive face. Replace it if the
service limit is exceeded.
● Movable drive face boss outer diameter.
SERVICE LIMIT : 23.960mm
● Movable drive face inner diameter.
SERVICE LIMIT : 24.025mm
MOVABLE DRIVE FACE INSTALLATION
● Install the weight roller on the movable drive face.
● Install the ramp plate.
● Apply the inside of the movable drive face with the
specified amount of grease.
SPECIFIED GREASE : ALVANIA EP2
GREASE APPLICATION : 0.5-1.5 g
● Install the movable drive face boss.
·Do not get the grease on the drive face. Remove any
misplaced grease with a degreasing agent.
·Use only the specified grease in the specified amount.
