7-9
LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION

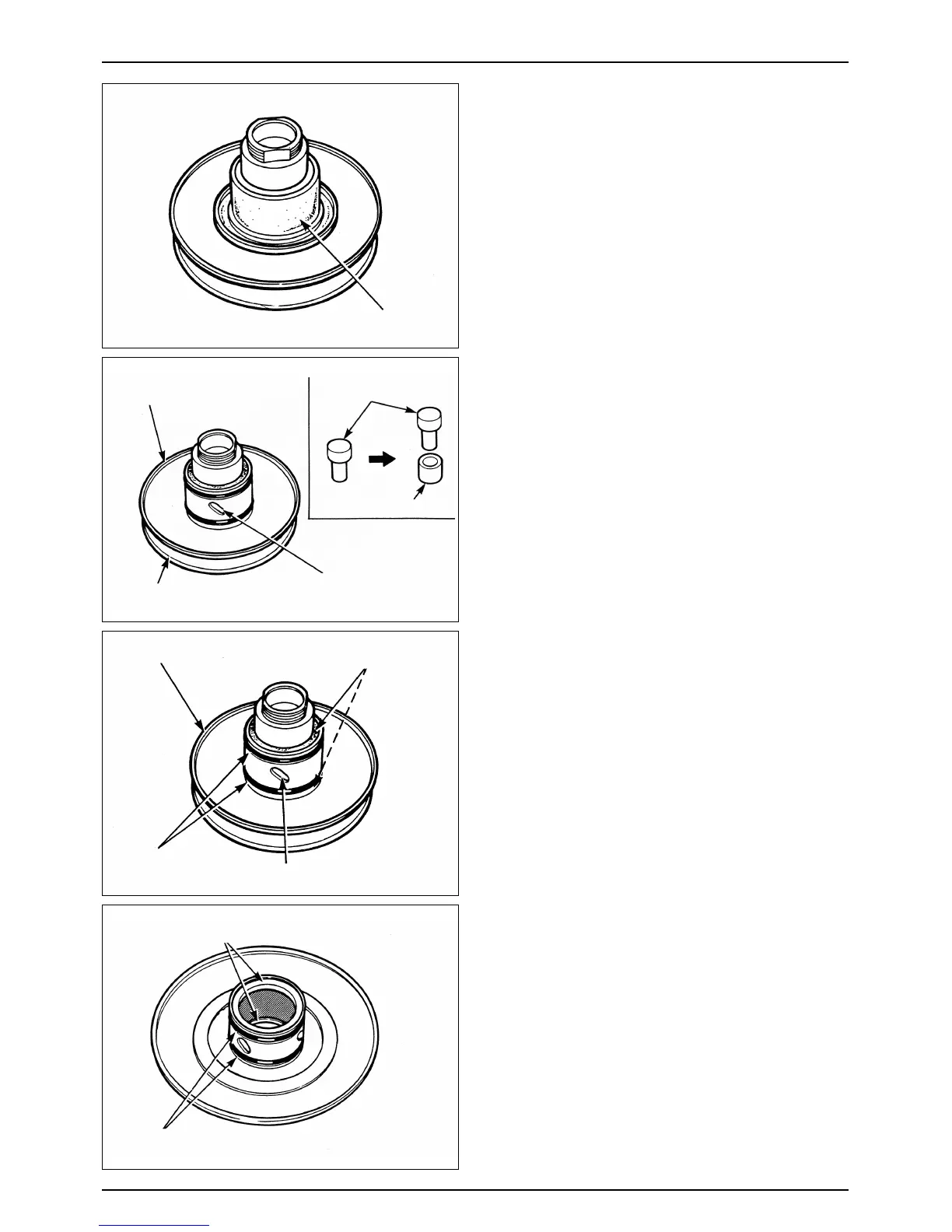

● Remove the seal collar from the driven pulley.
● Remove the guide pins and guide pin rollers and the
movable driven face.
● Remove the O-ring and oil seals from the movable
driven face
● Remove the movable driven face.
SEAL COLLAR
OIL SEAL
OIL SEAL
O-RINGS
O-RINGS
GUIDE PIN
GUIDE PIN
DRIVEN FACE
GUIDE PINS
GUIDE PIN ROLLER
MOVABLE DRIVEN FACE
MOVABLE DRIVEN FACE
