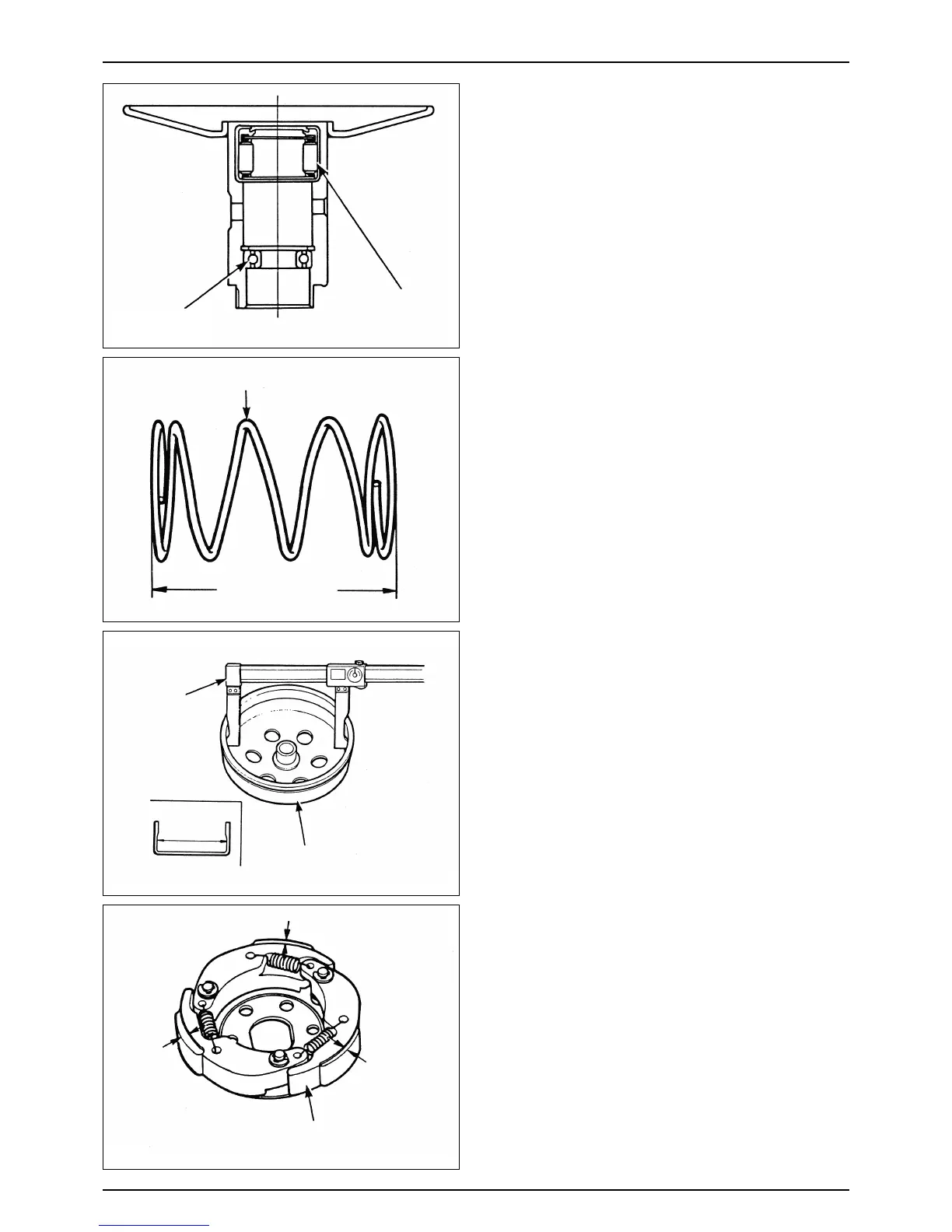

CLUTCH / DRIVEN PULLEY INSPECTION
Driven Face Bearing Inspection
● Check the inner bearing oil seal (if installed) for
damage; replace as necessary.
● Check the needle bearing for damage or excessive play
and replace as necessary.
● Turn the inner race of the outer bearing with your
finger. Check that the bearing turns smoothly and
quietly, and that the bearing outer race fits securely.
Replace the bearing if necessary.
Movable Driven Face Spring Inspection
● Measure the free length of the driven pulley spring and
replace if the service limit is exceeded.
SERVICE LIMIT : 97.23mm
TOOL : VERNIER CALIPER
Clutch Outer
● Measure the I.D. at shoe contact surface of the clutch
outer. Replace the outer if the service limit is exceeded.
SERVICE LIMIT : 120.5mm
Clutch Shoe Inspection
● Measure the thickness of each shoe ; replace if the
service limit is exceeded.
SERVICE LIMIT : 2.0mm
OUTER BALL
BEARING
MOVABLE DRIVEN FACE SPRING
FREE LENGTH
VERNIER
CALIPER
CLUTCH OUTER
CLUTCH SHOE
NEEDLE
BEARING
