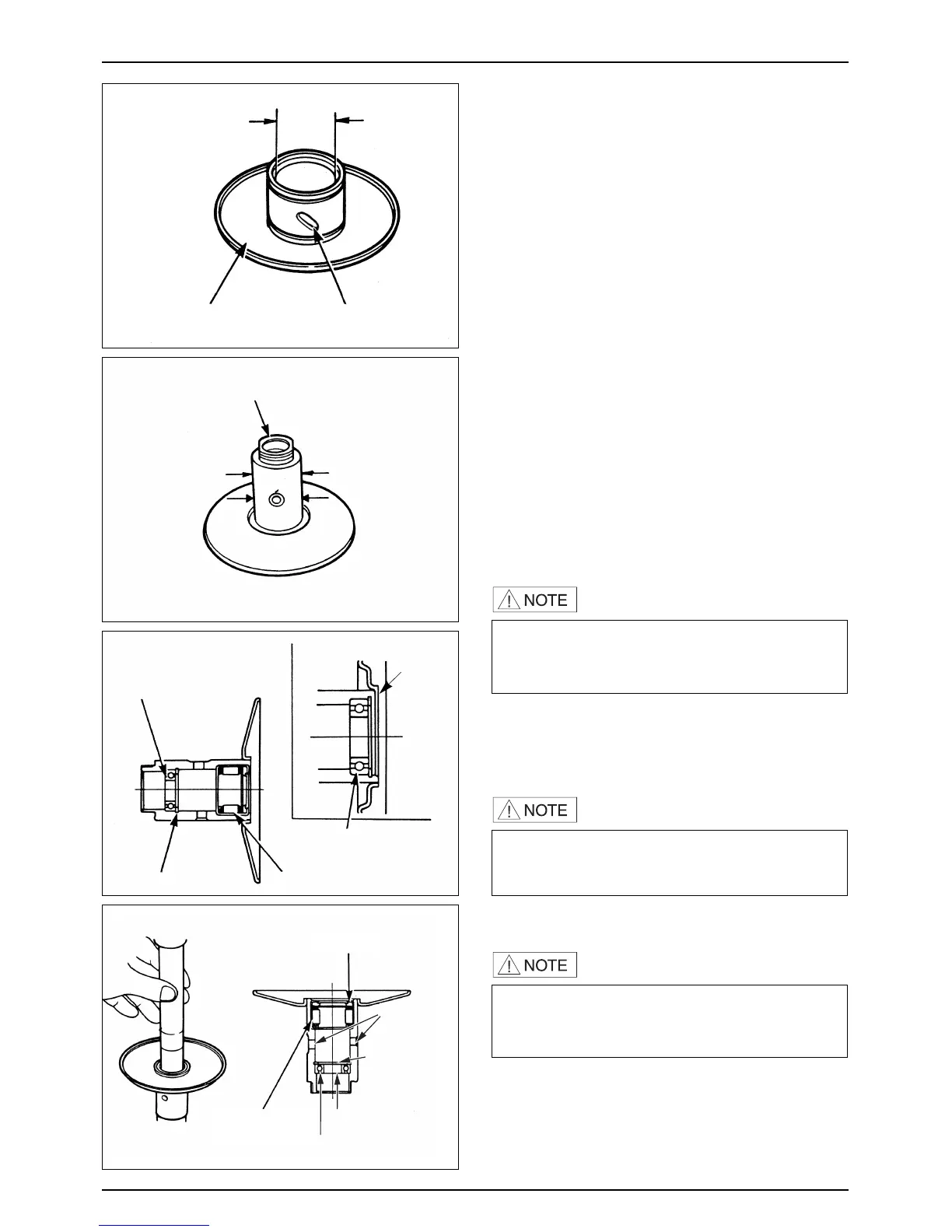

LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
● Check the following;
-Movable driven face for damage or excessive wear.
-Guide pin groove for damage or deformation.
● Replace damaged or worn parts as necessary.
● Measure the I.D. of the movable driven face;
replace if the service limit is exceeded.
SERVICE LIMIT : 38.060 mm
● Check the driven face for damage or excessive wear;
replace as necessary
● Measure the O.D. of the driven face;
replace if the service limit is exceeded.
SERVICE LIMIT : 33.94 mm
DRIVEN FACE BEARING REPLACEMENT
● Remove the inner bearing.
● Install in a new inner bearing.
● Remove the snap ring then drive out the outer bearing
toward the inner bearing side.
● Drive a new outer bearing into place with the sealed
end toward the outside. Install the snap ring securely.
·If the driven face has an oil seal at inner bearing side,
remove the oil seal first.
·If a ball bearing is used on the inside, remove the
snap ring first then remove the bearing.
·Apply the specified amount of specified grease as
shown.
GREASE APPLICATION : 9.0-9.5 g
● Install the snap ring into the groove in the driven face.
● Install a new oil seal with the lip toward the bearing (if
required).
TOOLS : BEARING DRIVER ATTACHMENT
DRIVE PILOT
·Install the bearing with the sealed side facing out.
·Install the needle bearing using a hydraulic press.
·Install the ball bearing by driving it in or using a
hydraulic press.
SPECIFIED
GREASE
SNAP RING
OUTER BEARING
SEALED SIDE
SEALED END
INNER NEEDLE
BEARING
GUIDE
GROOVE
OUTER BEARING
SNAP RING
INNER
BALL BEARING
INNER NEEDLE
BEARING
CIR-
CLIP
MOVABLE DRIVEN FACE
DRIVEN FACE
