LH. CRANKCASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
CLUTCH / DRIVEN PULLEY ASSEMBLY

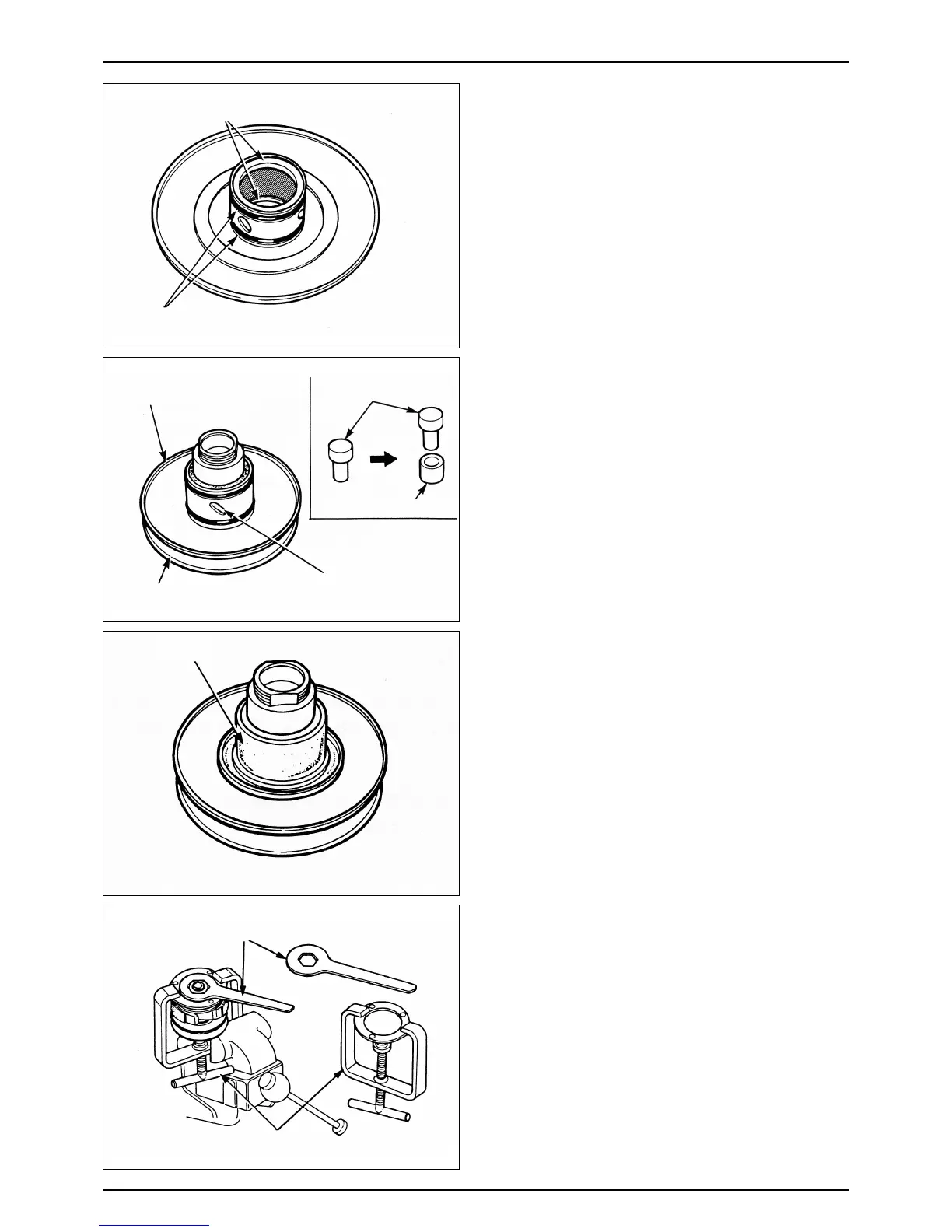

● Install new oil seals and O-rings on the movable driven
pulley face.
● Install the movable face on the driven pulley face.
● Install the guide pins, or guide pins and guide pin rollers.
● Install the seal collar.
● Assemble the driven pulley, spring and clutch in the
clutch spring compressor. Compress the assembly by
turning the tool handle until the lock nut can be
installed.
● Clamp the clutch spring compressor in a vise and
tighten the lock nut to the specified torque using the
lock nut wrench.
TORQUE VALUE : 5.0 kgf
·
m
● Remove the spring compressor.
TOOLS : CLUTCH SPRING COMPRESSOR
LOCK NUT WRENCH
OIL SEAL
O-RING
MOVABLE DRIVEN FACE
DRIVEN FACE
GUIDE PINS
GUIDE PIN
GUIDE PIN ROLLER
SEAL COLLAR
LOCK NUT WRENCH
CLUTCH SPRING COMPRESSOR
