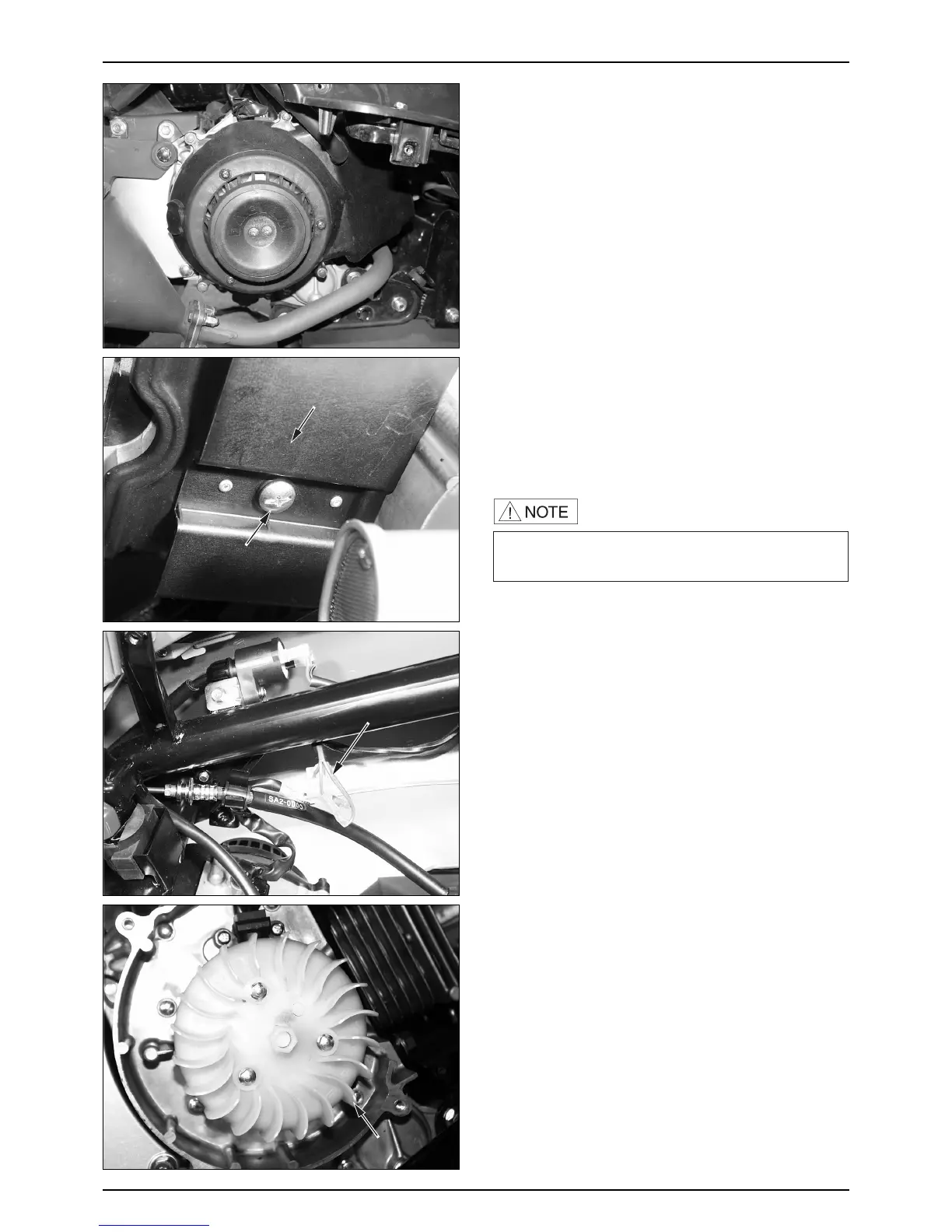

DAELIM S2 125

8-2
A.C GENERATOR/STARTER CLUTCH
● Loosen the RH. shroud 4 flange bolts and 4 tapping
screws.
● Remove the RH. shroud.
● Loosen the LH. shroud setting screw.
● Remove the LH. shroud.
● Install in the reverse order of removal.
A.C GENERATOR
REMOVAL
● Loosen the rear cushion under bolt.
● Remove the following parts.
-Luggage box (⇨3-2)
-Body cover (⇨3-4 )
-Center cover (⇨3-3 )
-Engine (⇨6-2 )
-RH. shroud comp (⇨8-2 )
SHROUD
REMOVAL
● Remove the following parts.
-Luggage box (⇨3-2 )
-Center cover (⇨3-3 )
-Engine (⇨6-2 )
● Remove the A.C.G wiring coupler and connector
connected to the wire harness.
● Remove the A.C.G wiring from the A.C.G wiring
setting clamp securing the engine and frame.
● Loosen the 3 cooling fan bolts.
·Before removing the RH. shroud, be sure to remove
the RH. floor side cover and rear cushion upper bolt.
SETTING SCREW
LH. SHROUD
A.C.G WIRING
COUPLER
COOLING FAN
