8-3
A.C GENERATOR/STARTER CLUTCH

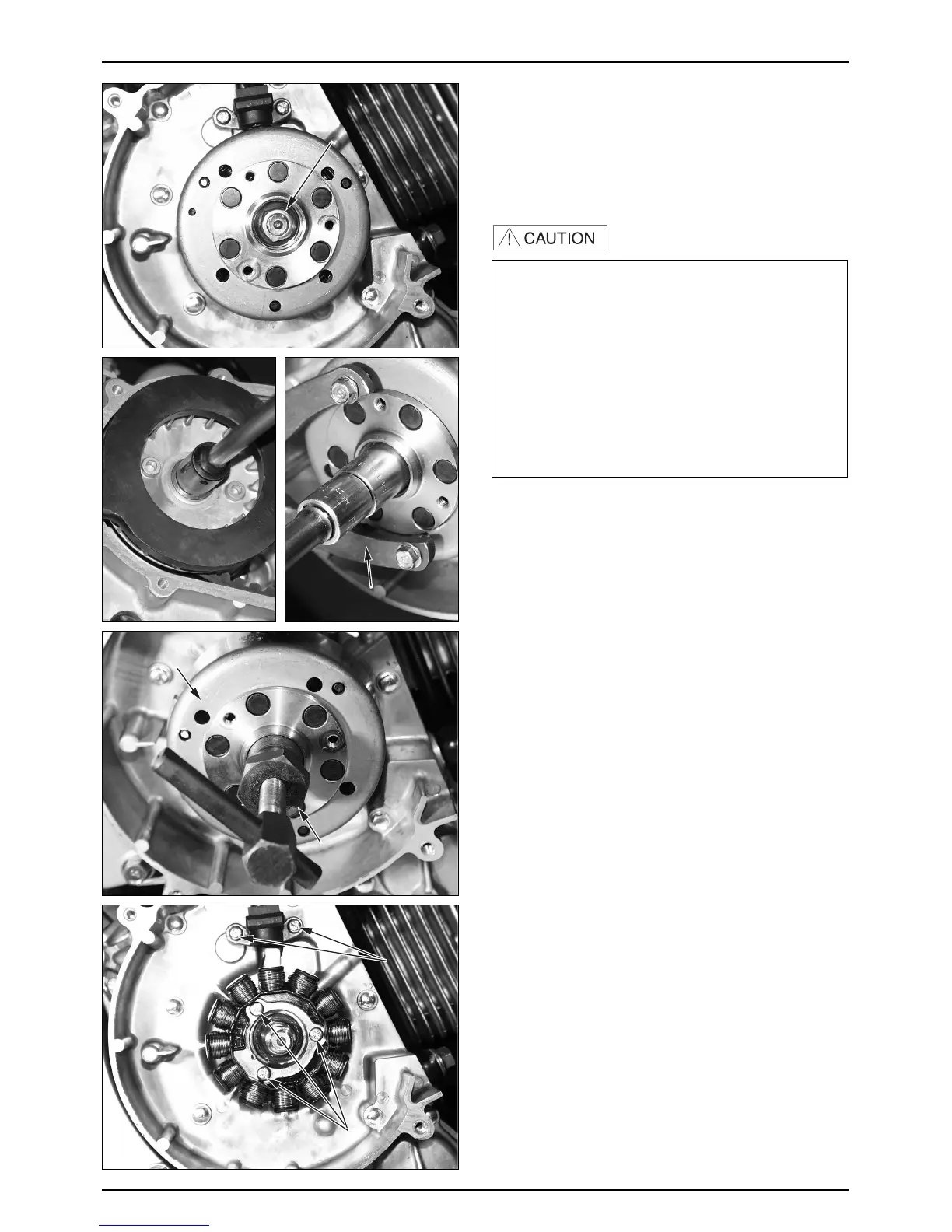

● Install the universal holder on the flywheel.
● If the universal holder connot be used, remove the LH.
crankcase cover at the left side of the crankshaft, and
hold the drive face with the drive face holder.
● Loosen the flange nut securing the fly wheel, and
remove the flywheel using the A.C.G rotor puller.
● Loosen the 2 pan screws securing the pulse generator,
and remove it.
● Loosen the 3 starter setting pan screws, remove the
stator.
TOOLS : A.C.G ROTOR PULLER
UNIVERSAL HOLDER
DRIVE FACE HOLDER
·Insert the puller shaft and remove the flywheel after
inserting the A.C.G rotor puller and securing it with
spanner.
·The flywheel may easily removed if you rotate the
puller while tapping the roller shaft with metal
hammer.
·Always use a holder and a puller to remove the
flywheel. Do not try to remove the flywheel by
hammering directly on it. The crankshaft or
components could be damaged.
·After removing the flywheel, check the woodruff
key for damage and wear.
