9-3
CYLINDER HEAD / VALVE
CAMSHAFT

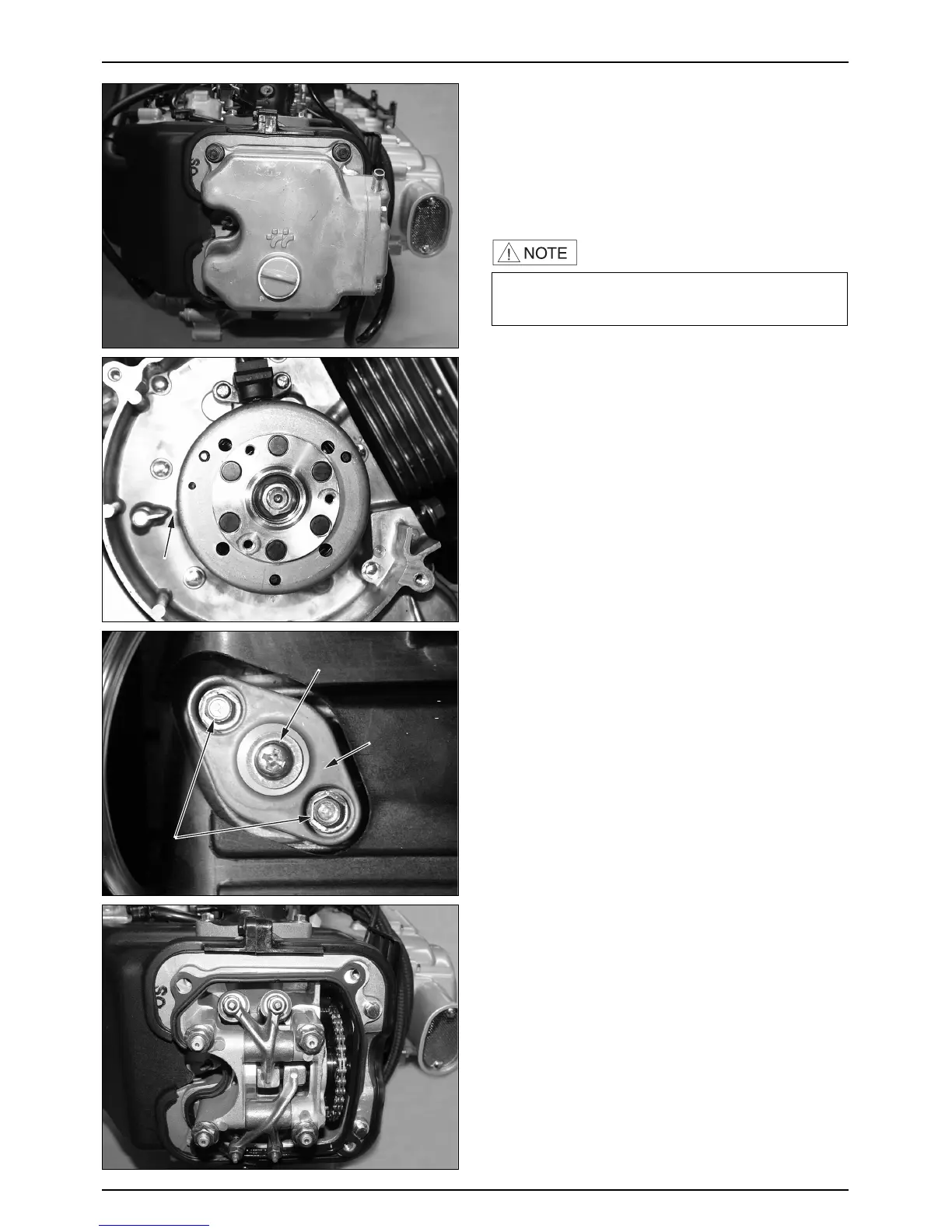

REMOVAL
● Remove the luggage box. (⇨3-2 )
● Remove the center cover. (⇨3-3 )
● Loosen the cylinder head cover bolts, remove the cover.
● Remove the shroud grommet B of the fan cover.
● Turn the crankshaft to the left, and align the “T”mark
of the flywheel with the index mark of the RH.
crankcase cover.
● Verify that the piston is located at the top dead center.
(Make all camshaft lobes face downward.)
● If all camshaft lobes face upward, rotate the crankshaft
to the left for 1 turn (360°), and align the “T” mark
with the index mark once again.
● Loosen the pan screw of the cam chain, remove the
tensioner flange bolts and tensioner lifter.
● Loosen the 4 camshaft holder 8mm nuts.
● Remove the cam cover plate.
● Remove the camshaft holder from the cylinder head.
·The camshaft can be maintained without
removing the engine.
