DAELIM S2 125

9-4

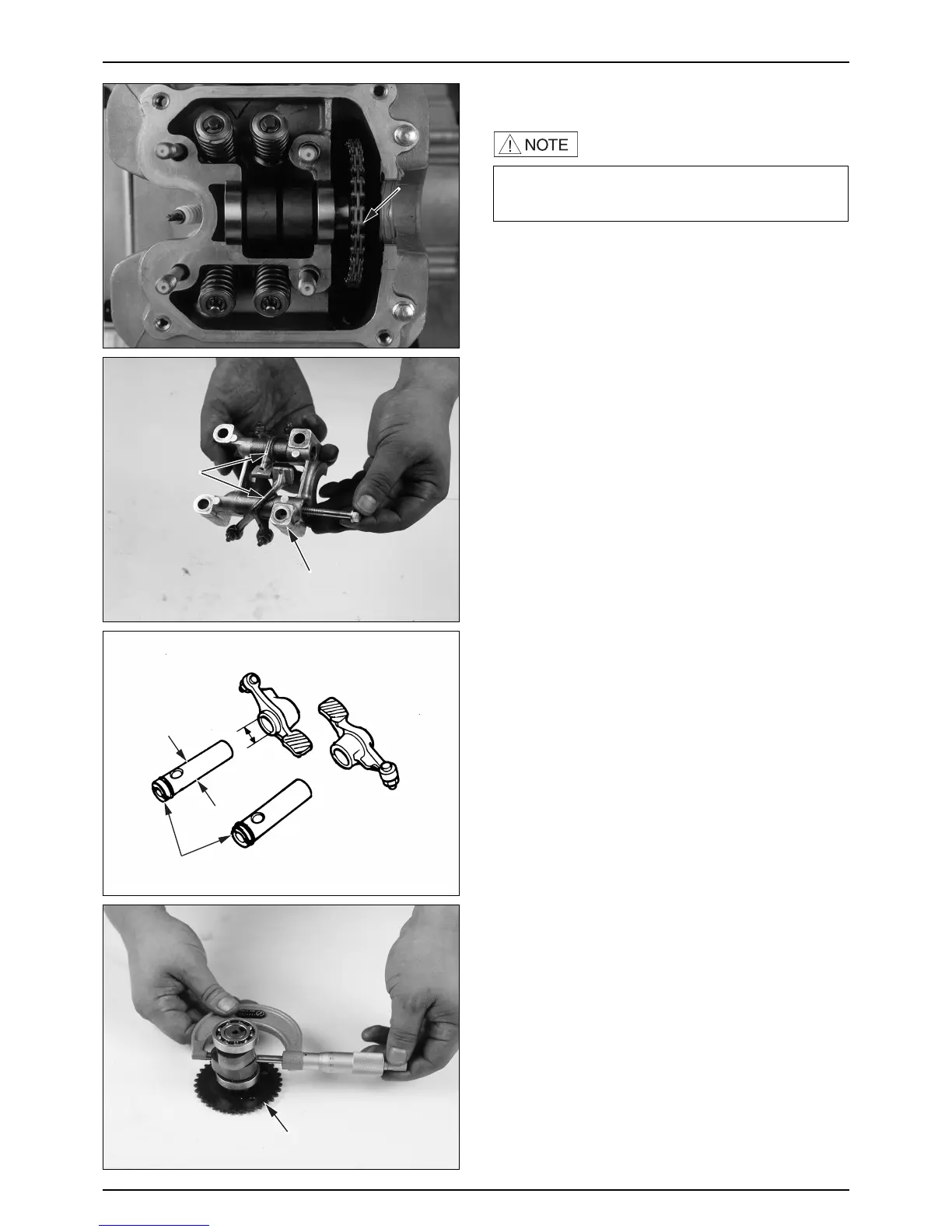

CYLINDER HEAD / VALVE
● Insert the 6mm bolt into the rocker arm shaft, and
pulling bolts to remove the rocker arm shaft.
● Remove the rocker arm.
● Remove the other side rocker arm shaft and rocker arm
in the same sequence.
CAMSHAFT INSPECTION
● Check the rocker arm and rocker arm shaft for wear or
damage.
● Measure the inner diameter of the rocker arm.
SERVICE LIMIT : 12.060 mm
● Measure the outer diameter of the rocker arm shaft.
SERVICE LIMIT : 11.950 mm
● Check the cam lobes of the camshaft for wear or
damage.
● Measure the height of the cam lobe.
SERVICE LIMIT : IN : 33.625 mm
EX: 33.765 mm
·Take precautions not to allow the cam chain to drop
into the crankcase.
● Remove the cam chain from the camshaft.
CAM CHAIN
CAM SHAFT HOLDER
ROCKER
ARM
ROCKER ARM SHAFT
CAM SHAFT
