DAELIM VJF125 - Engine Installation

7-3

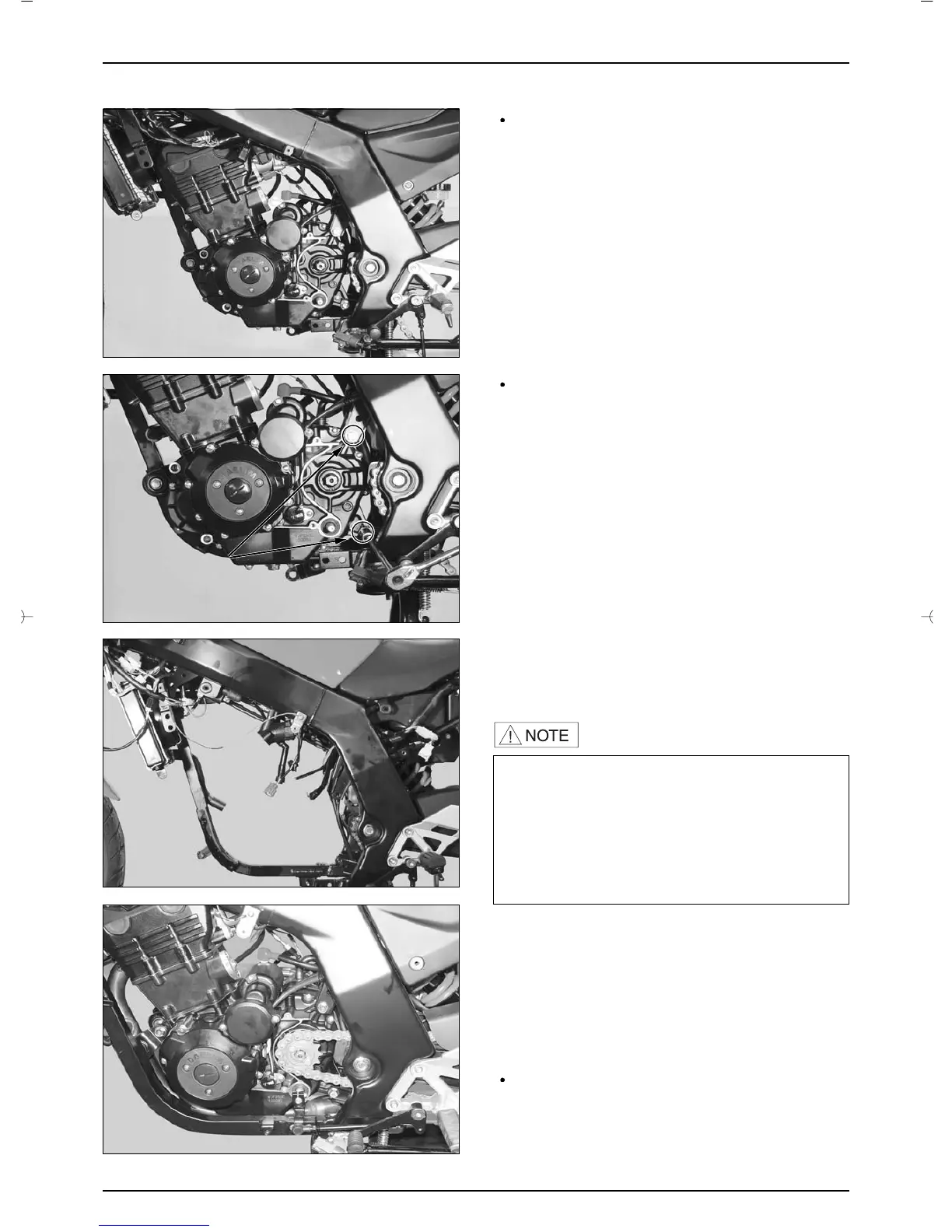

ENGINE REMOVAL/INSTALLATION
Remove the 2 rear engine hanger bolts, then
remove the LH. downtube comp. B.
Remove the bolt and flange bolt securing engine
hanger plate then remove the engine.
ENGINE INSTALLATION
Engine installation is essentially the reverse order of
removal.
TORQUE :
ENGINE HANGER BOLTS :
(FRONT ) 4.9kgf · m(49N · m)
(REAR ) 4.9kgf · m(49N · m)
GEAR CHANGE ARM BOLT 1.2kgf · m(12N · m)
DRIVE SPROCKET BOLT 1.2kgf · m(12N · m)
Inspect the following after installing the engine.
- Engine oil level
- Throttle grip operation and free play.
- Clutch lever operation and free play.
- Drive chain slack
• Carefully align mounting points with the jack to
prevent damage from mounting bolt threads and
wire harness and cables.
• Be careful not to damage any part of the frame
and bolt nuts.
• Be sure to install the cables, tubes, and wires to
their correct positions(⇨ 1~8).
