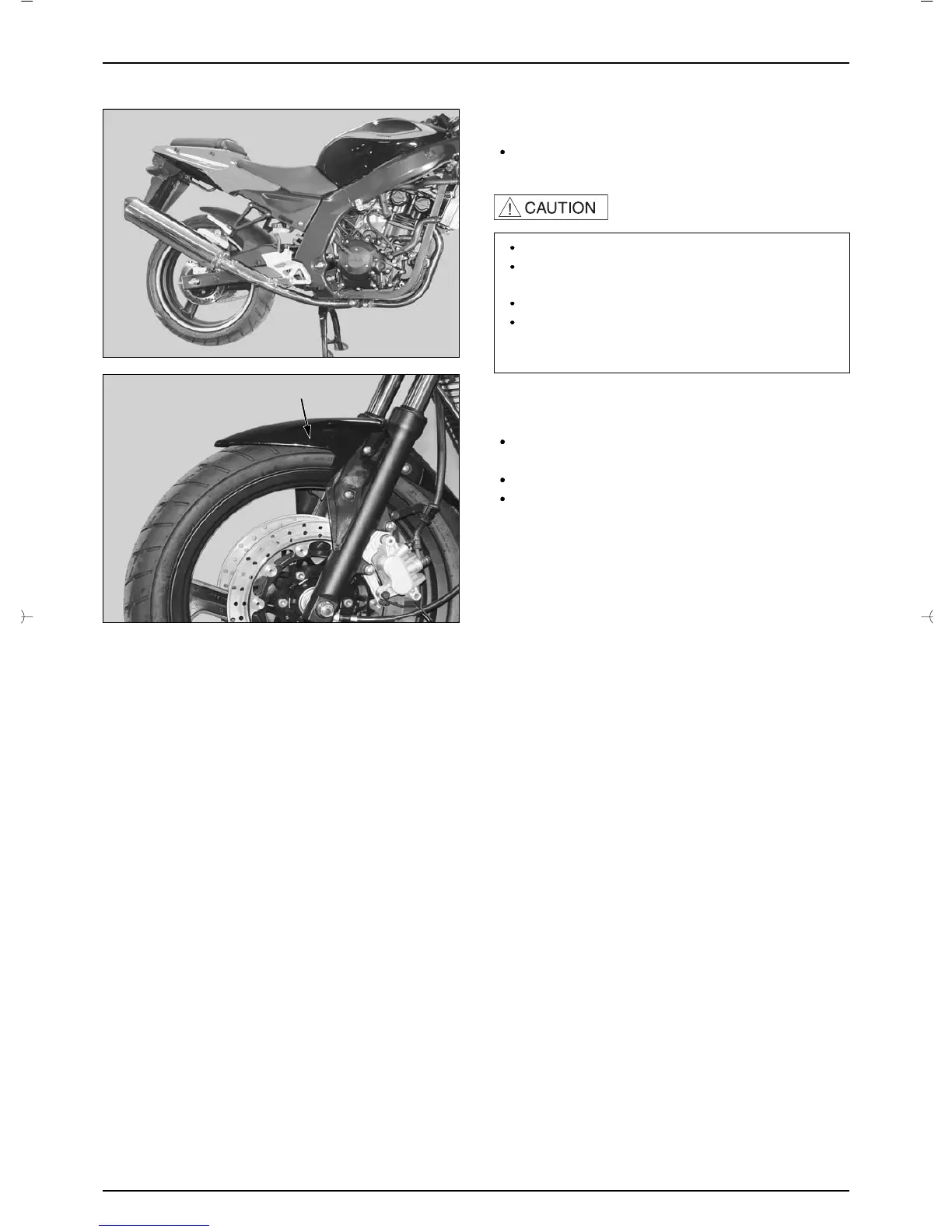

DAELIM VJF125 - Front Fender

13-5
EXTERNAL PARTS
INSTALLATION
Install the removed parts in the reverse order of
removal.
FRONT FENDER
Remove the front fender mounting 6pcs special
screws. (RH/LH.)
Remove the front fender forward.
Install in the reverse order of removal.
Check the protrusion of the exhaust pipe stud bolt.
Install the new exhaust pipe gasket onto the exhaust
ports of the cylinder head.
Install the new gasket onto the exhaust pipe.
When install the muffler temporarily install the
flange bolt to the damper stay and the hex cap nut
then tighen the hex cap nut and the flange bolt.
