16-13
HYDRAULIC BRAKE
INSTALLATION

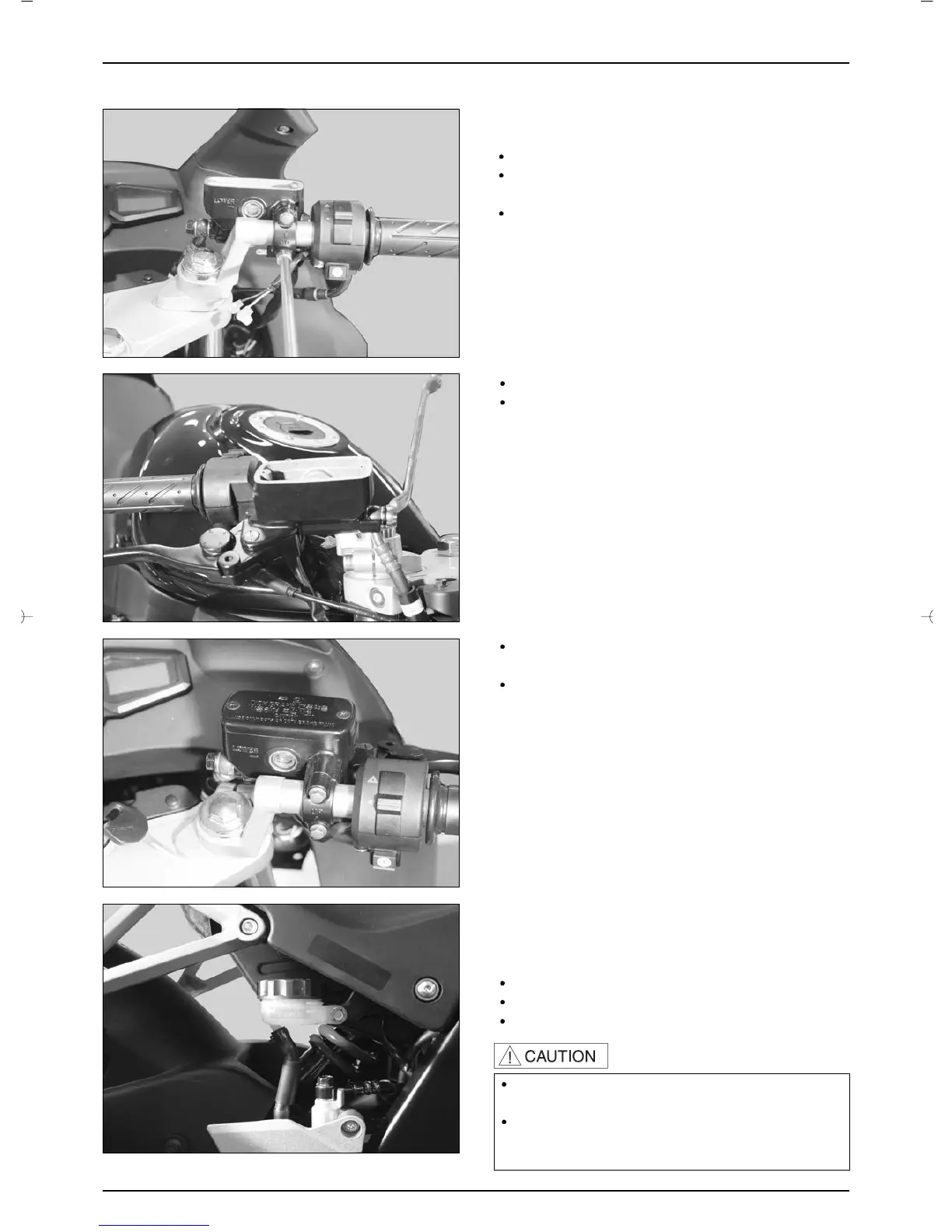

Place the master cylinder assembly on the handlebar.
Install the master cylinder holder with the "UP" mark
facing up.
Tighten the upper bolt first, then the lower bolt.
Install the oil bolt and new washer on brake hose.
Tighten the brake hose oil bolt.
TORQUE : 3.4 kgf
·
m
Connect the front brake switch wire.
Fill the reservoir to the upper level and bleed the brake
system. (⇨16-5)
REAR MASTER CYLINDER
REMOVAL
Drain the brake fluid. (⇨16-3)
Remove the rear reservoir mounting bolt.
Remove the rear brake hose oil bolt and washers.
Brake fluid causes damage to the painted, plastic or
rubber parts. Do not spill fluid on these parts.
If contaminated, gently wipe off the fluid with a piece
of cloth or wash in water. Close hose joints properly to
prevent leakage of brake fluid.
