DAELIM VJF125 - Rear Wheel

15-3

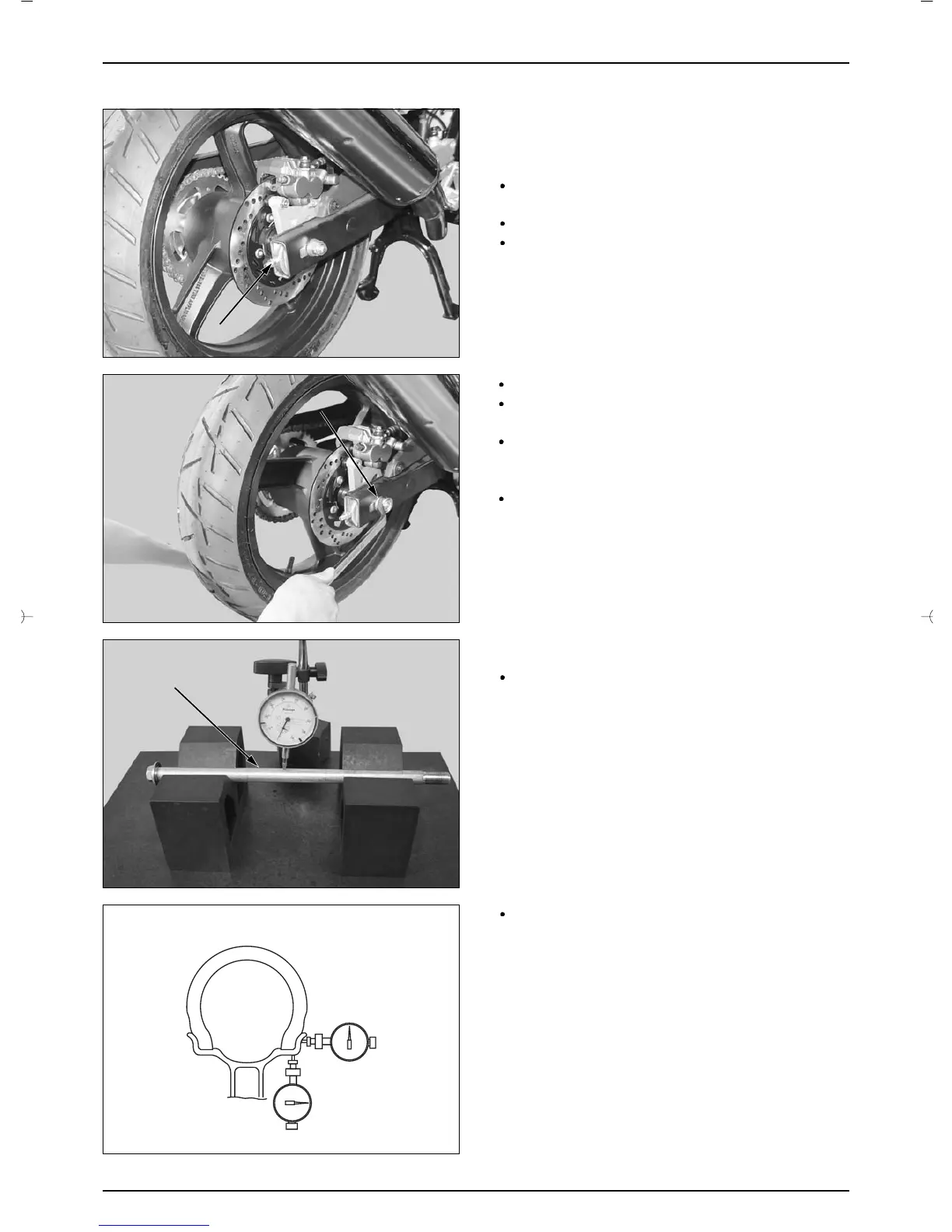

REAR WHEEL/REAR SUSPENSION
REAR WHEEL
REMOVAL
Erect the motorcycle using a main stand.
Loosen the chain adjust nuts and lock nuts.
Remove the axle nut (U-nut).
INSPECTION
Inspect the bending of axle shaft.
SERVICE LIMIT : 0.20mm
Spin the wheel slowly and read the runout.
SERVICE LIMIT : RADIAL : 2.0mm
SERVICE LIMIT : AXIAL : 2.0mm
Push the rear wheel forward.
Remove the drive chain from the driven sprocket.
Remove the axle from the left side and remove the rear
wheel.
Remove the side collars.(2EA)
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
DIAL GAUGE
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
AXLE SHAFT
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
CHAIN ADJUST
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
REAR AXLE NUT
