10-10
CYLINDER HEAD / VALVES

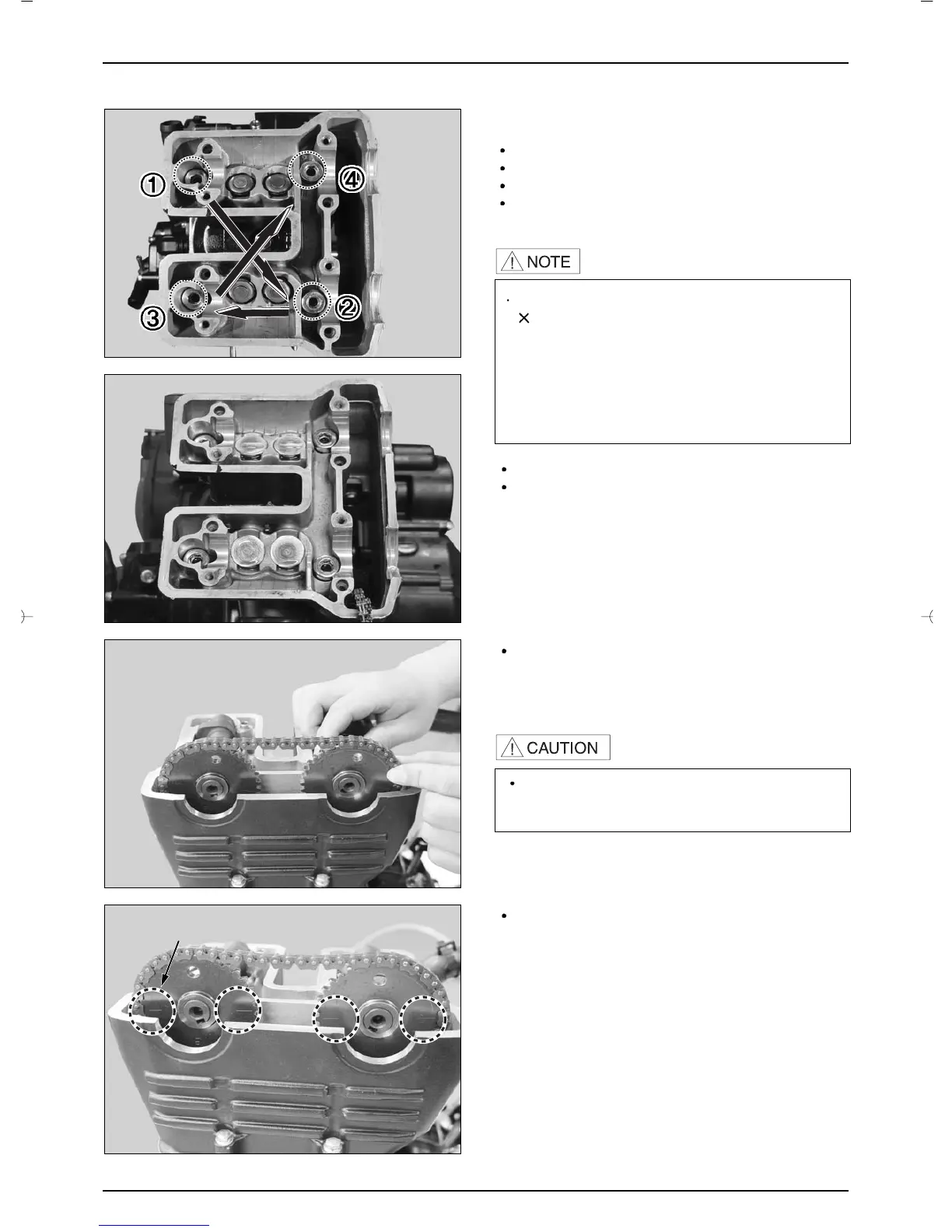

When install the ‘cylinder head special socket nut’ (M8
1.25), tighten them for 2times as shown picture.
①
half installation
→②
Complete installation
→
③
Complete installation
→④
Complete installation
→
①
Complete installation
TORQUE : 4.0 kgf
··
m
CYLINDER HEAD INSTALLATION
Clean any gasket material from the cylinder surface.
Install the cam chain guide to the cylinder.
Install the dowel pins and new gasket.
Install the cylinder head.
(Install in reverse order of removal)
Assemble the shim in place.
After checking the comshaft for damage, put it to the
cylinder head.
Slowly rotate the crankshaft counterclockwise, and
align the “T”mark of the flywheel with the index
mark of the LH. crankcase cover.
Take precautions not to allow the cam chain to drop
into the camshaft timing gear while turning the
camshaft.
Apply engine oil to the camshaft then assemble the
cam chain and cam sprocket after matching the cam
sprocket timing mark in parallel with the top of the
cylinder head.
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
LOCATION OF TIMING MARK
