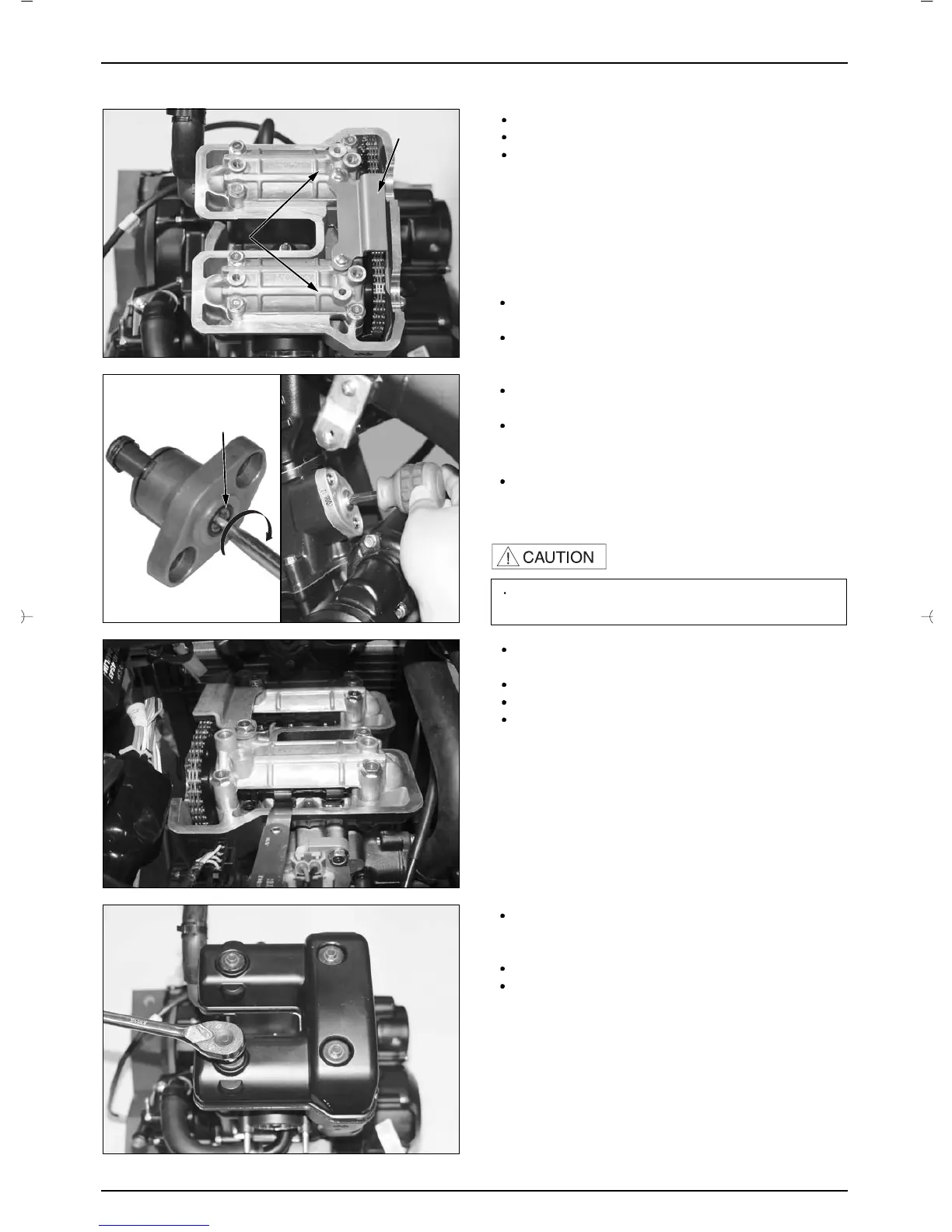

10-11
CYLINDER HEAD / VALVES
Install the dowel pins on the cylinder head.
Install the camshaft holder.
Install the cam chain guide.
If the cam chain tensioner lifter is dropped, the shaft
will advance by the spring force.
Remove the sealing screws and o-ring from the cam
chain tensioner.
Rotate the tensioner shaft clockwise with a small
screwdriver, and insert the shaft into the body
completely.
Assemble a new gasket to the tensioner lifter, and
install the tensioner lifter on the cylinder.
Install tensioner lifter bolt.
TORQUE :
1.2 kgf
··
m
Install the O-ring and sealing screw to the tensioner
lifer.
TORQUE :
0.4 kgf
··
m
Fill clean engine oil into the operating parts of the
cylinder head.
Adjust the valve clearance.
If the valve clearance is unfit, adjust the shim.
Install the 30mm cap and A.C generator cap.
TORQUE :
30mm CAP : 0.8kgf
··
m
A.C.GENERATOR CAP : 0.6kgf
··
m
Remove oil from the cylinder head cover grooves, and
accurately assemble the gasket to the cylinder head
cover.
Install the cylinder head cover.
Tighten the cylinder head cover bolt.
TORQUE : 1.0 kgf
··
m
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM CHAIN GUIDE
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
CAM SHAFT HOLDER
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
