9-5

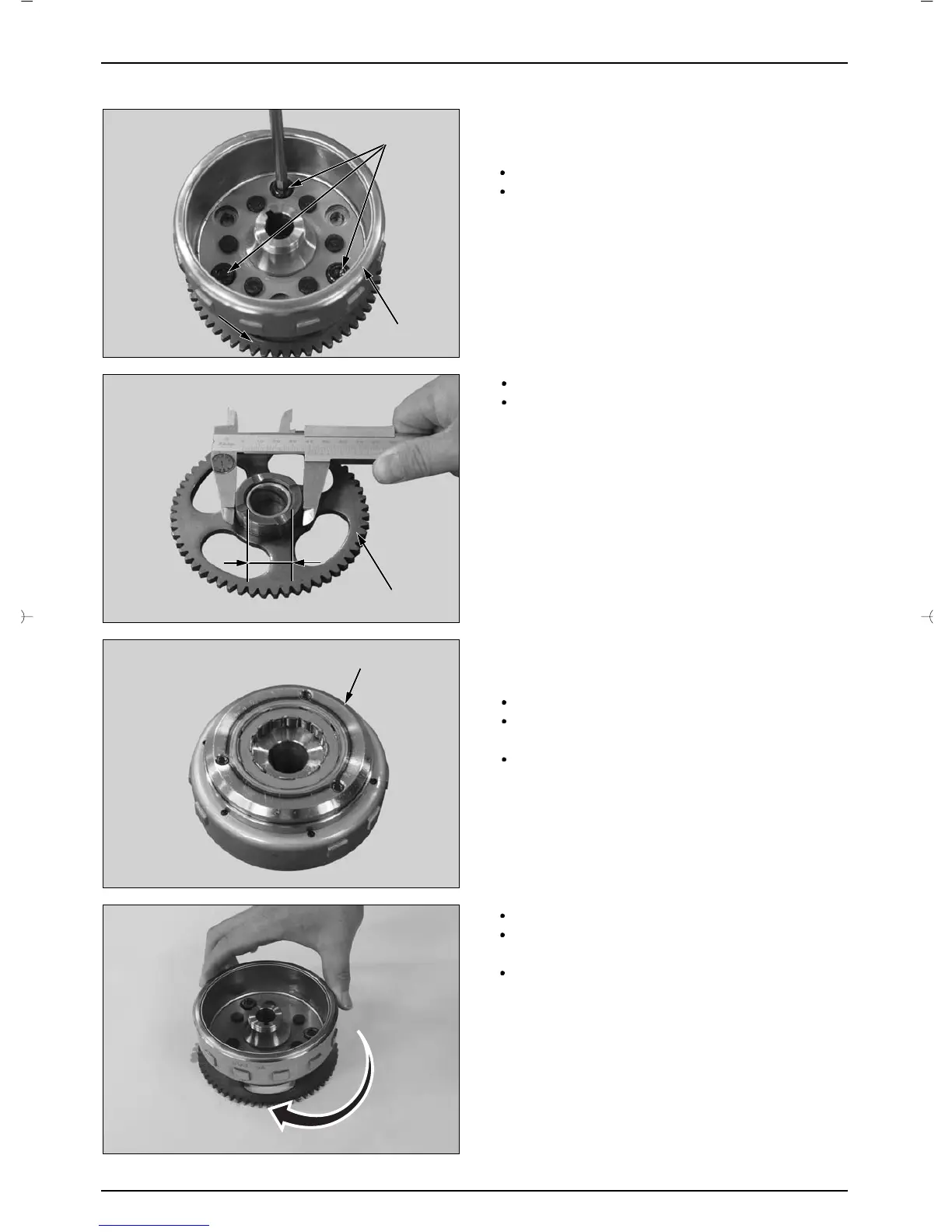

A.C GENERATOR / STARTER CLUTCH
STARTER CLUTCH
DISASSEMBLY
Remove the flywheel.
Remove the three socket bolts, and remove the
starter clutch (one way clutch) from the flywheel.
INSTALLTION
Check the one-way clutch for wear or damage.
Install the one-way clutch flange into the clutch
outer.
Apply the screw locking bond to the socket bolt
and install it.
TORQUE : 3.2kgf-m
Check the starter driven gear for damage or wear.
Measure the starter driven gear I.D. and O.D.
SERVICE LIMIT : O.D. : 39.607mm
I.D. : 22.100mm
Grip the flywheel.
Check the operation of the one-way clutch by
turning the driven gear.
You should be able to turn the driven gear
counterclockwise smoothly, but the gear should not
turn clockwise.(as like photo)
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
STARTER DRIVEN GEAR
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
FLY WHEEL COMP
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
STARTER ONE-WAY CLUTCH ASSY
