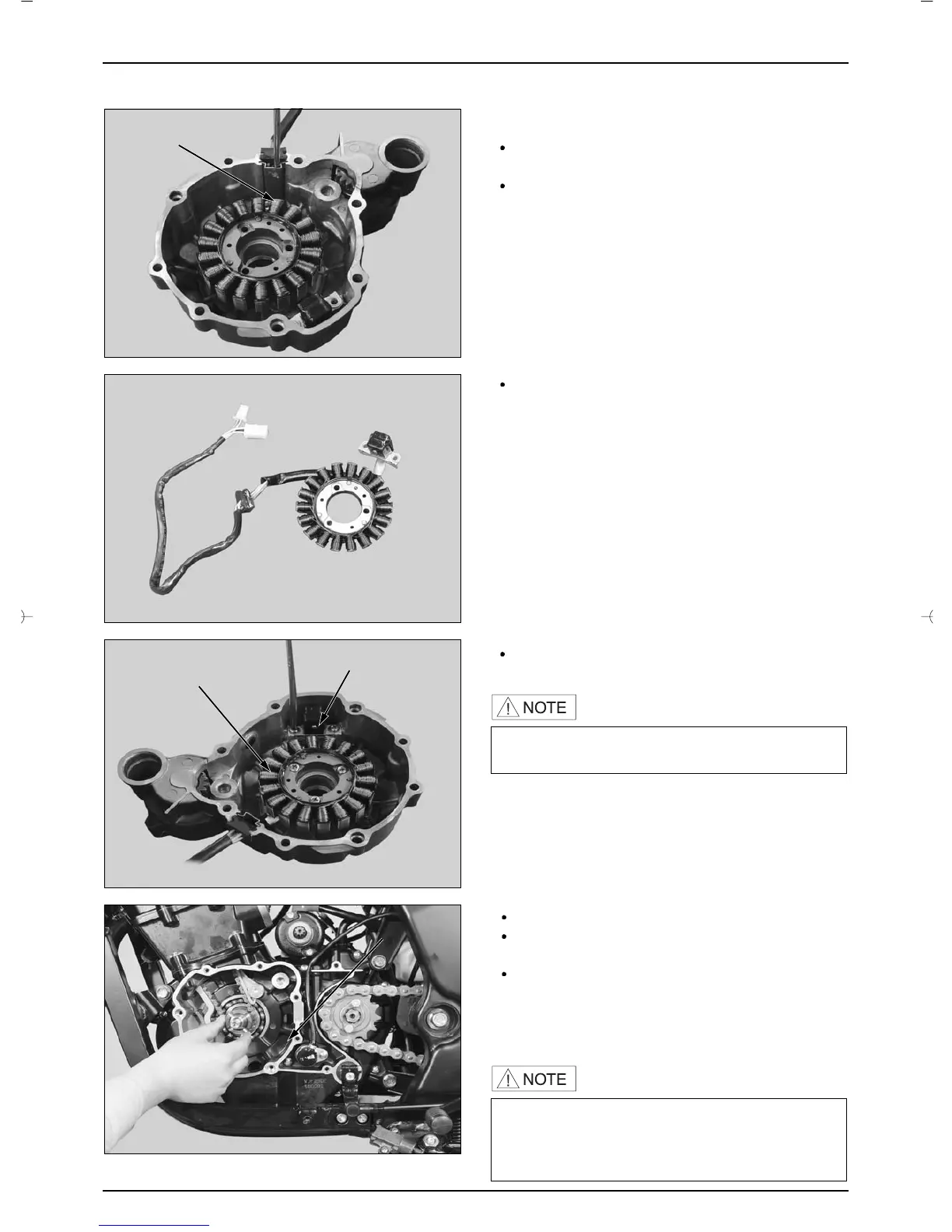

DAELIM VJF125 - Page 137

9-6
A.C GENERATOR / STARTER CLUTCH
Loosen the stator screw and remove the stator.
STATOR REMOVAL / INSTALLATION
Remove the crank position sensor screw, then
remove crank position sensor.
Remove the wire guide using a long nose plier and
⊖ screwdriver.
Install in the reverse order of removal.
INSTALLTION
Install the starter driven gear collar.
Clean the taper part of crank shaft and remove the
dust.
If installing the rotor with dust in taper part, the
key will be damaged. Because the contacted area
of taper will be small and it will occur the stress in
the woodruff key.
• Fix the grommet to groove part correctly.
• After checking whether inside magnet of rotor is
attached by the bolts and nuts, install them. If
installing the rotor with the foreign material, the
starter coil is damaged.
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
WIRE GUIDE
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
STATOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
CRANK POSITION SENSOR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
STARTER DRIVEN GEAR COLLAR
