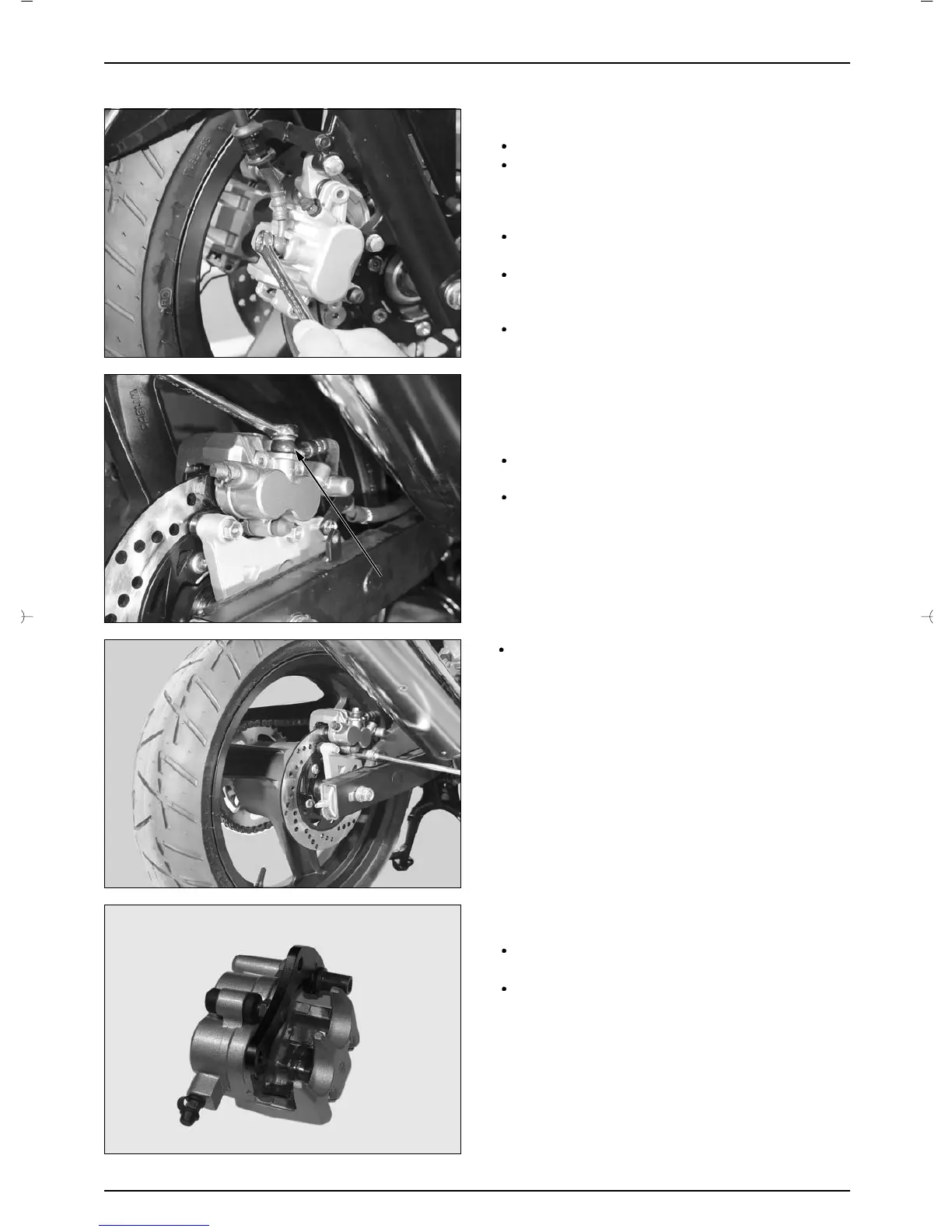

DAELIM VJF125 - Rear Brake Caliper

16-20
HYDRAULIC BRAKE
Remove the rear caliper bracket bolts, caliper and the
brake pads. (16-7)
INSTALLATION
Install the front caliper to front fork.
Tighten the caliper mounting bolts to the specified
torque.
TORQUE : 3.0kgf
·
m
Install the brake hose to the caliper body with two new
2 oil bolts washers and oil bolts.
Tighten the oil bolt to the specified torque.
TORQUE : 3.4kgf
·
m (34 N
·
m)
Fill the brake fluid to upper level, bleed the brake
system. (16-5)
DISASSEMBLY
Remove the spring, slide pin, caliper bracket and boot
from the caliper body.
If there is any wear or damage in the boot, replace it
with a new one.
REAR BRAKE CALIPER
REMOVAL
Drain the brake fluid. (16-3)
Remove the oil bolt and oil washer.
