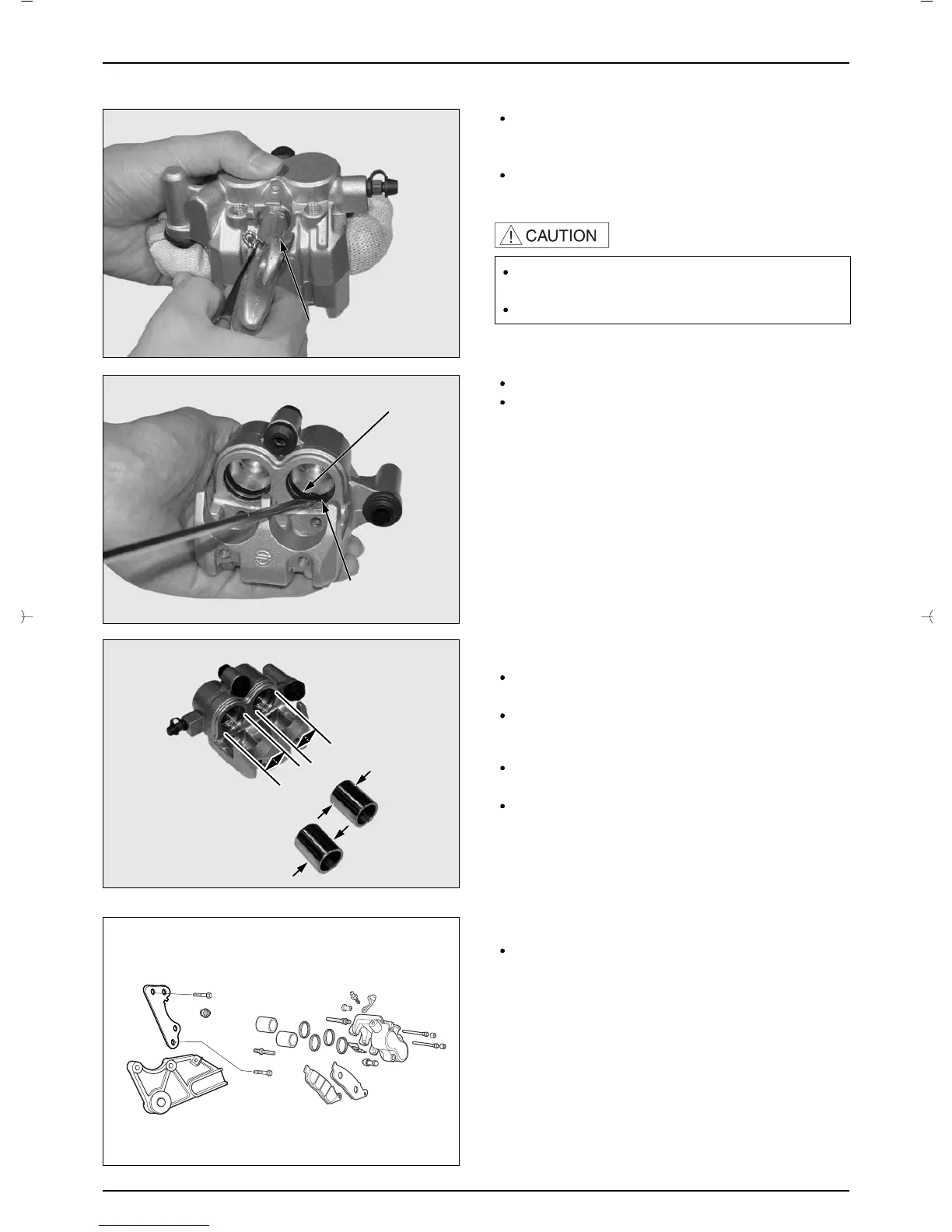

HYDRAULIC BRAKE

ASSEMBLY

Clean the piston seal, dust seal with brake fluid install

it into caliper groove.

Wrap the caliper with piece of cloth to avoid piston

and brake fluid leakage and facing the piston

downward.

Remove the piston from the caliper while blowing the

low piessure air in the opening of the brake hose.

Remove the piston seal and dust seal.

Clean the caliper inside and piston with brake fluid.

Do not use high perssure air or bring the airgun too

close.

Do not touch the inside of caliper.

PISTON SEAL

DUST SEAL

INSPECTION

Check the appreance of caliper for damage or

scratches..

Measure the caliper I. D.

SERVICE LIMIT : 25.070mm

Check the appreance of pistons for damage or

scratches.

Measure the piston O. D.

SERVICE LIMIT : 24.870mm

AIR GUN
