DAELIM VJF125 - Terminal Arrangement of the ECU

EMS(Engine Management System)
5-4

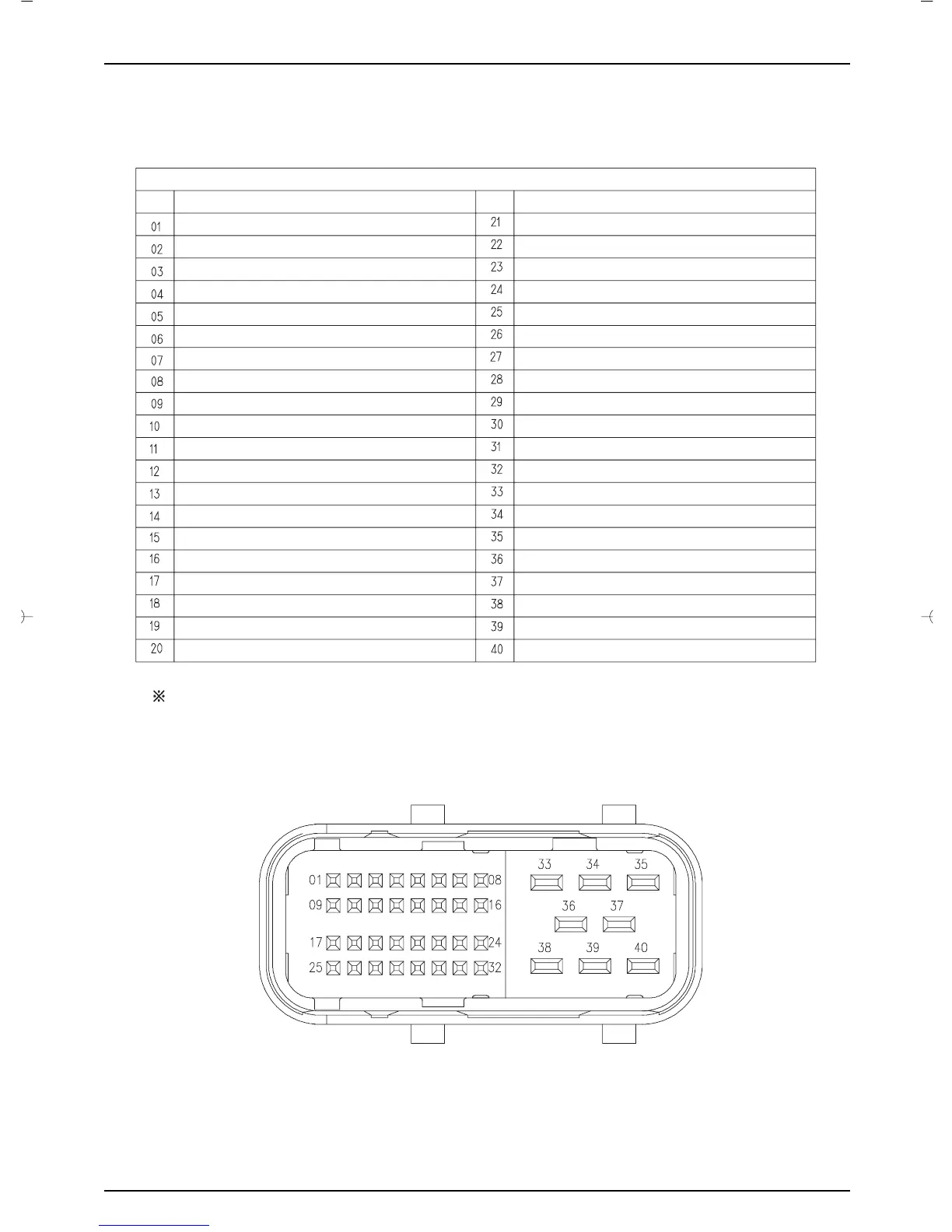

3. TERMINAL ARRANGEMENT OF THE ECU
ECU PIN NO. VS FUNCTION
FUNCTION
ECU Earth
Oxygen sensor Earth
Intake pressure sensor Earth
TPS. ETS Earth
Engine KILL
-
-
-
ECU Earth
After main key turn on, Battery power
-
Oxygen sensor Signal
Side stand Signal
-
-
-
Battery Power supply
TPS Power (5V) supply
Throttle Position Sensor Signal
Engine Temperature Sensor Signal
Third Gear
Crank Position Signal B
Communication LOW
MIL
Battery Power
Intake pressure sensor power(5V)
Intake pressure sensor Signal
Intake temperature sensor Signal
Neutral Gear
Crank Position Signal A
Communication HIGH
Engine Speed Signal
Idle Speed Actuator
Oxygen sensor Heat
Ignition coil Earth
-
Ignition Signal
HEad lamp relay Signal
Fuel pump relay Signal
Injector Signal
PIN NO.
PIN NO.
FUNCTION
Remarks
•ECU PIN NO. 6,7,8,11,14,15,16,36 were not connected.
•Terminal arrangement is based on the ECU.
