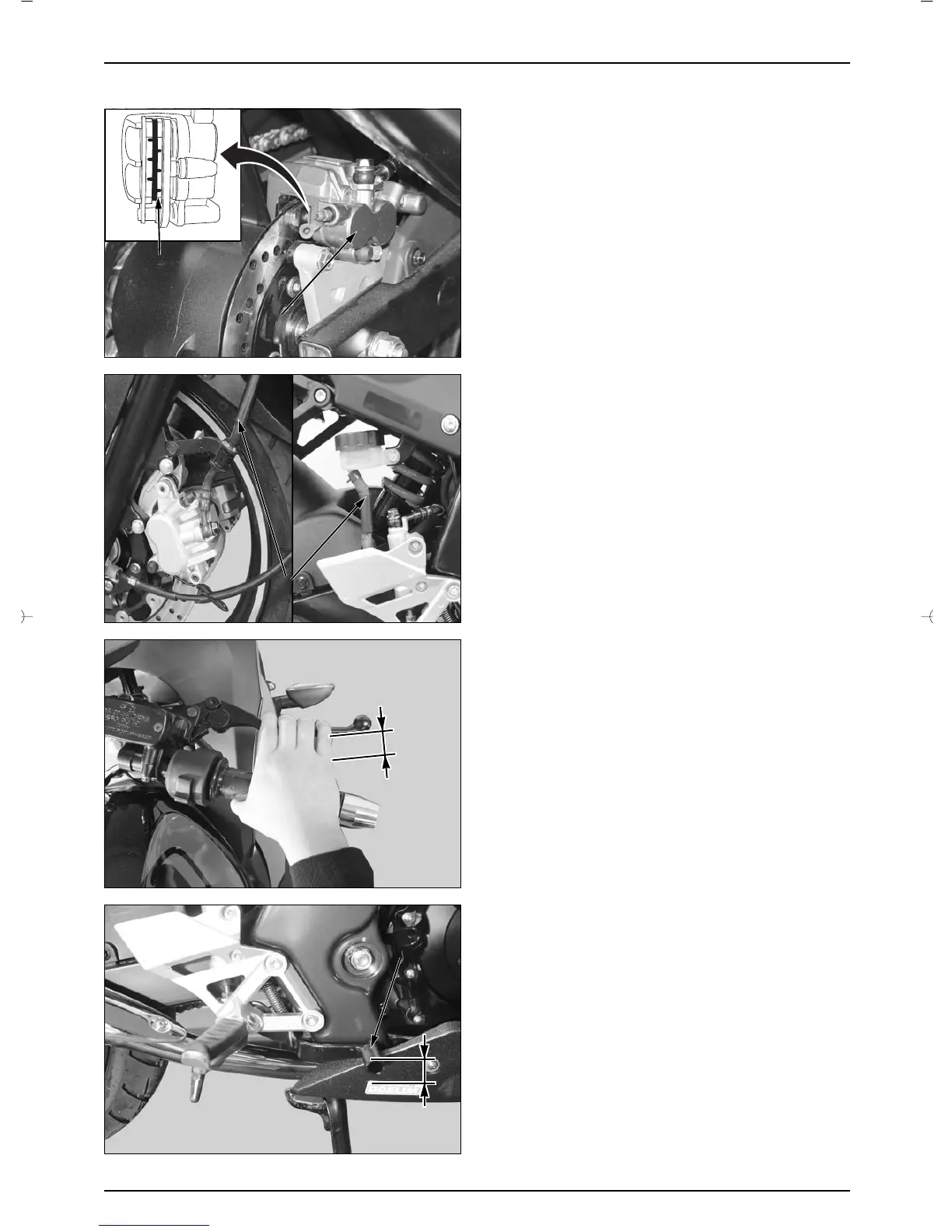

BRAKE SYSTEM
• Check to see if there is a crack and damage in the
front and rear brake hose.
If leak, replace it with new one.
REAR BRAKE PADS
• Check the brake pads for wear.
• Replace the brake pads if either pad is worn to the
bottom of wear limit groove.
• Refer to page 16-7 for brake pad replacement.
FRONT BRAKE LEVER FREE PLAY
• Check the free play after pulling the lever.
BRAKE LEVER FREE PLAY : 10~20mm
REAR BRAKE PEDAL FREE PLAY
• Adjust the brake pedal free play at the end part of
pedal.
BRAKE PEDAL FREE PLAY : 10~20mm
