CYLINDER HEAD / VALVES
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
FOR CYLINDER HEAD
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR
VALV E SPRING COMPRESSOR

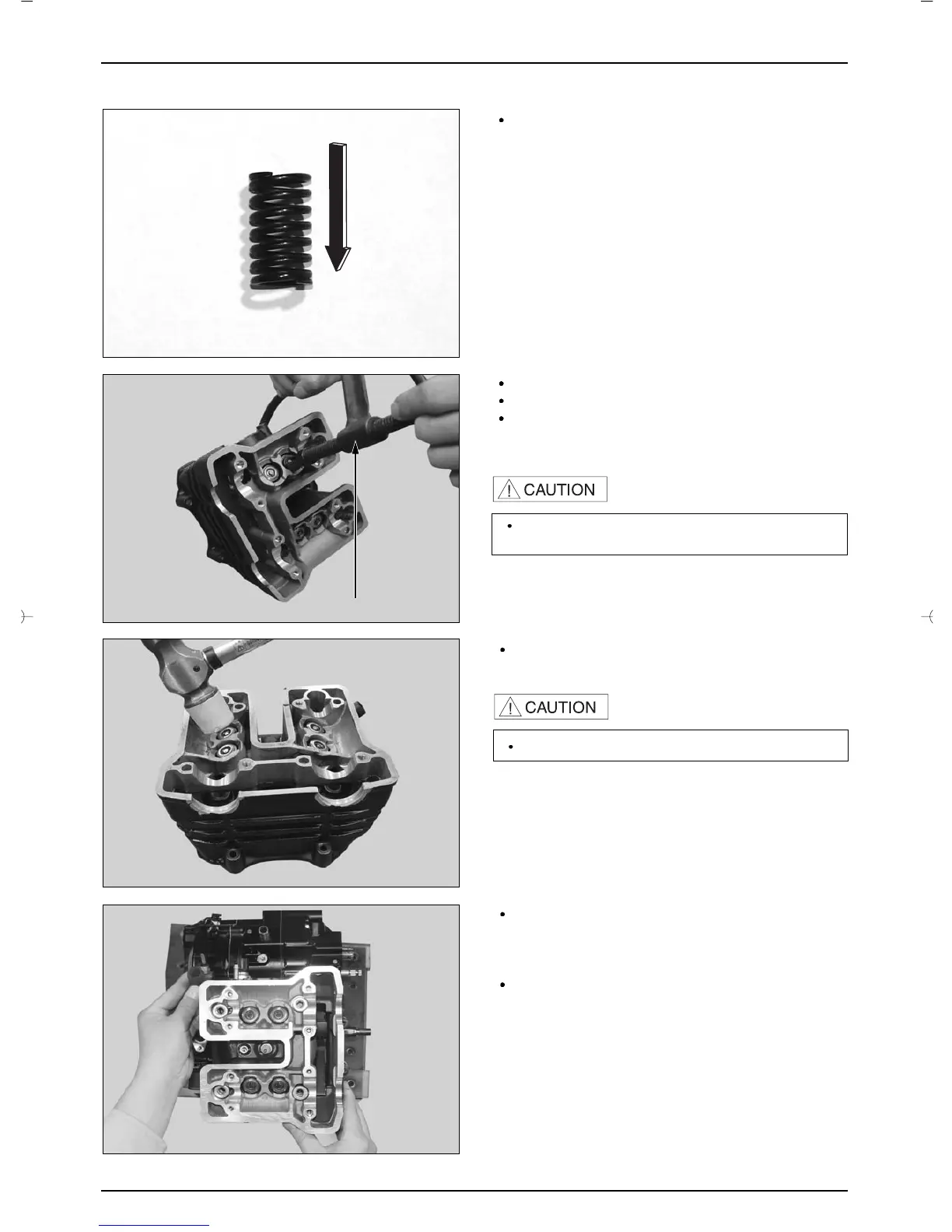

Install the valve springs with the narrow pitch forward to
cylinder head.
Install the spring retainer.
Using the valve spring compressor.
Install the valve cotters.
TOOL : VALVE SPRING COMPRESSOR
Do not compress the valve spring more than
necessary.
Install the cam chain tensioner, and assemble pivot
bolts.
TORQUE : 1.0 kgf
··
m
Install the spark plug.
TORQUE : 1.1 kgf
··
m
Take necessary precautions not to damage the valve.
Tap the valve stems gently 2~3times with a soft
hammer to firmly seat the cotters.
